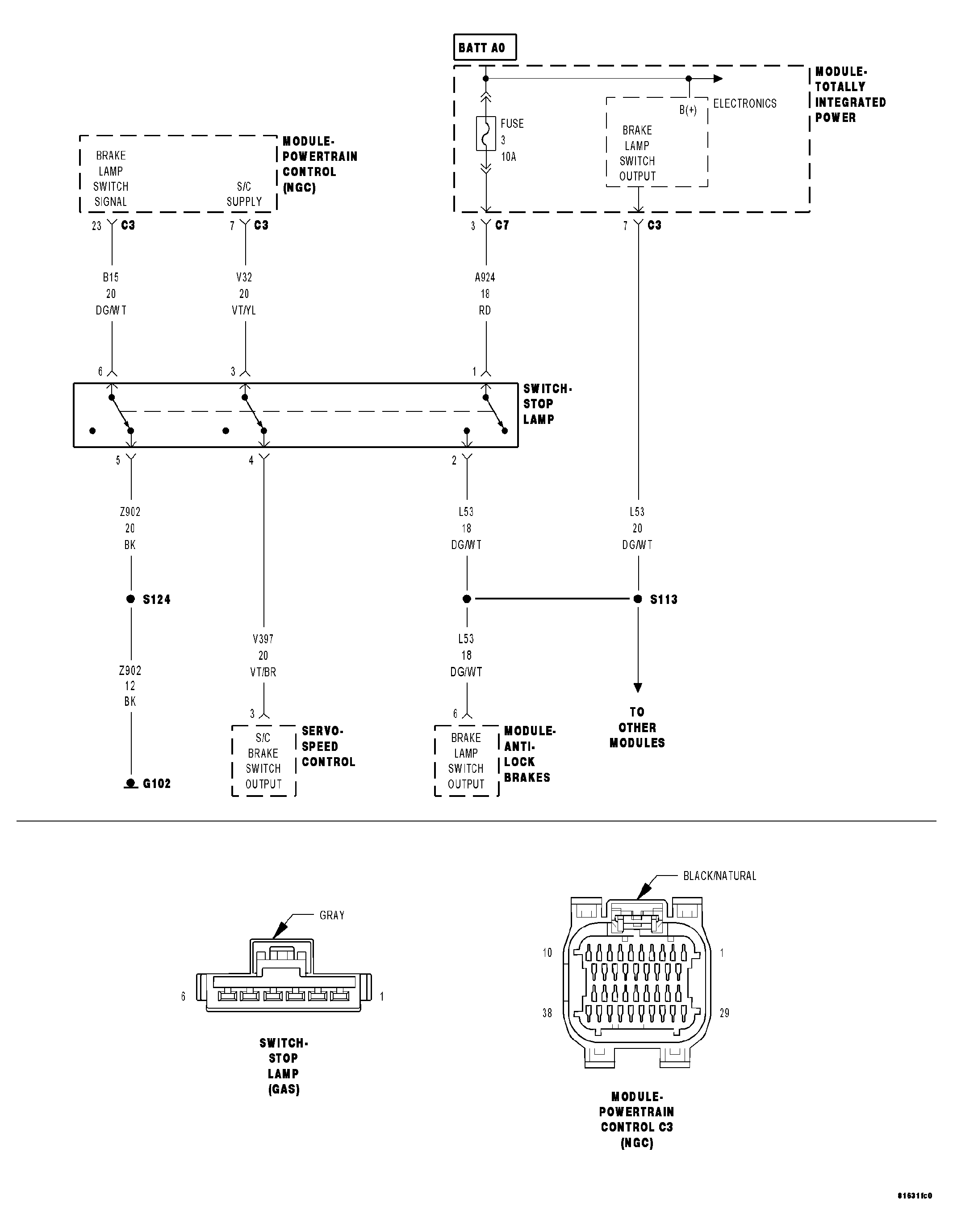

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> 2.4L Engine - DTCS PO509 To P0850 >> Diagnosis And Testing >> P0572-Brake Switch #1 Circuit Low >> Circuit Schematic
