*No Crank Condition: Notes

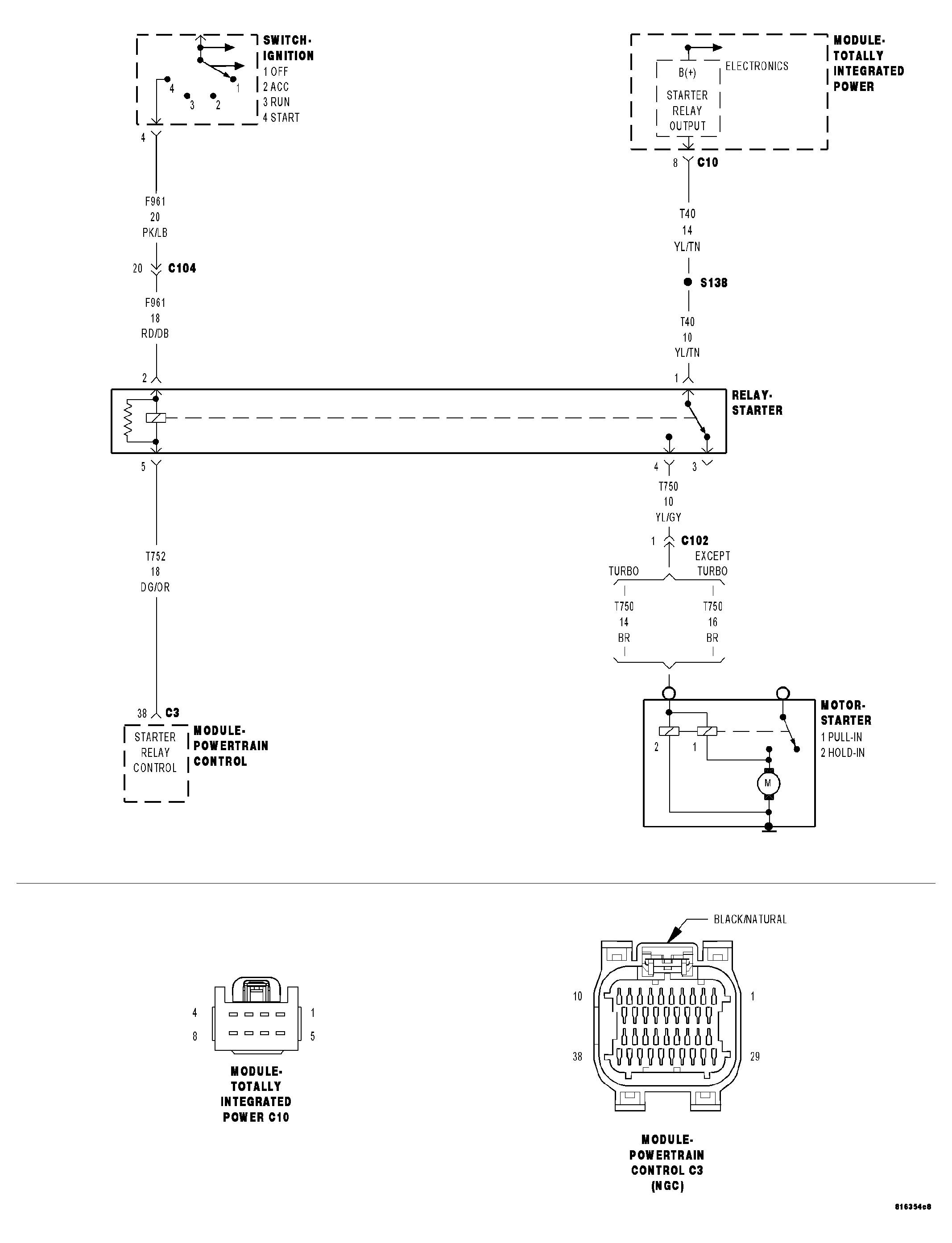

Fig 1: STARTER SYSTEM CIRCUIT SCHEMATIC
GC0041768Courtesy of DAIMLERCHRYSLER CORP.
