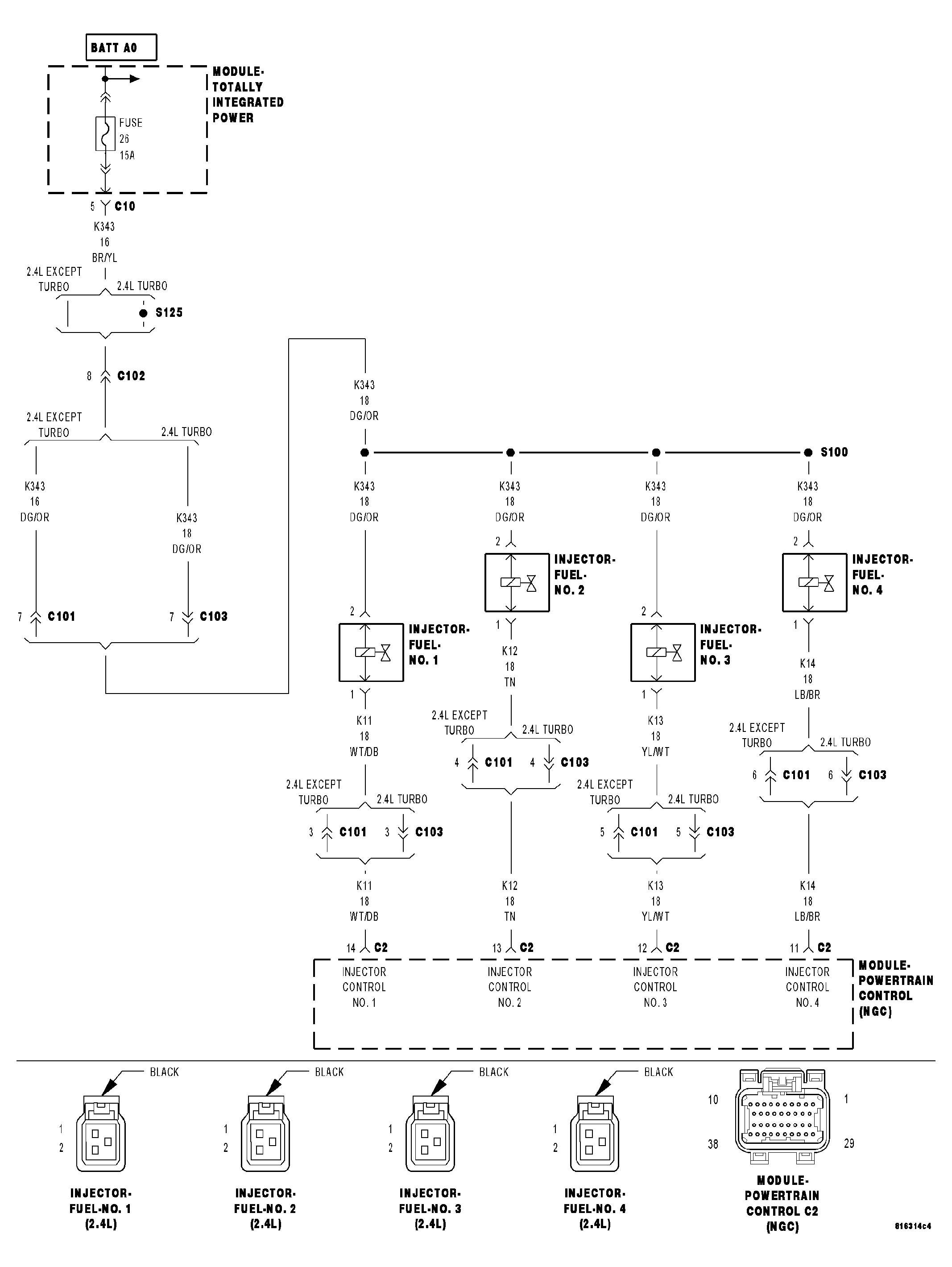

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> 2.4L Engine - DTCS P0128 To P0325 >> Diagnosis And Testing >> P0201-Fuel Injector 1 Circuit >> Circuit Schematic
