Circuit Schematic

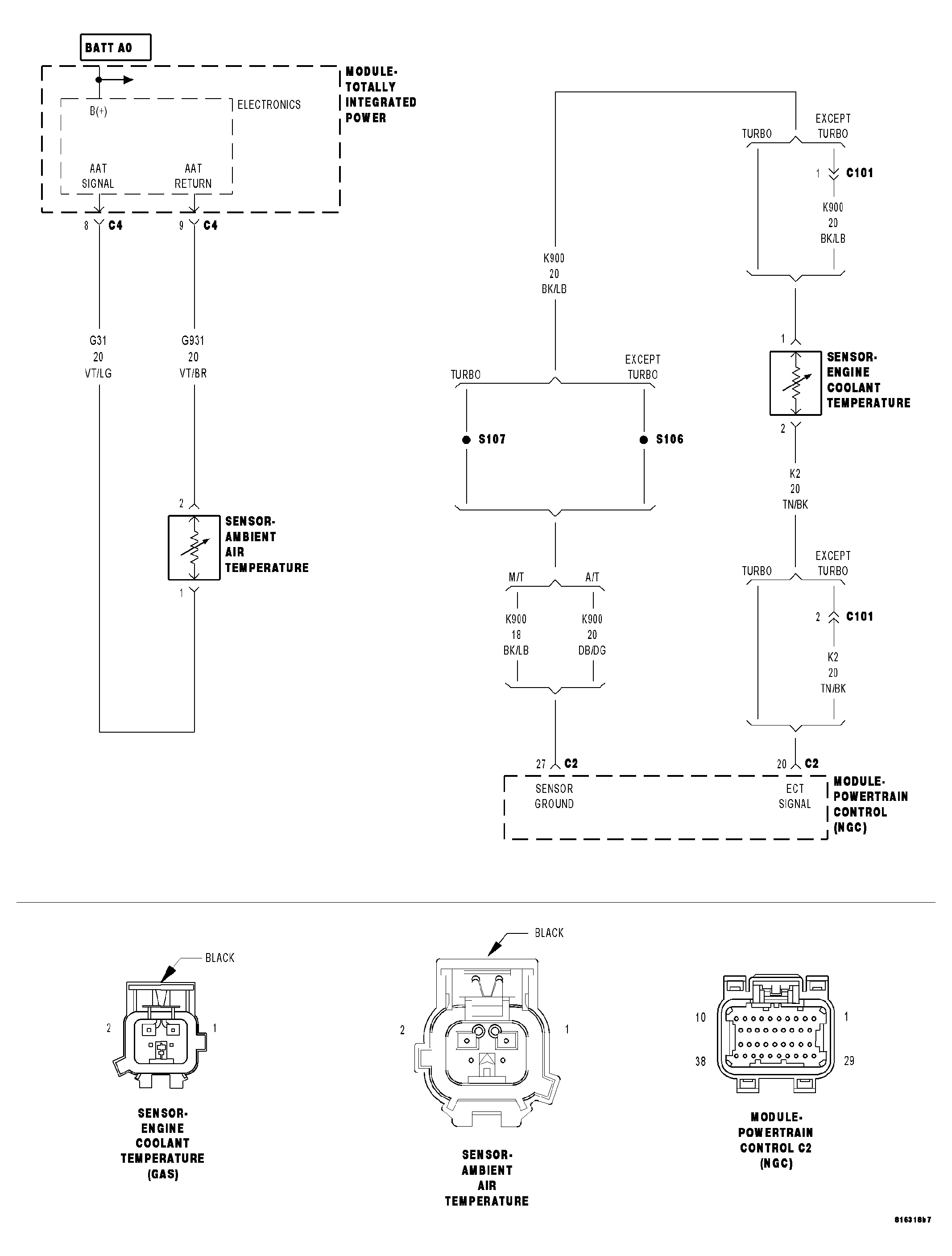

Fig 1: AMBIENT AIR TEMP. SENSOR AND ENGINE COOLANT TEMP. SENSOR CIRCUITS SCHEMATIC

GC0041586

Courtesy of DAIMLERCHRYSLER CORP.
