*Checking Pcm Power And Ground Circuits: Notes

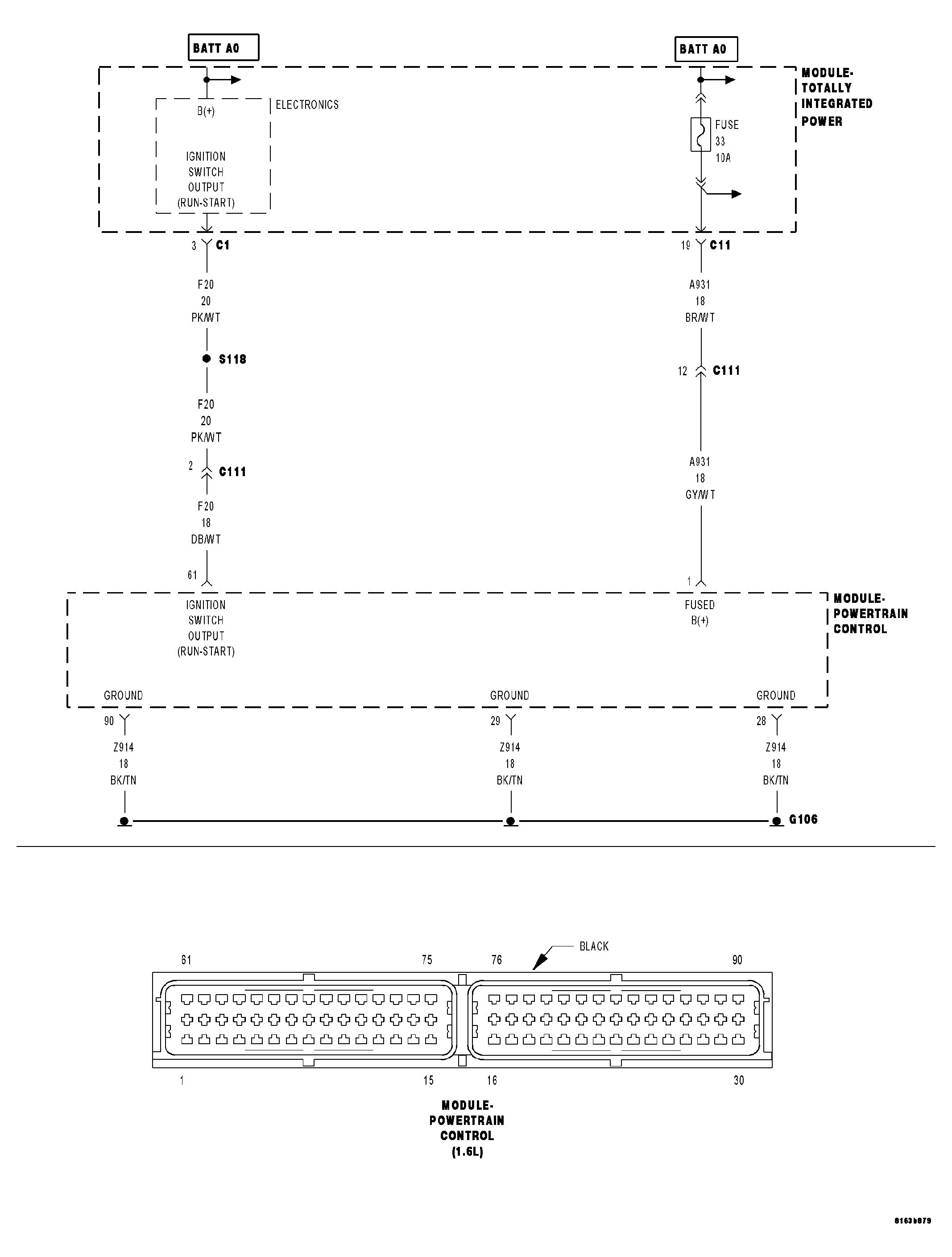

Fig 1: PCM POWER AND GROUND CIRCUITS SCHEMATIC

GC0042051

Courtesy of DAIMLERCHRYSLER CORP.
