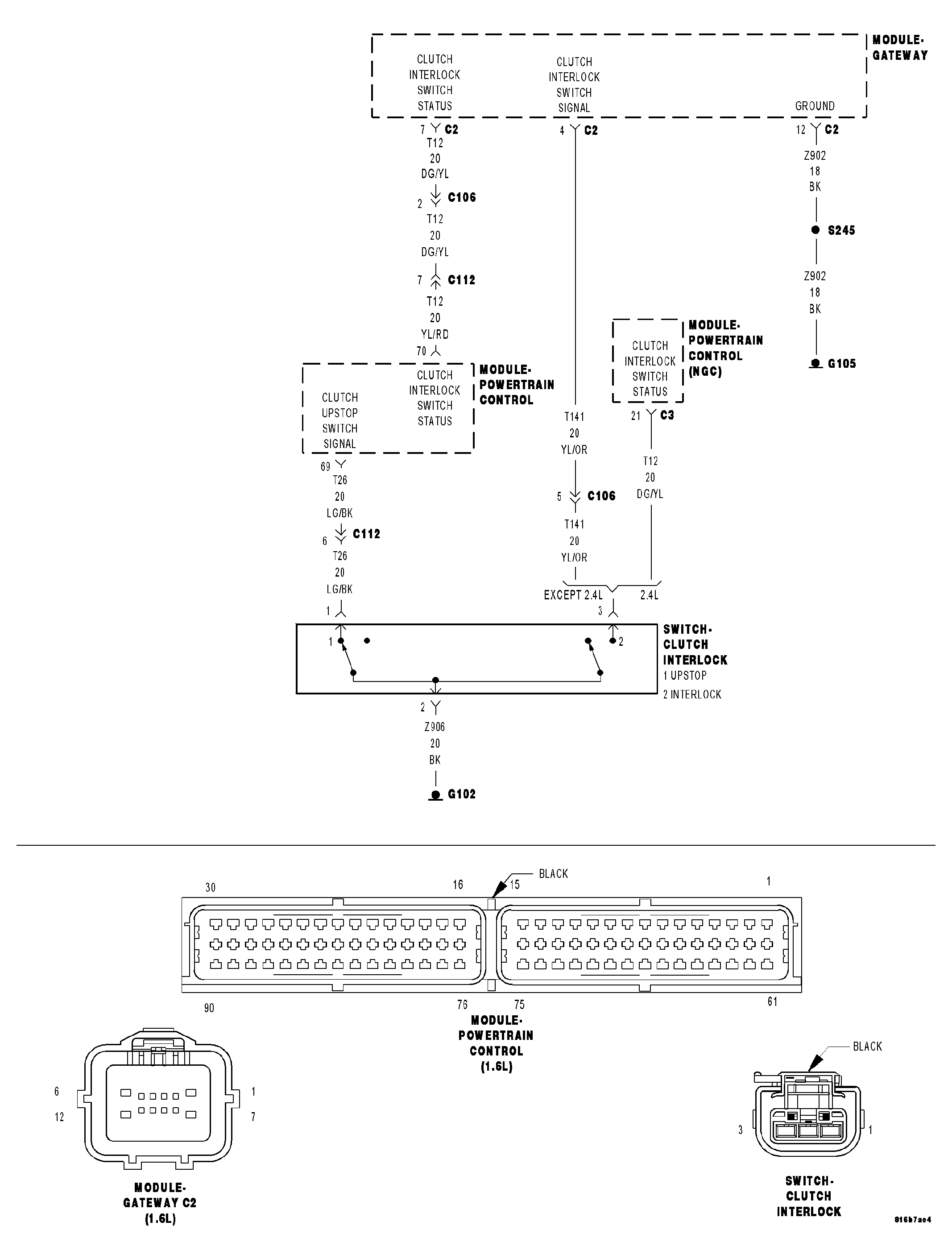

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> 1.6L Engine - DTCS P127D To P2135 >> Diagnosis And Testing >> P170E-Clutch Pedal Circuit High >> Circuit Schematic
