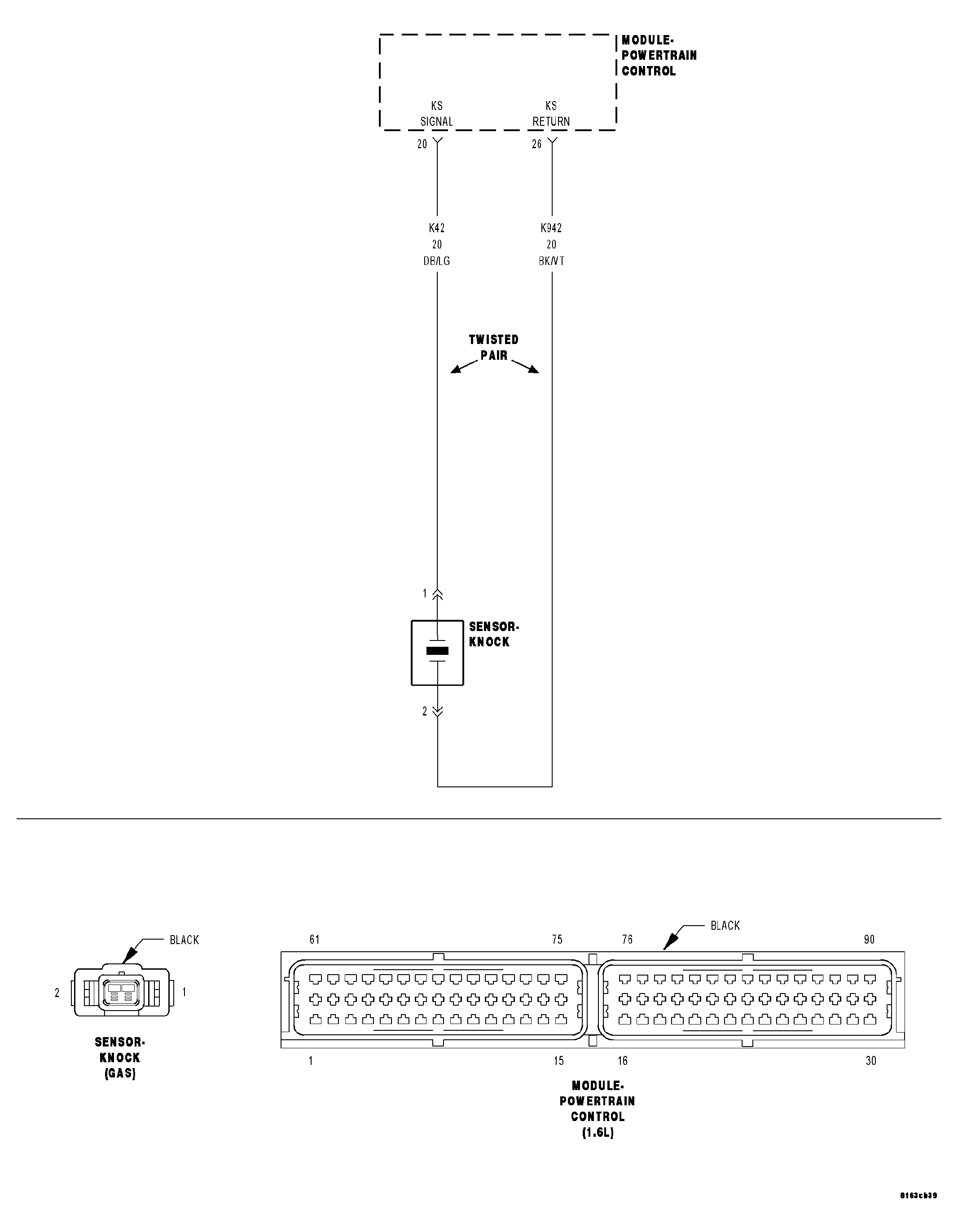

Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> 1.6L Engine - DTCS P0303 To P0629 >> Diagnosis And Testing >> P0325-Knock Sensor #1 Circuit >> Circuit Schematic
