Description - Swirl Valve Actuator Solenoid

The swirl actuator solenoid is mounted next to the coolant recovery pressure container behind the wastegate solenoid. See Fig 1.

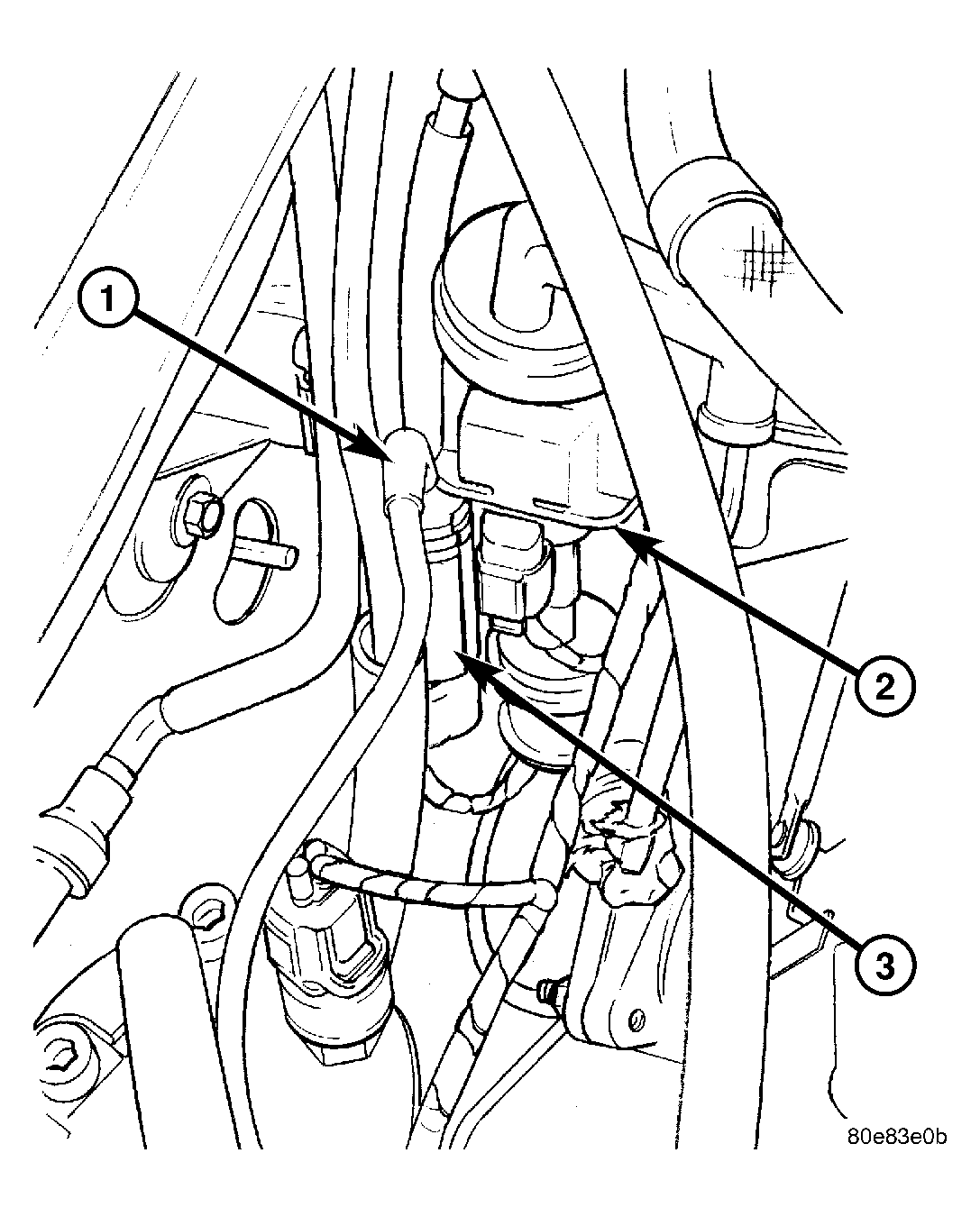

Fig 1: SWIRL ACTUATOR SOLENOID

Courtesy of DAIMLERCHRYSLER CORP.
