Description - Intake Manifold Swirl Valve

The intake manifold swirl valve is located in the bottom of the intake manifold. See Fig 1.

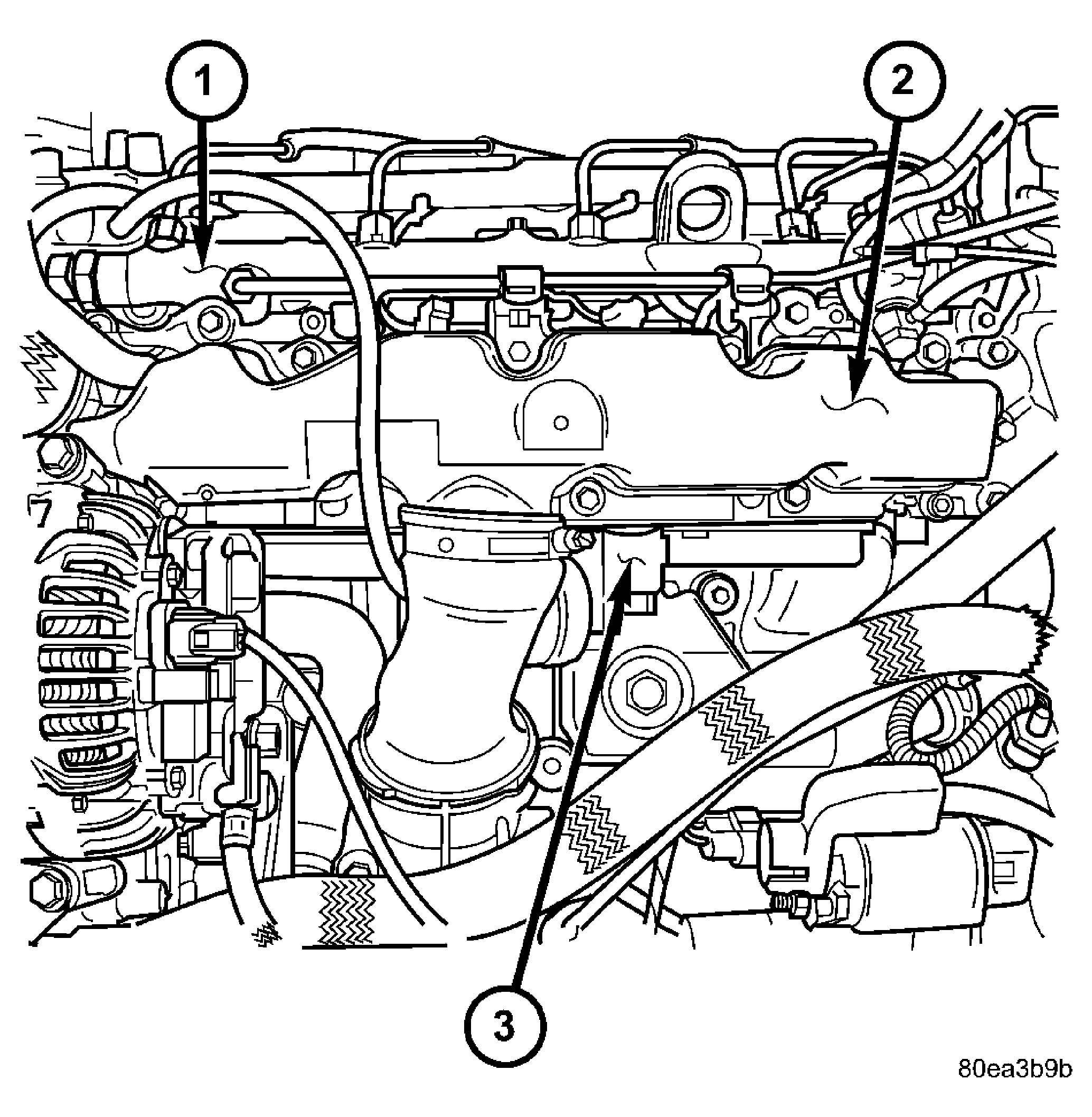

Fig 1: INTAKE MANIFOLD SWIRL VALVE LOCATION

Courtesy of DAIMLERCHRYSLER CORP.
