Fuel Tank Filler Tube: Installation

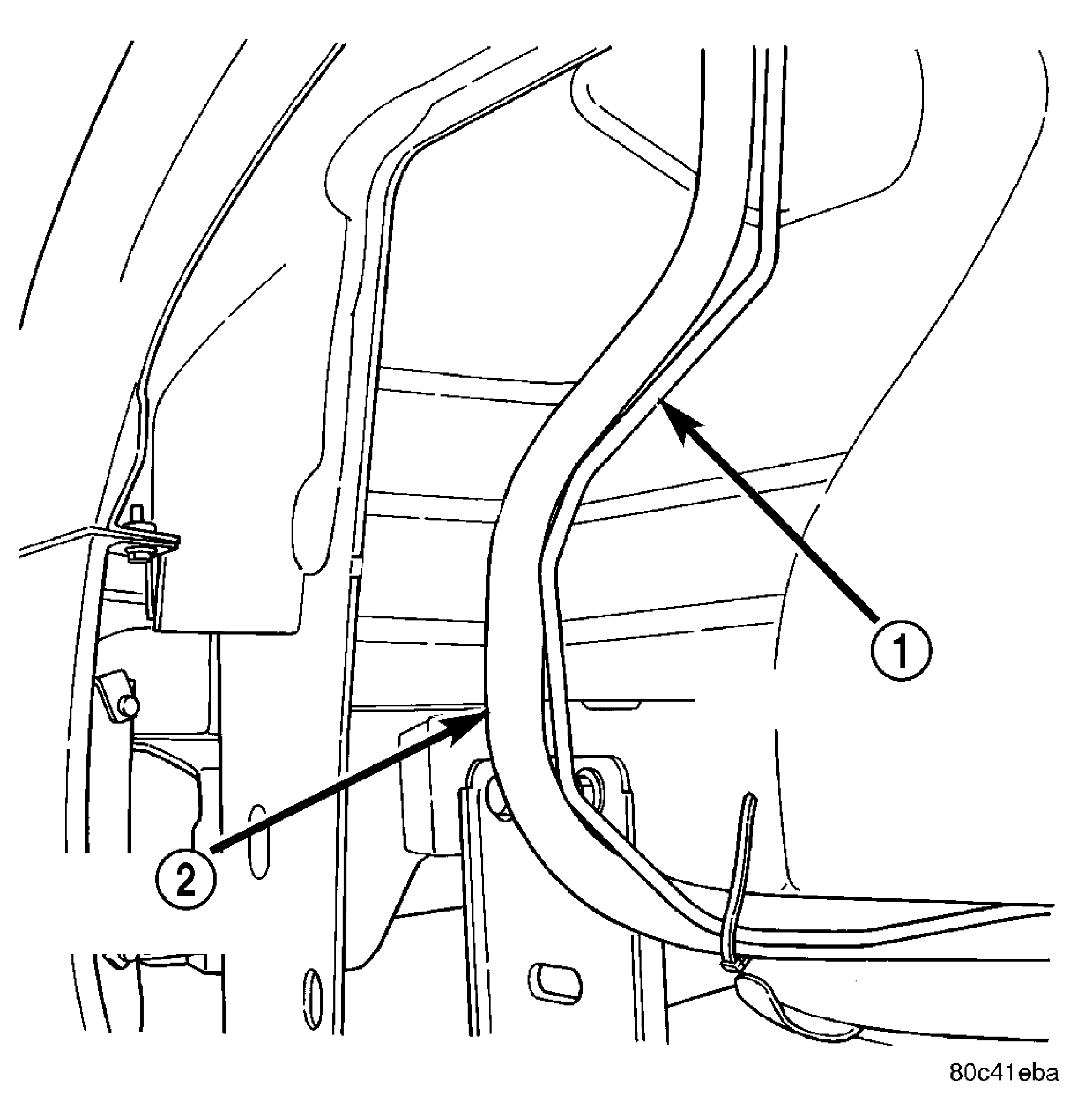

Fig 1: Filler Tube

GC0021651

Courtesy of DAIMLERCHRYSLER CORP.

1 - VAPOR RECIRCULATION TUBE

2 - FILLER TUBE

Install fuel filler tube (2). Connect fuel filler tube hose to fuel tank neck and tighten clamp to 4.1 N.m (38 ins. lbs.).

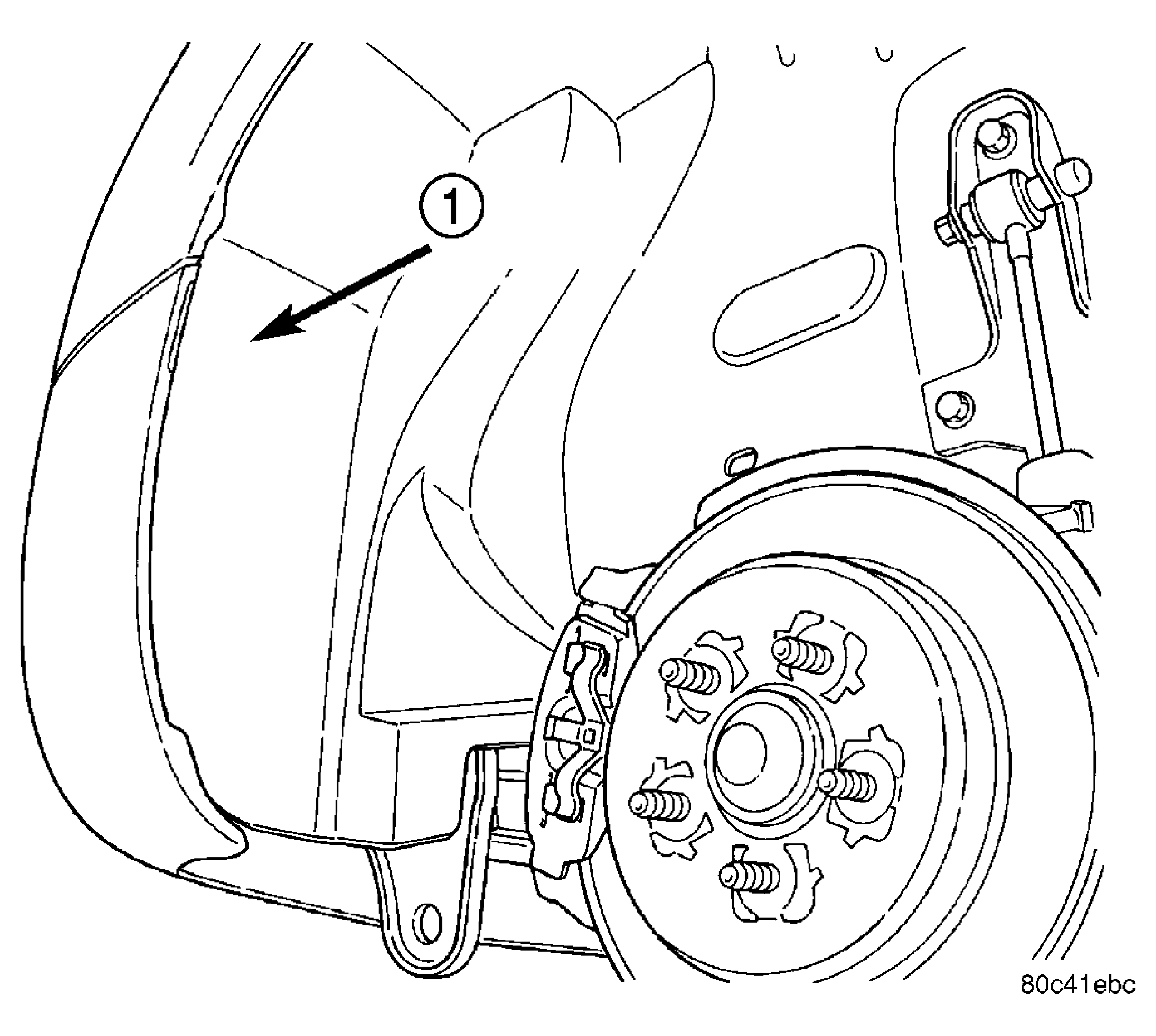

Fig 2: Slash Shield
Courtesy of DAIMLERCHRYSLER CORP.

1 - SPLASH SHIELD
Install the rear half of the inner splash shield.
Lower vehicle.

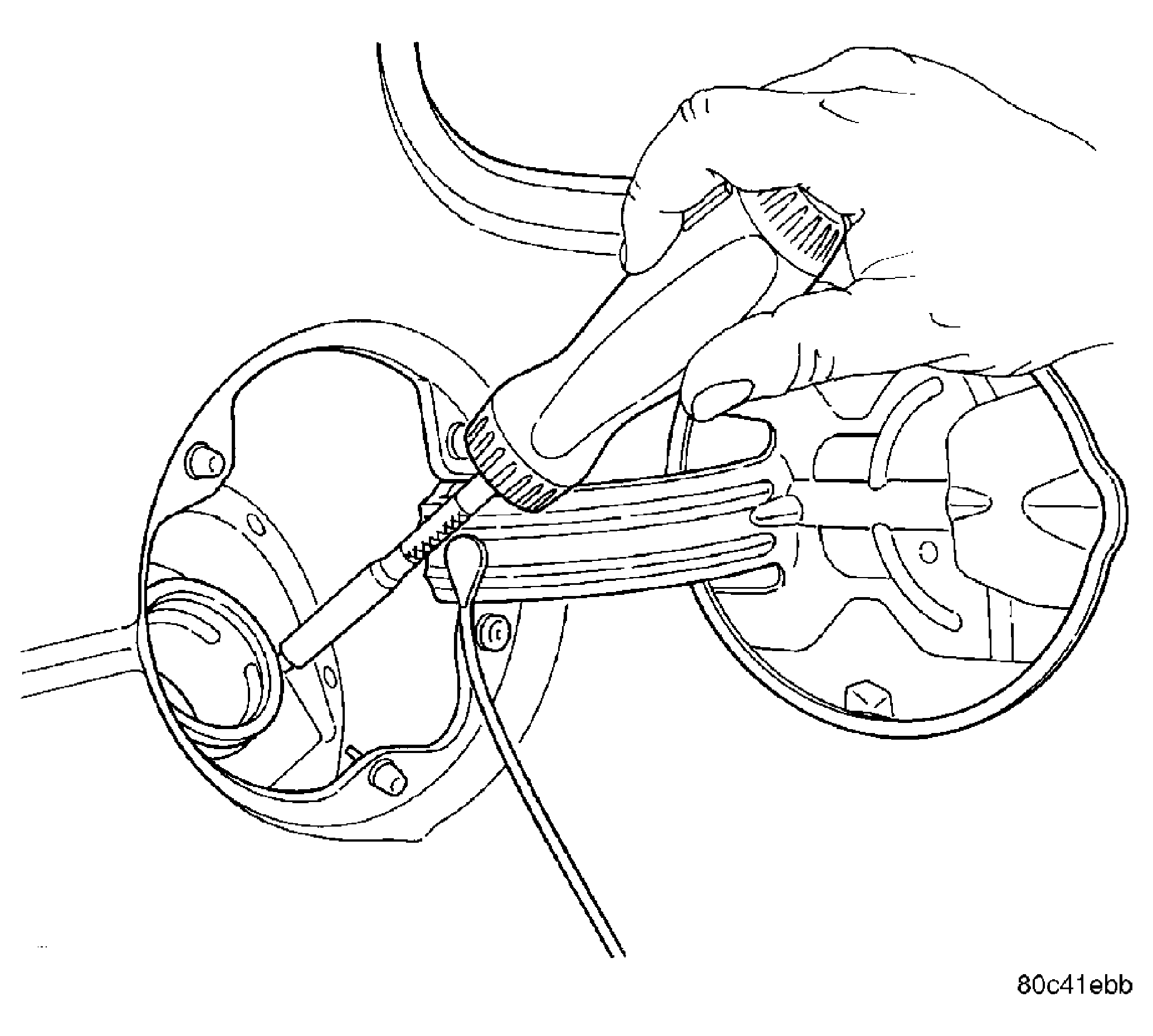

Fig 3: Fuel Filler Cap
Courtesy of DAIMLERCHRYSLER CORP.

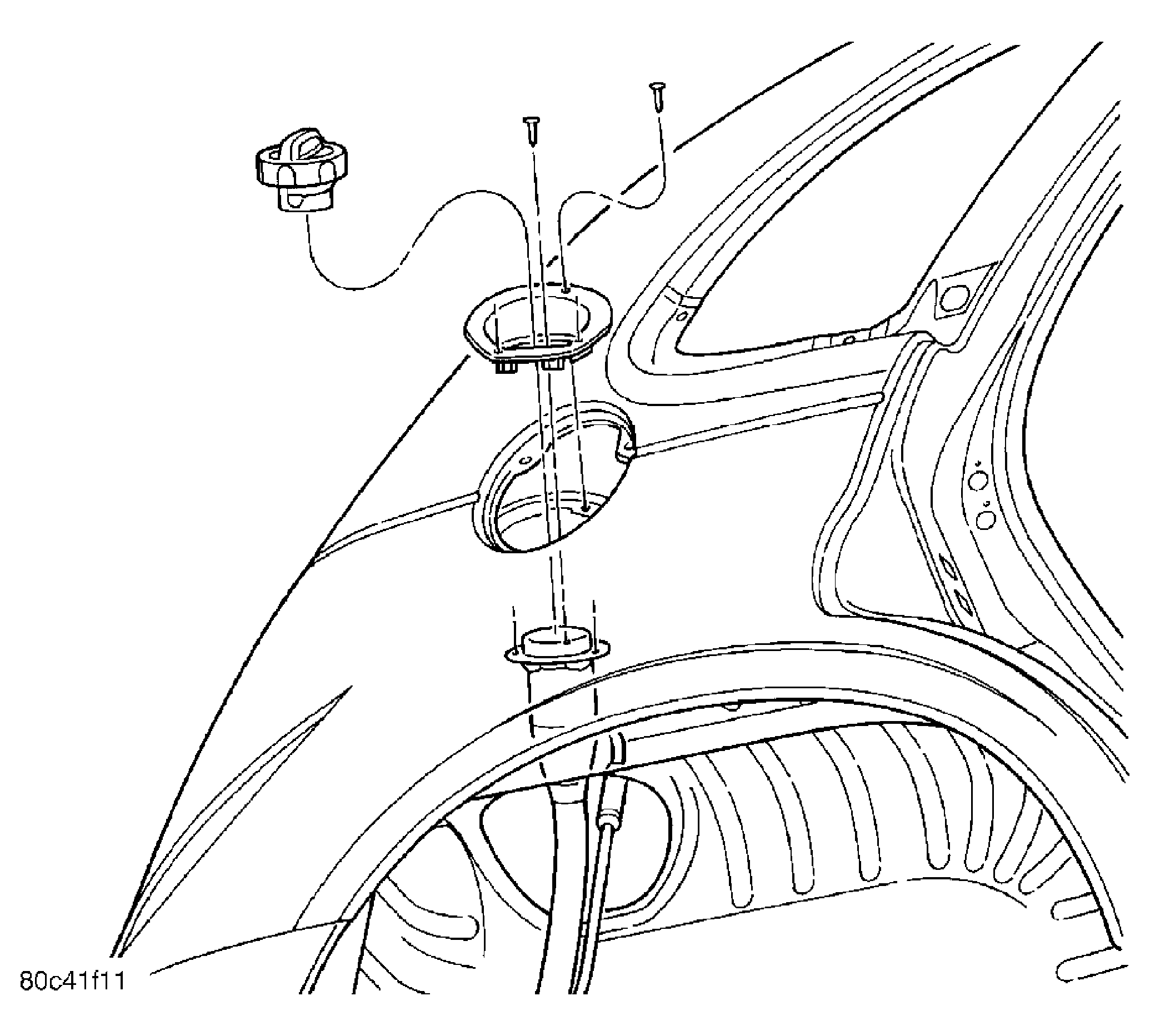

Fig 4: Fuel Filler Neck Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.
Install fuel filler neck screws and tighten to 2.7 N.m (24 ins. lbs.).
Install fuel filler tube cap.
Install the negative battery cable.
Install the air cleaner lid and makeup air hose.
