2.4L DOHC Engine: Strut-Torque: Installation: Upper

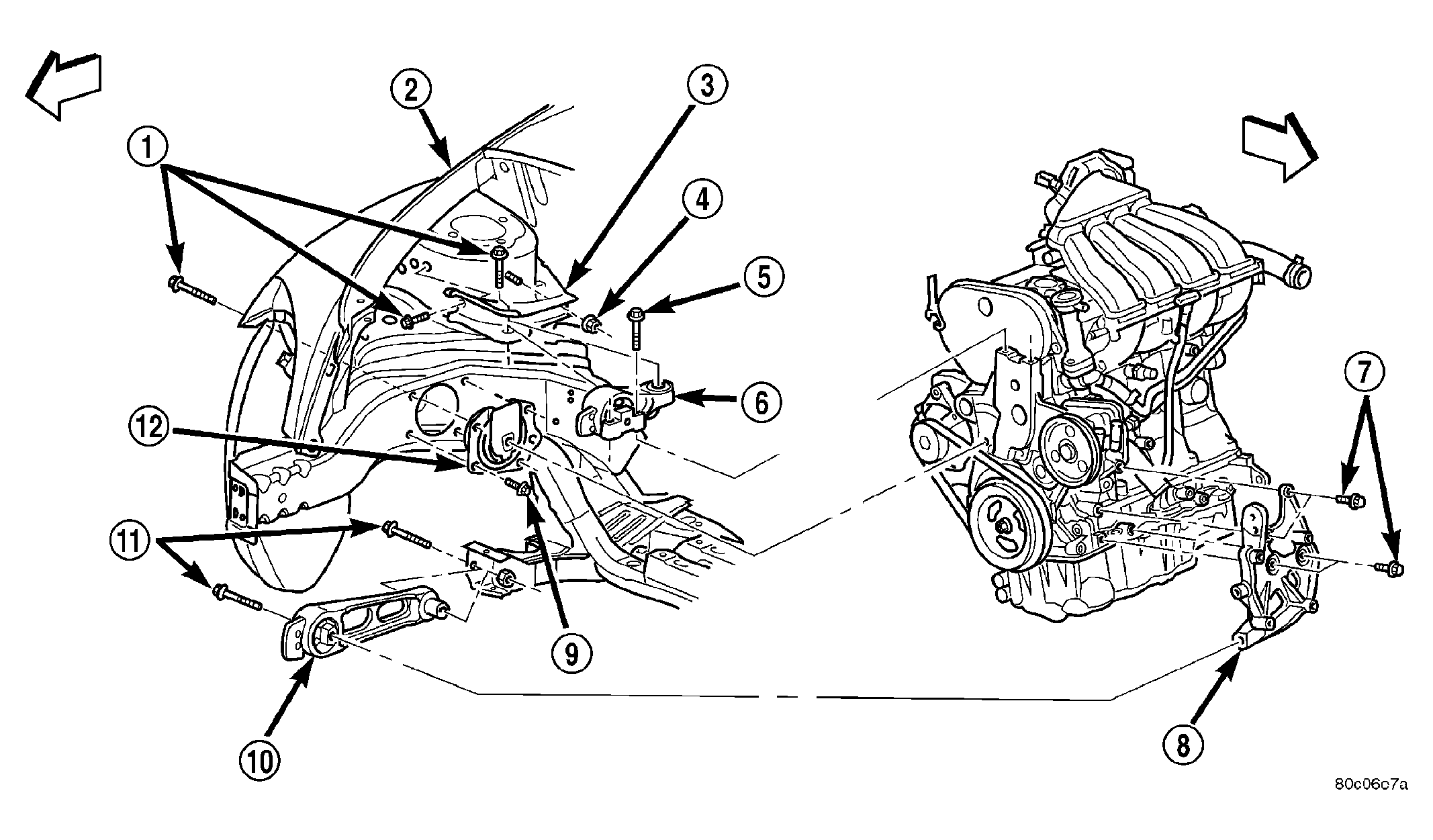

Fig 1: Engine Mounting - Right Side

Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLT

2 - RIGHT FENDER

3 - UPPER TORQUE STRUT BRACKET

4 - NUT

5 - BOLT

6 - UPPER TORQUE STRUT

7 - BOLT

8 - LOWER TORQUE STRUT BRACKET

9 - BOLT

10 - LOWER TORQUE STRUT

11 - BOLT

12 - RIGHT ENGINE MOUNT

1. Position the upper torque strut (6) into mounting location. See Fig 1.
2. Move torque strut aside (towards right fender) and install timing belt front upper cover (if A/C equipped).
3. Install the torque strut mounting bolts and perform the torque strut adjustment procedure (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - ADJUSTMENTS) .
