Installation - Lower

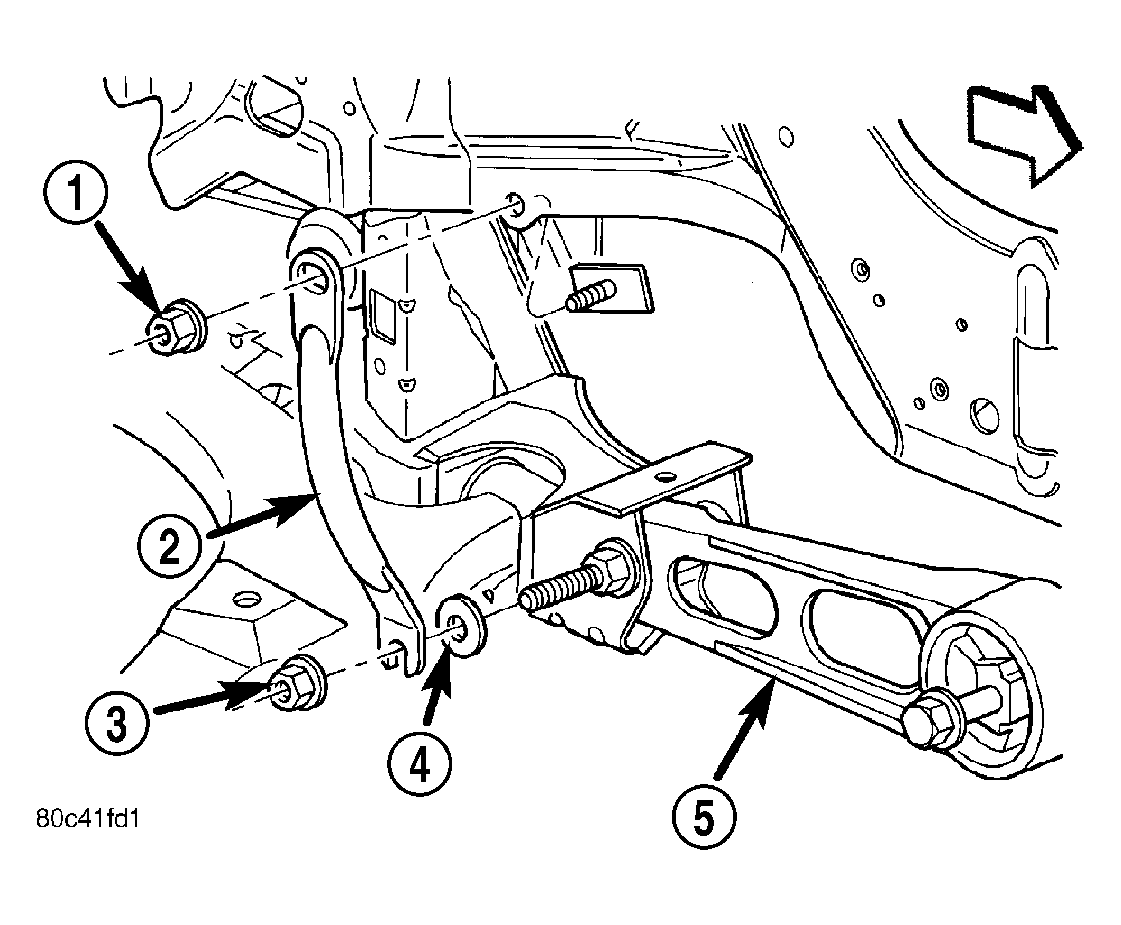

Fig 1: View Of Pencil Strut Mounting

Courtesy of DAIMLERCHRYSLER CORP.

1 - NUT

2 - PENCIL STRUT

3 - NUT

4 - FLAT WASHER

5 - LOWER TORQUE STRUT

Position lower torque strut (5) into mounting locations.
Install mounting bolts and perform torque strut adjustment procedure (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - ADJUSTMENTS) .

Install pencil strut and tighten nuts to 58 N.m (43 ft. lbs.). See Fig 1.

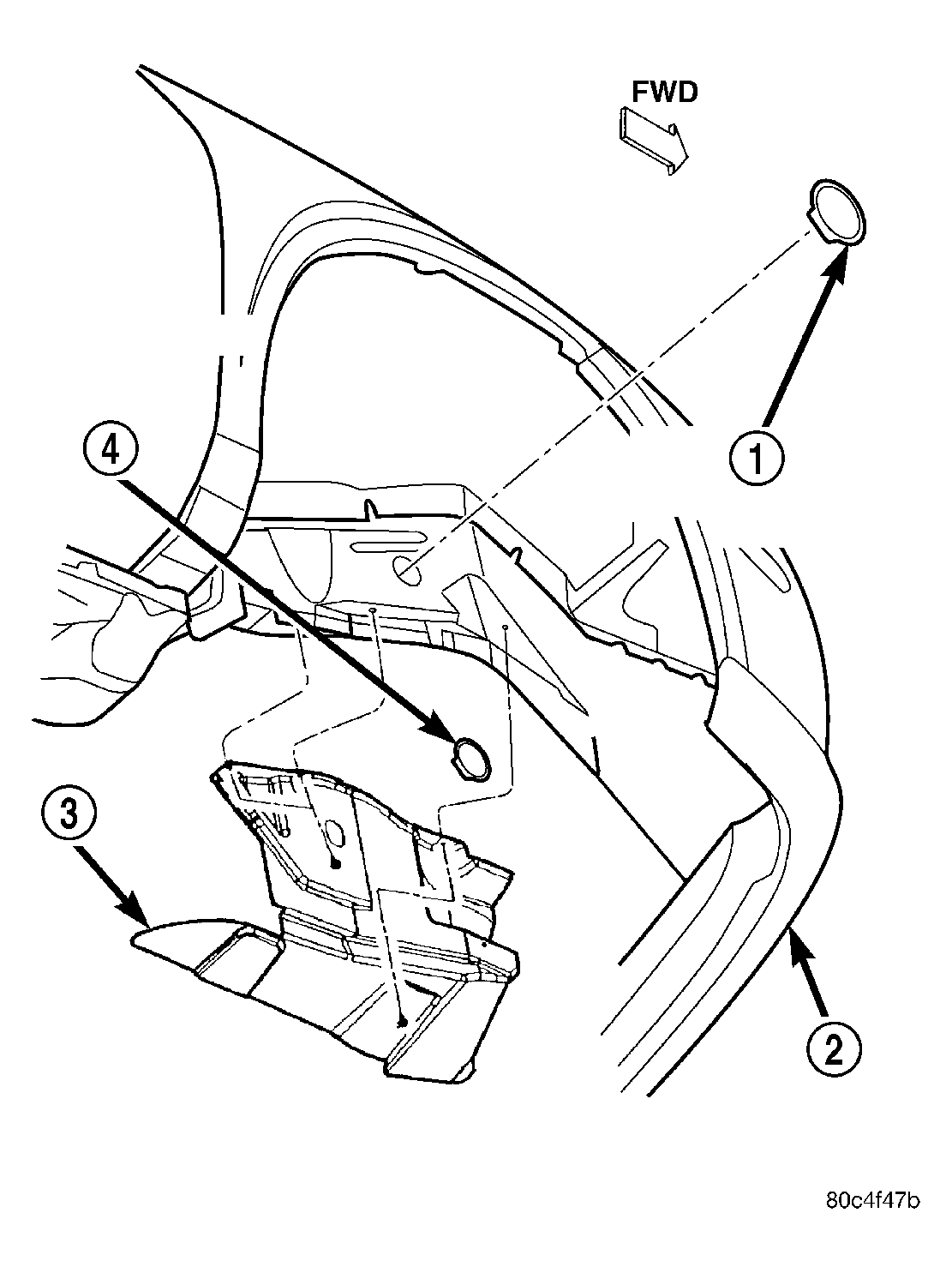

Fig 2: Splash Shield

Courtesy of DAIMLERCHRYSLER CORP.

1 - RIGHT MOUNT BOLT ACCESS PLUG

2 - FASCIA

3 - SPLASH SHIELD

4 - CRANKSHAFT BOLT ACCESS PLUG
