Sensor/Switch-Oil Pressure: Installation

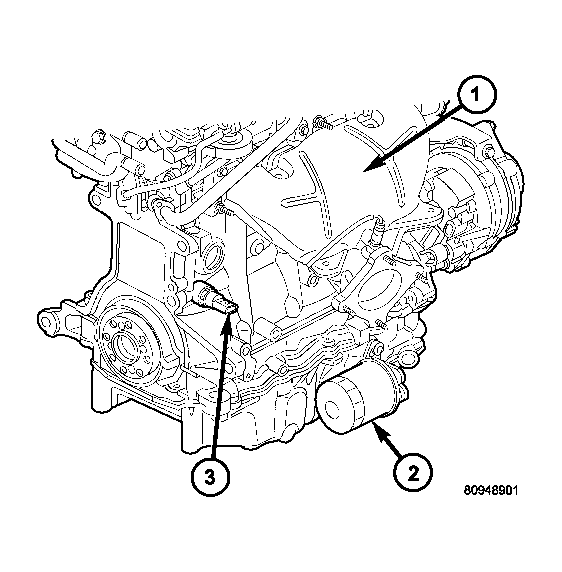

Fig 1: Engine Oil Pressure Switch

Courtesy of DAIMLERCHRYSLER CORP.

1 - EXHAUST MANIFOLD HEAT SHEILD

2 - OIL FILTER

3 - OIL PRESSURE SWITCH

1. Install oil pressure switch (3) and connect electrical connector. See Figure.
2. Lower vehicle.
3. Start engine and allow to run a minimum of 2 minutes.
4. Shut engine off and check engine oil level. Adjust level as necessary.
