Seal(S)-Camshaft Oil: Removal

Fig 1: Camshaft Sprocket - Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - CAMSHAFT SPROCKET HOLDER 6847

Remove timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - REMOVAL) .
Hold each camshaft sprocket with Camshaft Sprocket Holder 6847 (1) while removing center bolt. See Fig 1.
Remove camshaft sprockets.
Remove rear timing belt cover (Refer to ENGINE/VALVE TIMING/TIMING BELT COVER(S) - REMOVAL) .

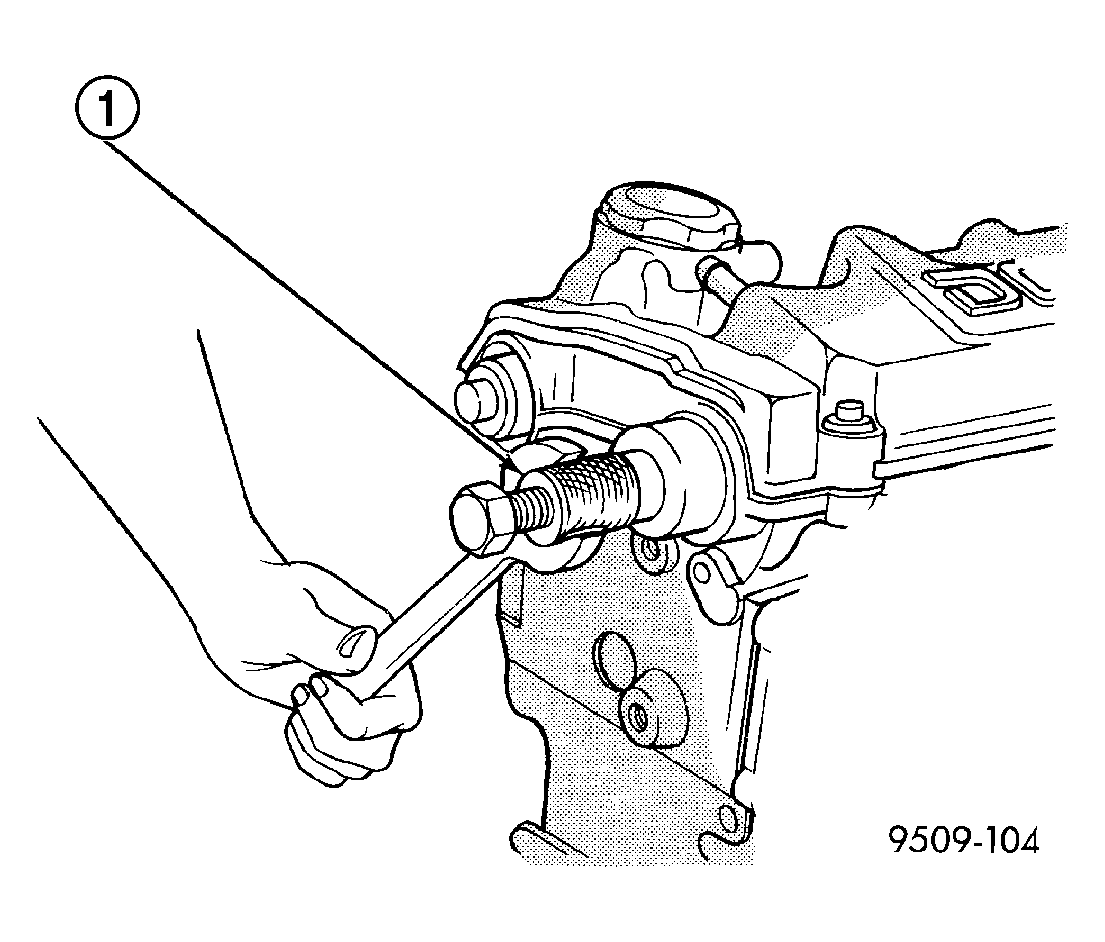

Fig 2: Camshaft Oil Seal - Removal With C-4679A
Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL C-4679
Remove camshaft seal using Camshaft Seal Remover C-4679A (1). See Fig 2.

CAUTION: Do not nick shaft seal surface or seal bore.
