2.4L DOHC Engine: Pump-Oil: Disassembly

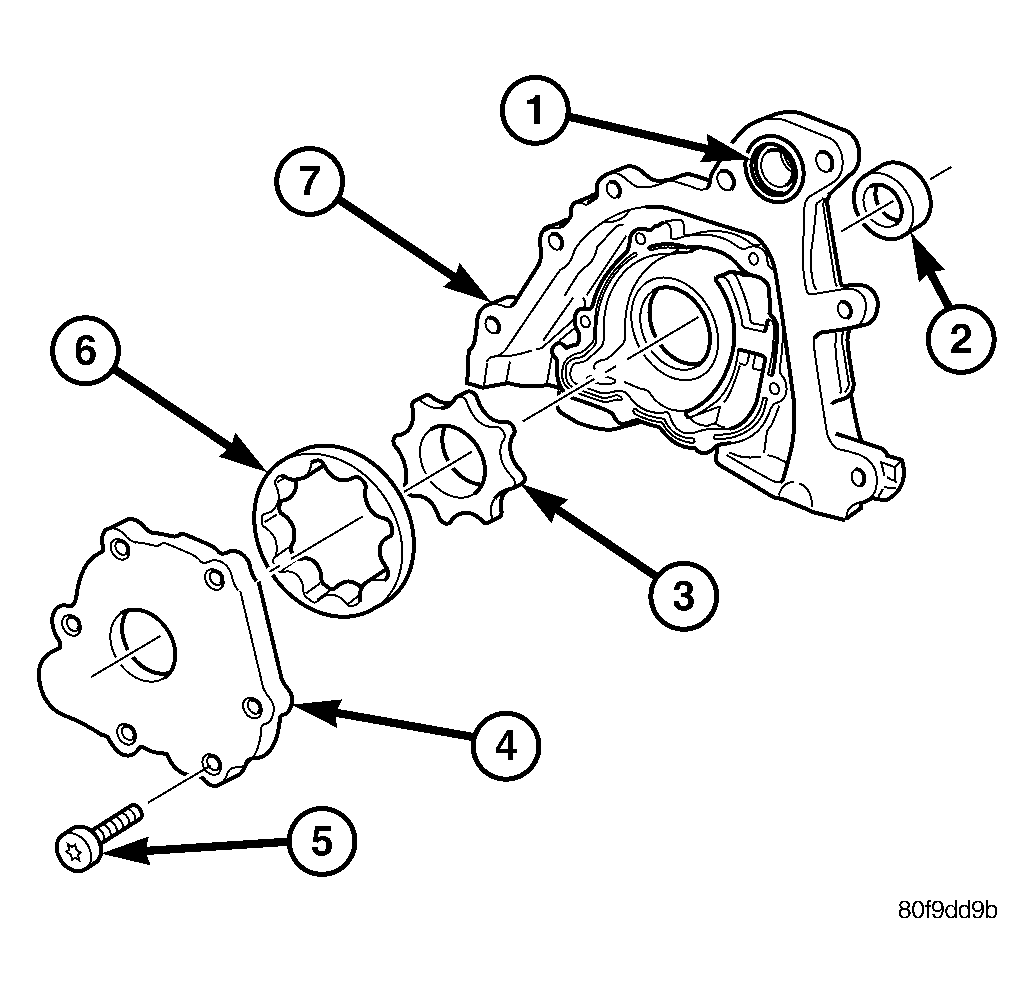

Fig 1: Oil Pump

Courtesy of DAIMLERCHRYSLER CORP.

1 - O-RING

2 - FRONT CRANKSHAFT SEAL

3 - INNER ROTOR

4 - OIL PUMP COVER

5 - FASTENER

6 - OUTER ROTOR

7 - OIL PUMP BODY

1. Remove oil pump cover fasteners (5), and lift off cover (4). See Fig 1.
2. Remove pump rotors (3,6). See Fig 1.
3. Wash all parts in a suitable solvent and inspect carefully for damage or wear.
