2.4L DOHC Engine: Plate-Flex: Removal

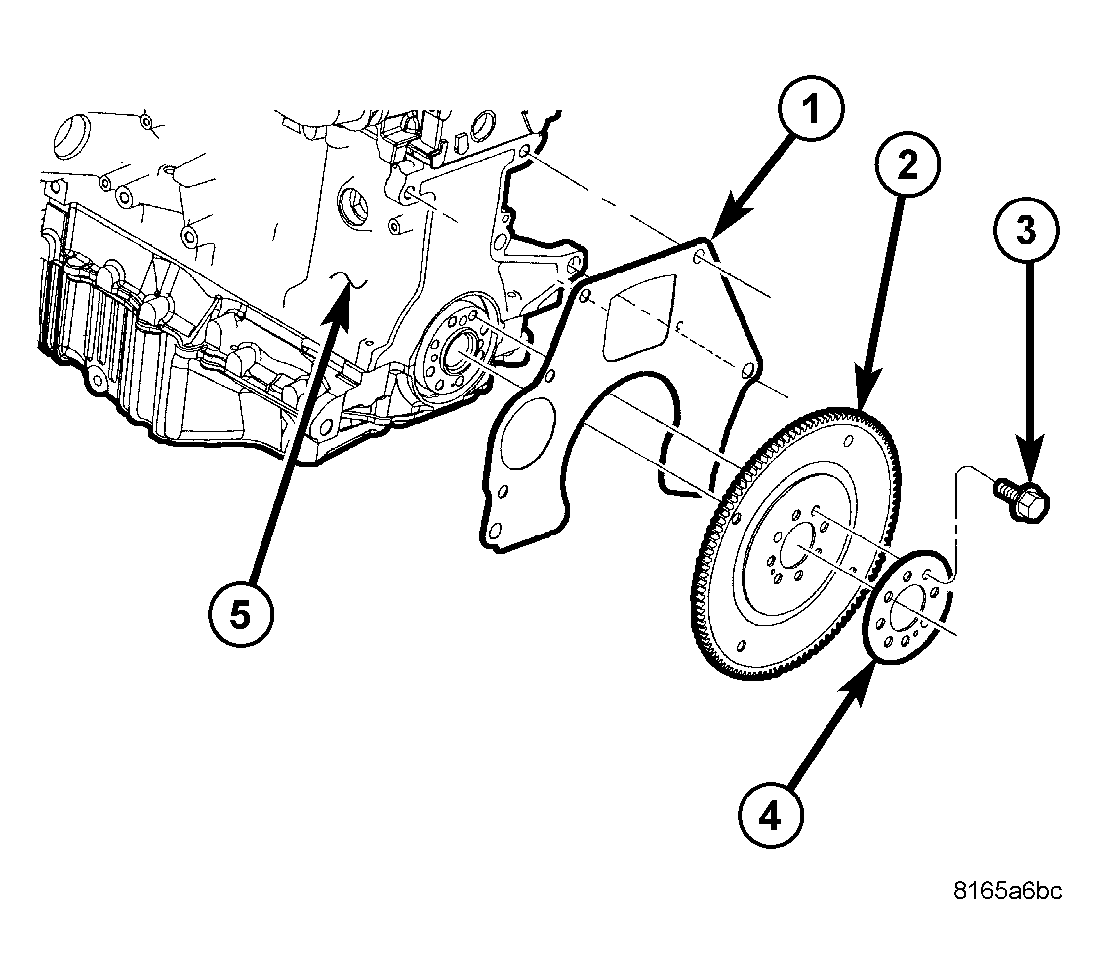

Fig 1: FLEX PLATE
GC0042824Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove transaxle
  2. Remove flex plate retaining bolts (3).
  3. Remove shim (4) and flex plate (2).
