2.4L DOHC Engine: Plate-Flex: Installation

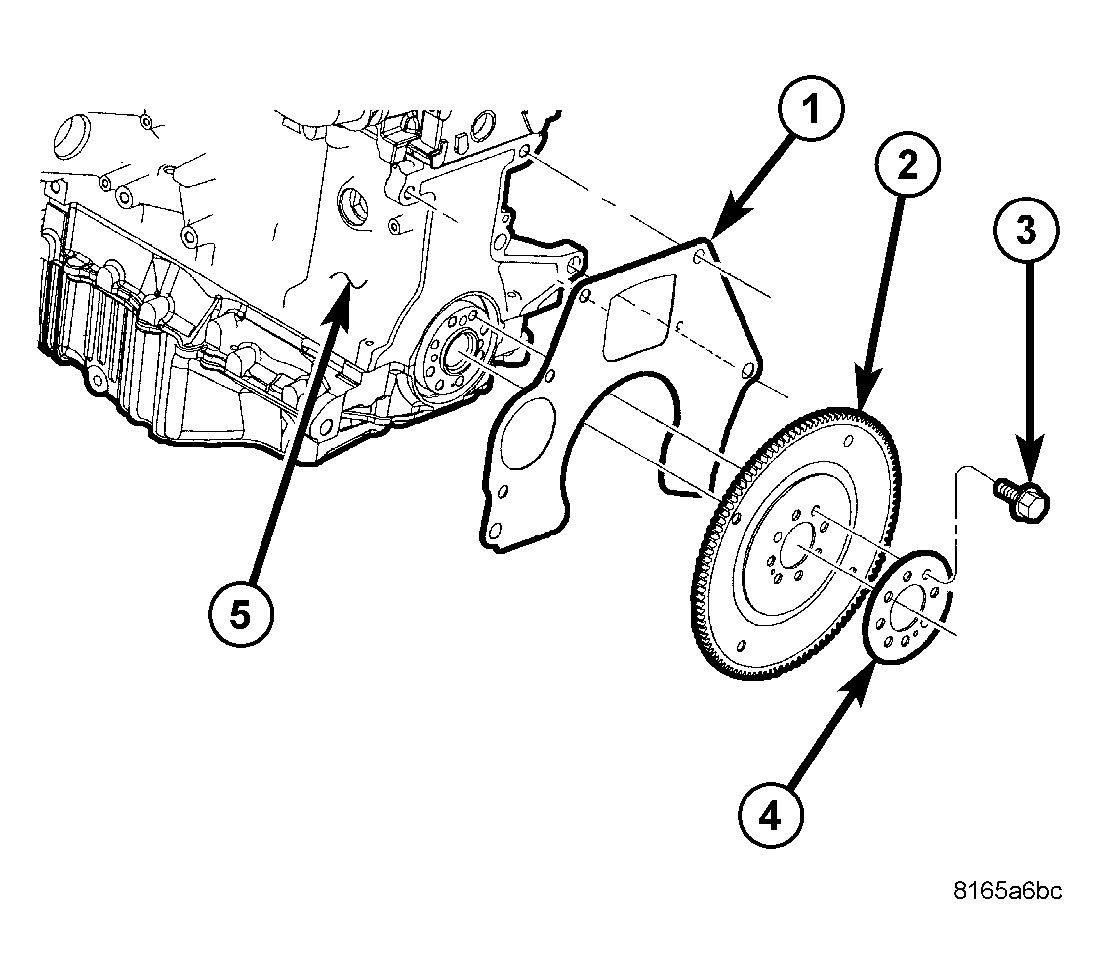

Fig 1: FLEX PLATE
GC0042827Courtesy of DAIMLERCHRYSLER CORP.
  1. Install flex plate (2) and shim (4).
  2. Install bolts (3) and torque bolts to 95 N.m (70 ft. lbs.).
  3. Install transaxle.
