2.4L DOHC Engine: Mount-Right: Removal

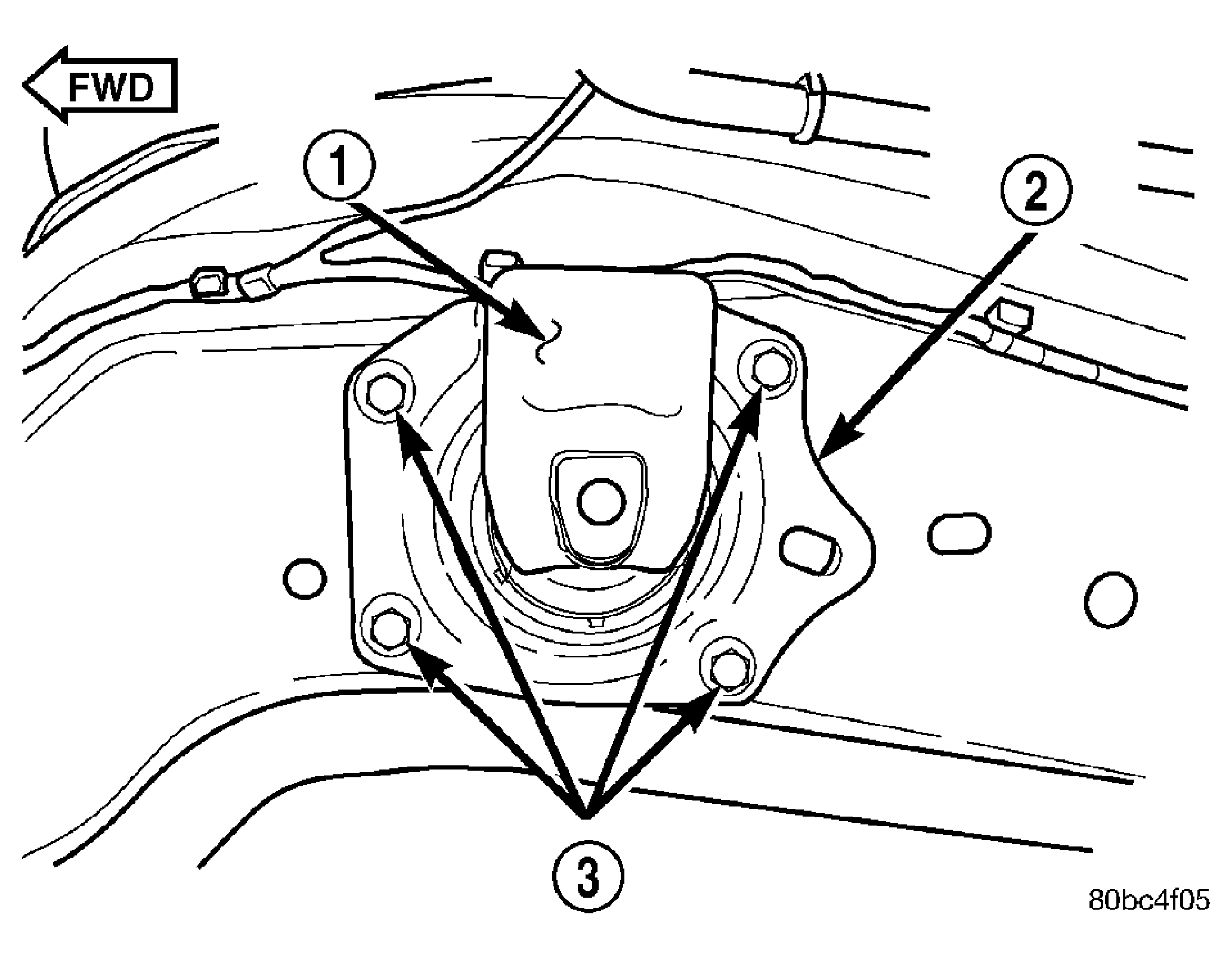

Fig 1: Engine Mount-Right

Courtesy of DAIMLERCHRYSLER CORP.

1 - SNUBBER PAD

2 - RIGHT ENGINE MOUNT

3 - BOLTS

1. Remove the engine assembly for the required clearance to access the engine mount (Refer to ENGINE - REMOVAL) .
   NOTE: The right engine mount attaching holes are slightly oversize to compensate for manufacturing tolerances. The mount has been set at the manufacturing plant for proper powertrain alignment. Therefore, it is necessary to mark the position of the mount before the attaching bolts (3) are loosened.
2. Using a permanent ink marker or equivalent, mark the position of engine mount (2) to the body frame rail.
3. Remove bolts (3) attaching mount to body. See Fig 1.
4. Remove mount (2).
