2.4L DOHC Engine: Mount-Right: Installation

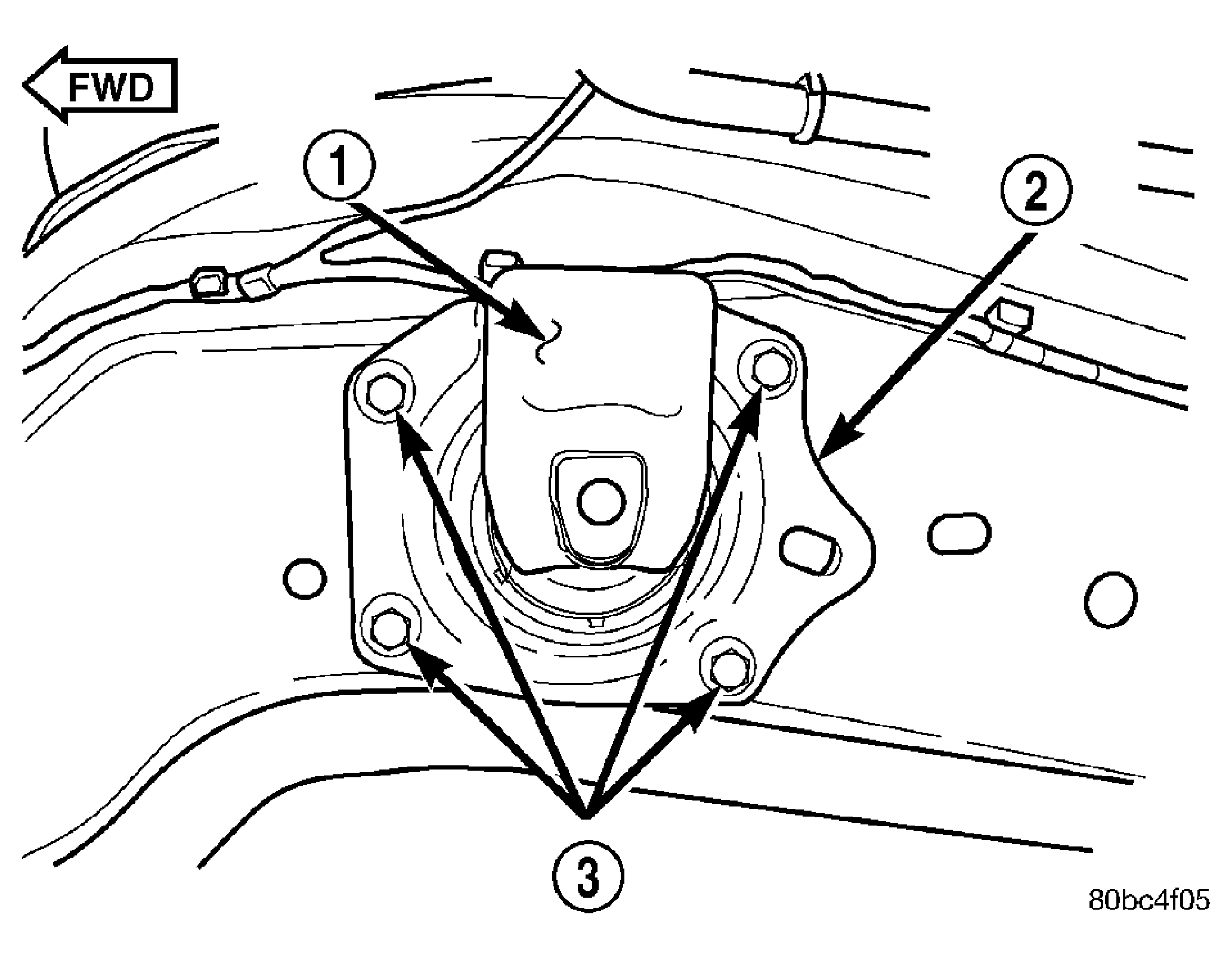

Fig 1: Engine Mount-Right

Courtesy of DAIMLERCHRYSLER CORP.

1 - SNUBBER PAD

2 - RIGHT ENGINE MOUNT

3 - BOLTS

1. Position mount (2) into the original position on body frame rail. See Fig 1.
   NOTE: Engine mount (2) must be installed in the original position on body frame rail. If mount was not marked or frame rail was replaced, perform the following procedure.
   NOTE: Start all bolts (3) by hand to avoid possible cross threading.
2. Perform the following procedure if the mount position was not previously marked, or the frame rail was replaced:
   • Insert new mount loosely in frame rail.
   • Align the four holes in the mount with the mating holes in the rail such that the holes are concentric (frame rail holes centered in the mount holes).
   • Using a permanent ink marker or equivalent, mark the position of engine mount to the body frame rail while maintaining mounting hole concentricity.
3. Ensure the mount maintains originally marked position and install mount bolts. Tighten bolts to 28 N.m (250 in. lbs.). See Fig 1.
4. Install the engine assembly (Refer to ENGINE - INSTALLATION) .
