2.4L DOHC Engine: Mount-Left: Installation

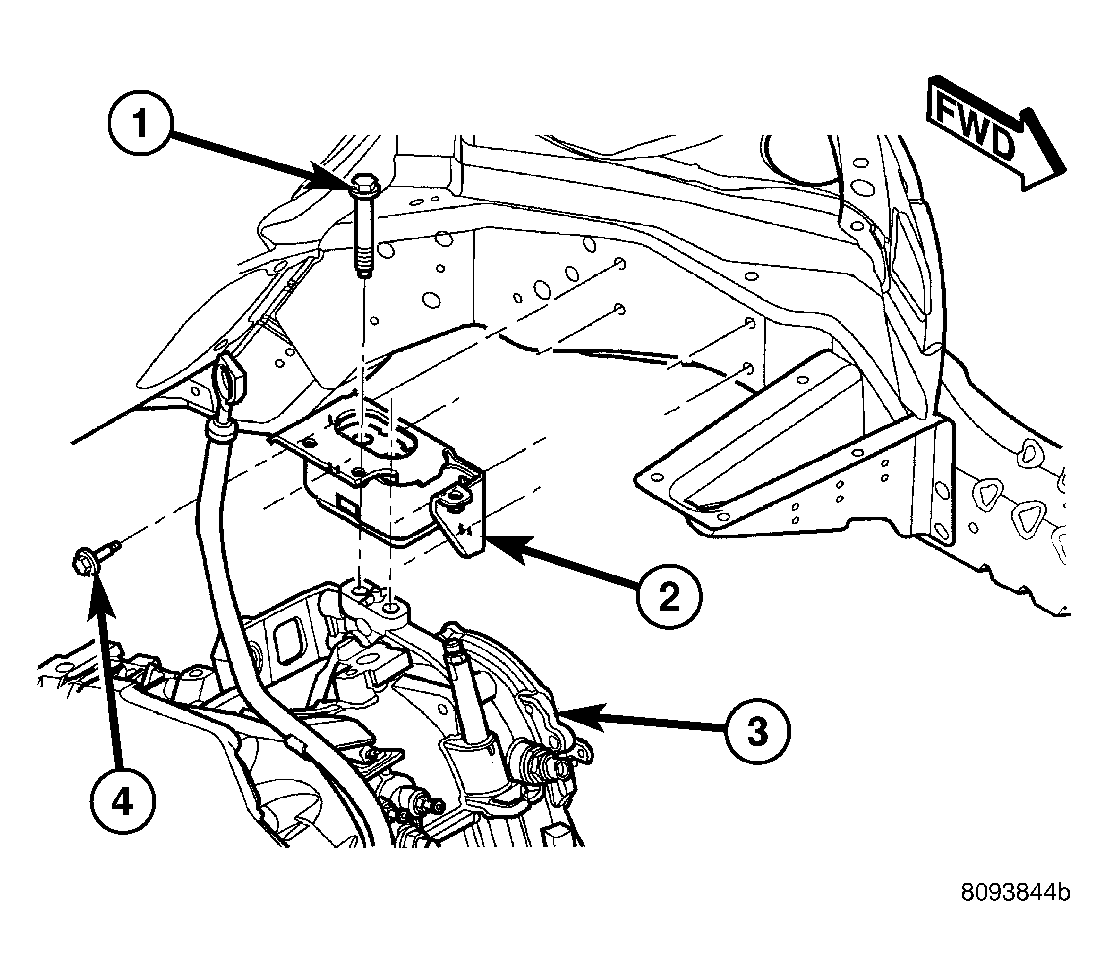

Fig 1: Left Mount

Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLT

2 - LEFT MOUNT

3 - TRANSAXLE

4 - BOLT

1. Install engine mount (2) bracket to body frame rail and tighten fasteners to 28 N.m (250 in. lbs.). See Fig 1.
2. Position engine/transaxle for installation of mount to transaxle bolts (1). Install and tighten bolts to 68 N.m (50 ft. lbs.). See Fig 1.
3. Remove jack from under transaxle (3).

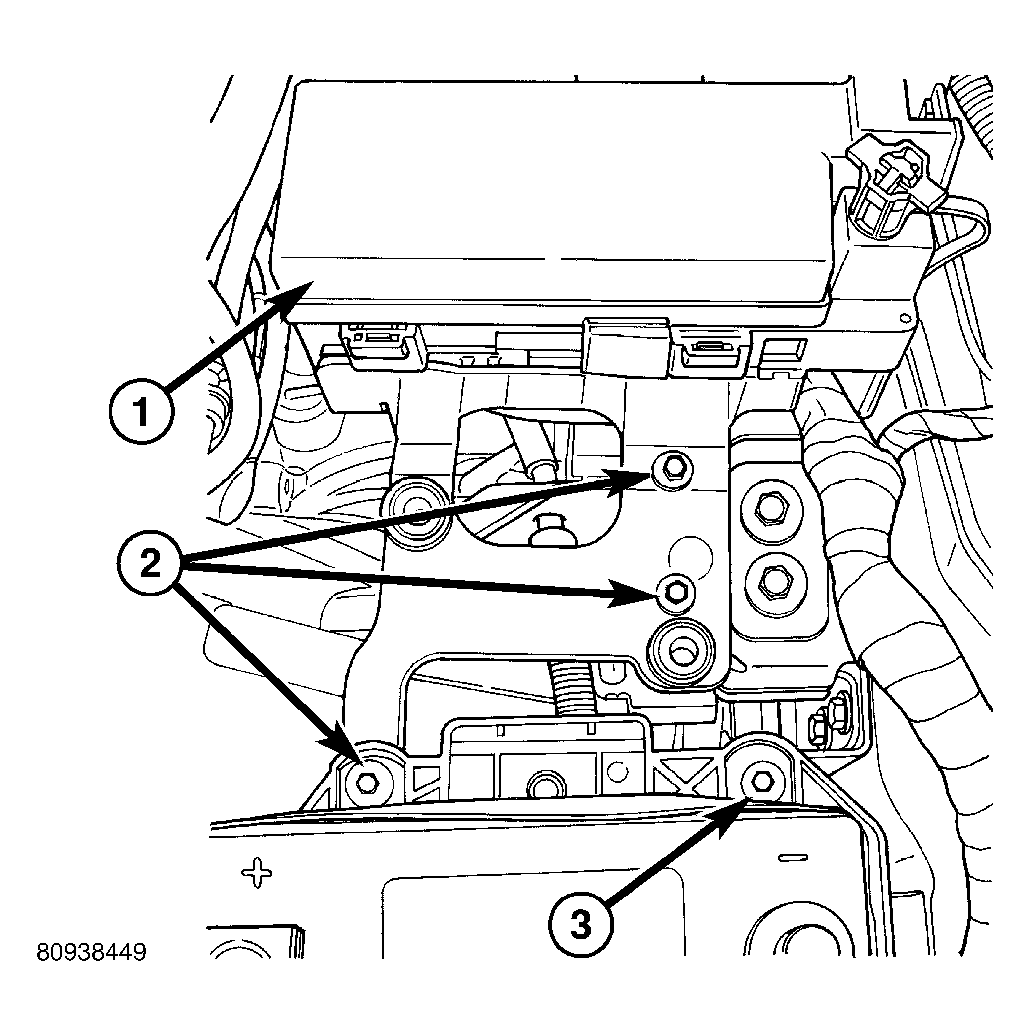

   Fig 2: PDC Bracket Attaching Bolts

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - PDC

   2 - PDC BRACKET BOLTS

   3 - BATTERY TRAY BOLT

4. Install bolts (2) attaching the power distribution center (PDC) bracket to left mount and battery tray. See Fig 2.
5. Connect negative cable to battery.
6. Install air cleaner assembly.
