Upper Intake Manifold: Non-Turbo

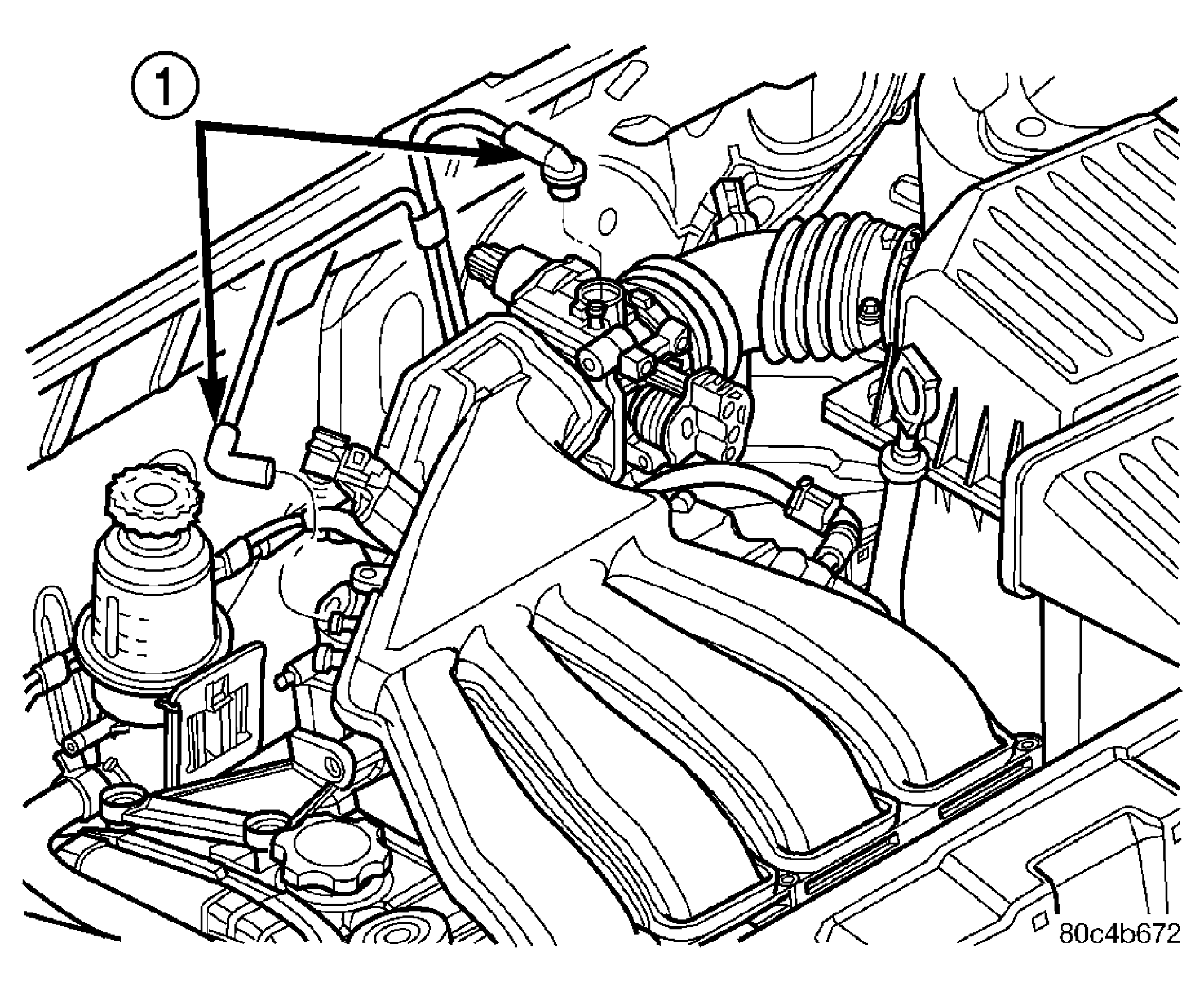

Fig 1: PCV & MAKE-UP AIR HOSE

Courtesy of DAIMLERCHRYSLER CORP.

1 - MAKE-UP AIR HOSE

2 - PCV VALVE

Disconnect inlet air temperature sensor and make-up air hose (1) from clean air hose. See Fig 1.

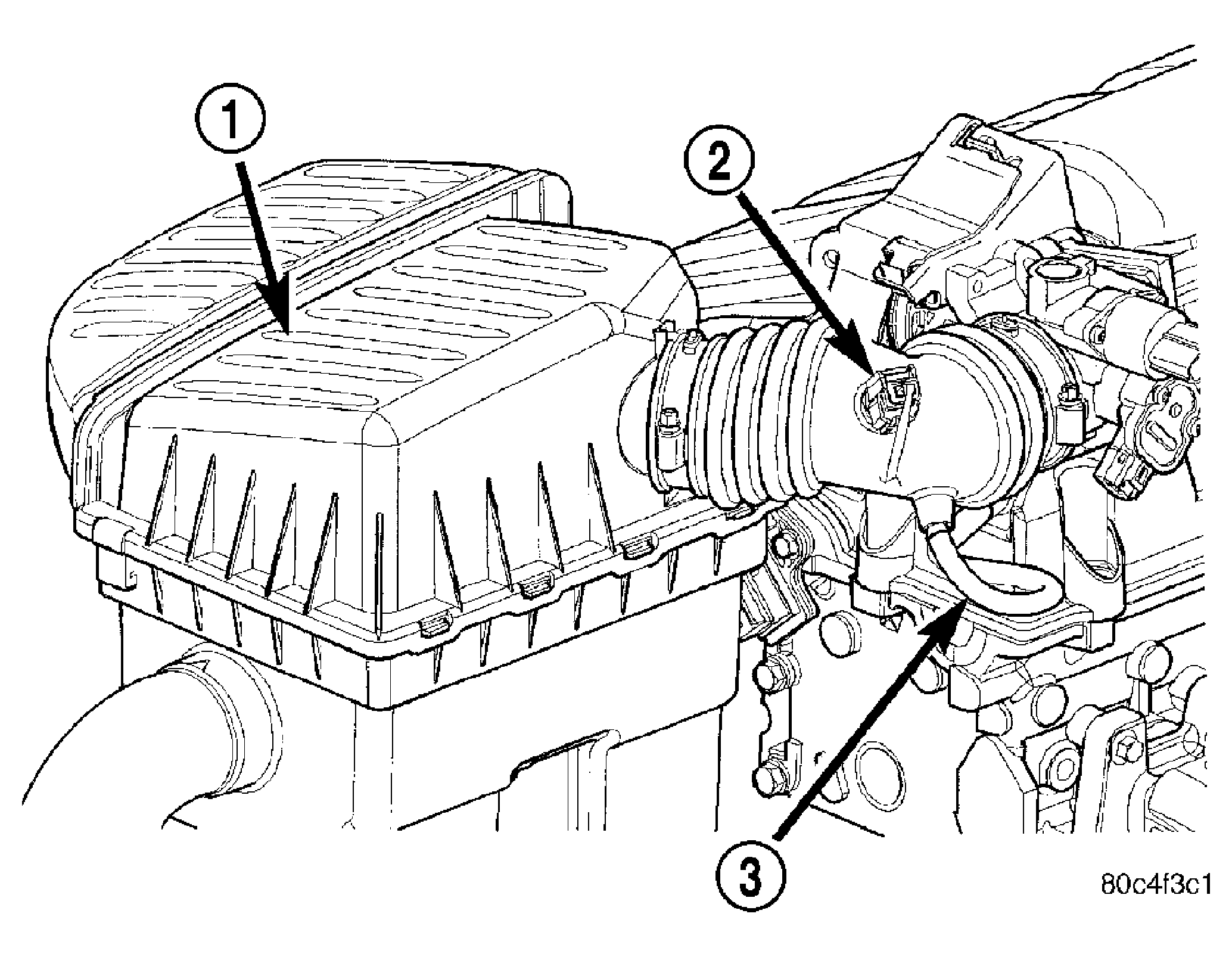

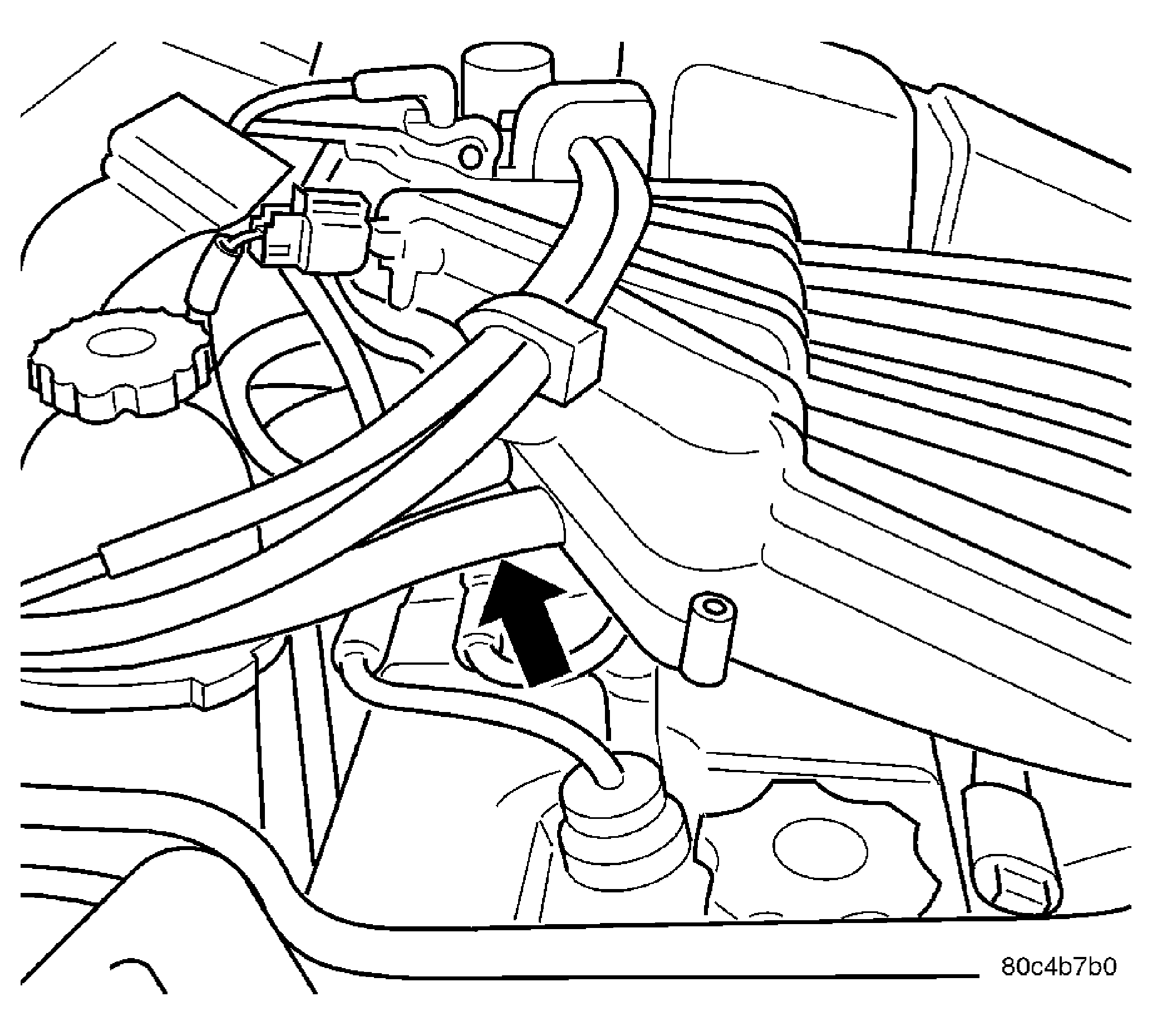

Fig 2: Clean Air Hose

Courtesy of DAIMLERCHRYSLER CORP.

1 - AIR CLEANER HOUSING

2 - INLET AIR TEMPERATURE SENSOR

3 - MAKE-UP AIR HOSE

Remove air cleaner housing (1) and clean air hose assembly.
Disconnect negative cable from battery.

Fig 3: Throttle Cables - 2.4L Turbo
Courtesy of DAIMLERCHRYSLER CORP.
Remove throttle and speed control cables from throttle lever and bracket.

Fig 4: MAP Sensor
Courtesy of DAIMLERCHRYSLER CORP.

1 - MAP SENSOR
Disconnect manifold absolute pressure (MAP) sensor (1). See Fig 4.

Fig 5: Locating Throttle Position Sensor, Idle Air Control Motor & PCM
Courtesy of DAIMLERCHRYSLER CORP.

1 - IAC

2 - PCM

3 - TPS
idle air control (IAC) motor (1) and throttle position sensor (TPS) (3) wiring connectors. See Fig 5.

Fig 6: Proportional Purge Hoses
Courtesy of DAIMLERCHRYSLER CORP.

1 - PROPORTIONAL PURGE HOSES
Disconnect proportional purge hoses (1). See Fig 6.

Fig 7: Brake Booster Hose
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect brake booster hose. See Fig 7.
Disconnect PCV hose from intake manifold.

Fig 8: Intake Manifold Support
Courtesy of DAIMLERCHRYSLER CORP.

1 - INTAKE MANIFOLD SUPPORT BRACKET
Remove rear intake manifold support bracket (1). See Fig 8.
Remove upper intake manifold fasteners.
Remove upper intake manifold.

Fig 9: Covering Lower Intake Manifold Openings
Courtesy of DAIMLERCHRYSLER CORP.

1 - INTAKE MANIFOLD MUST BE COVERED DURING SERVICE
If further service is required, cover the lower intake manifold openings to prevent foreign materials from entering the engine. See Fig 9.
