Upper Intake Manifold: Turbo
| 1 - INTAKE MANIFOLD MUST BE COVERED DURING SERVICE |
- If lower intake manifold was covered during service, remove cover (1). See Fig 1.
- Clean all sealing surfaces. Replace upper intake manifold gasket.
NOTE: This engine could be equipped with either a plastic intake manifold or an aluminum intake manifold.

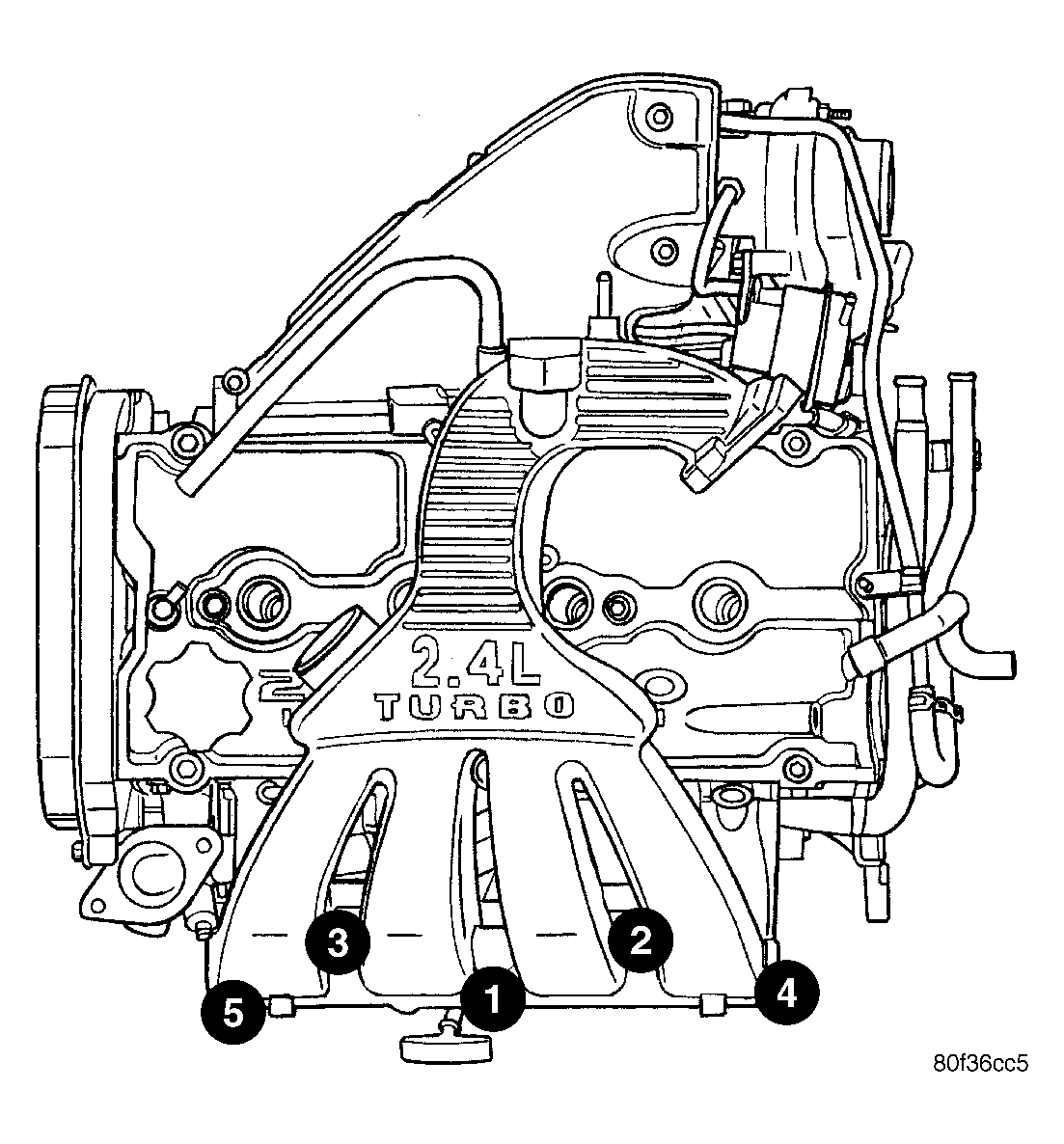

- Position upper intake manifold on lower intake manifold. On engines equipped with an aluminum intake manifold, tighten manifold fasteners to 28 N.m (250 in. lbs.) in sequence shown. See Fig 2. On engines equipped with a plastic intake manifold, tighten manifold fasteners to 12 N.m (105 in. lbs.) in sequence shown. See Fig 2.
1 - INTAKE MANIFOLD SUPPORT BRACKET - Install upper intake manifold to cylinder head support bracket (1). See Figure. Torque cylinder head fasteners to 28 N.m (250 in. lbs.) and manifold fasteners to 6 N.m (55 in. lbs.).

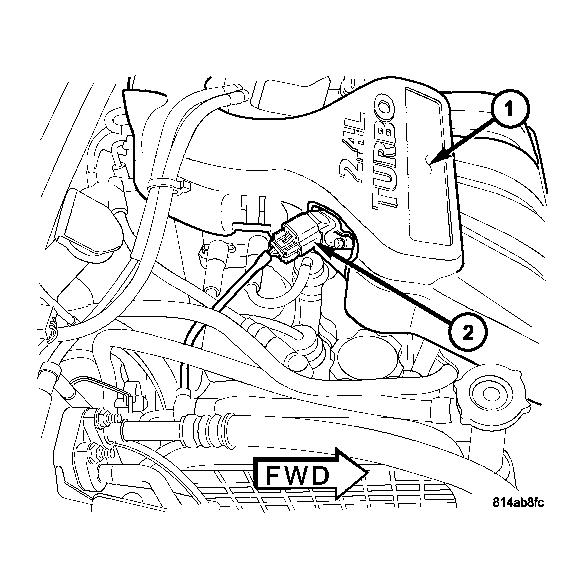

1 - Item_1 2 - Item _2 - Install the intake manifold cover (1).
1 - PROPORTIONAL PURGE HOSES - Connect purge solenoid hose to throttle body (1). See Fig 5.
- Connect brake booster vacuum hose and PCV hose to intake manifold.
- Install the 2 screws for the throttle cable bracket and tighten to 12 N.m (105 in. lbs.) on aluminum intake manifolds and 6 N.m (55 in. lbs.) on plastic intake manifolds.

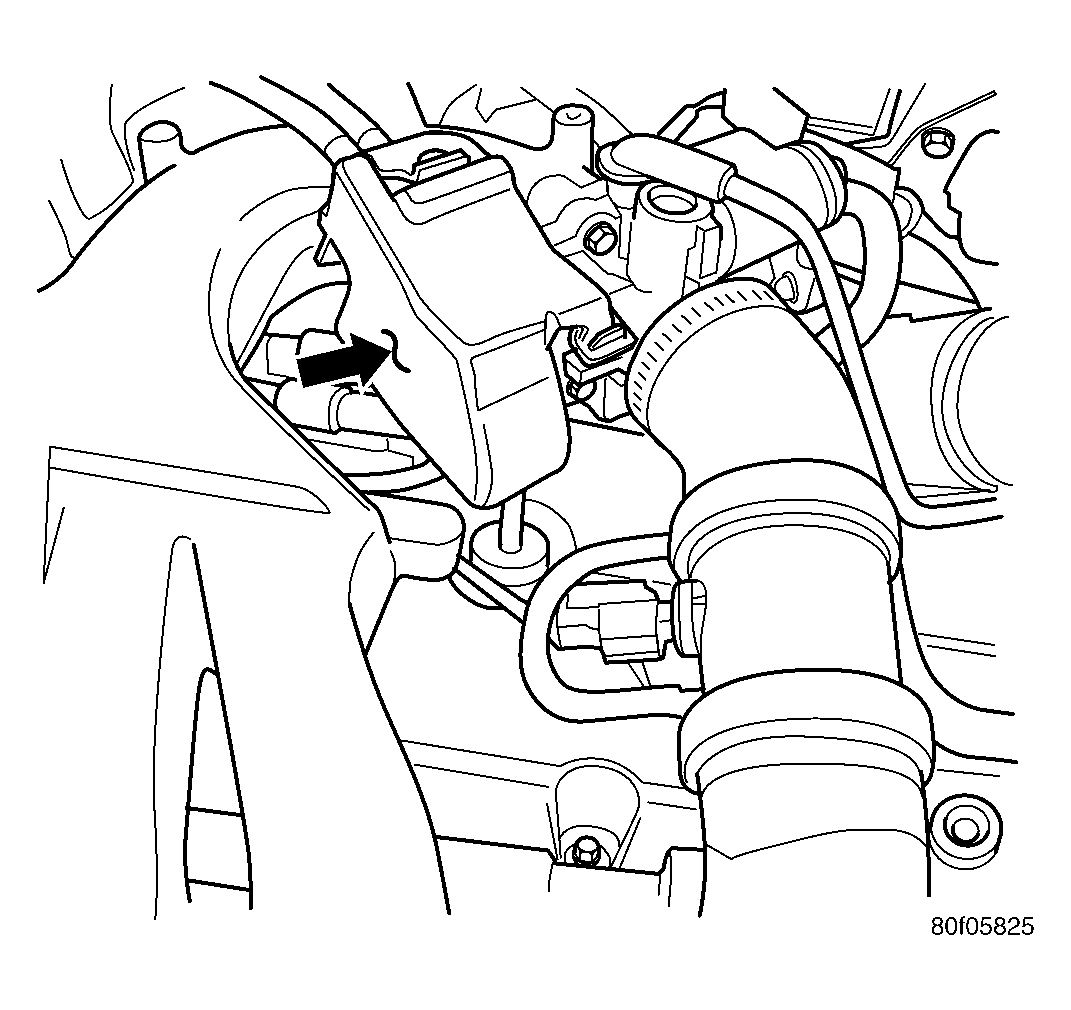

- Install the throttle control shield. See Fig 7.
- Connect idle air control (IAC) motor and throttle position sensor connectors.
1 - MAP SENSOR - Connect the MAP sensor (1) connector. See Fig 8.

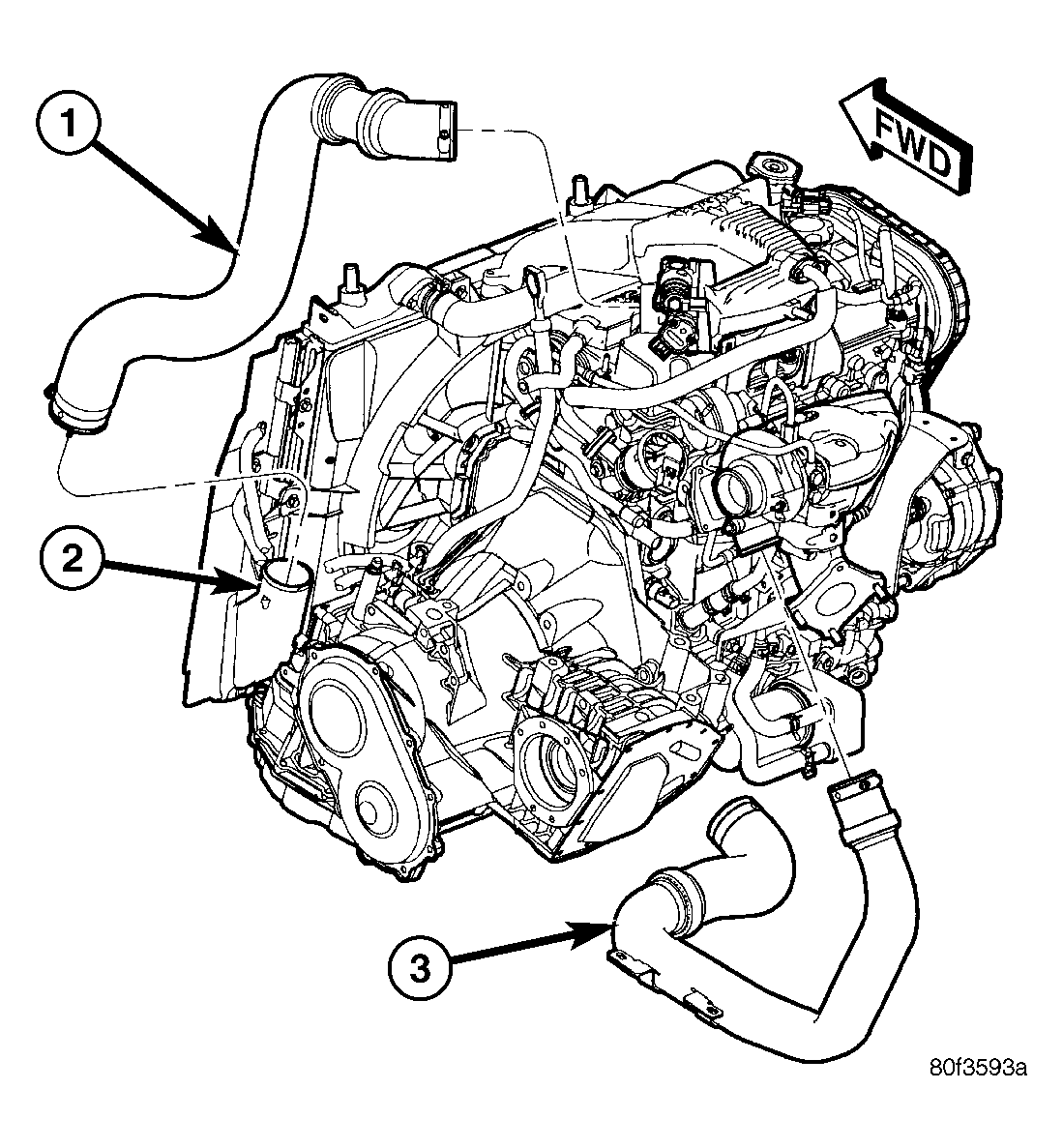

1 - HOSE - CHARGE AIR COOLER TO THROTTLE BODY 2 - CHARGE AIR COOLER 3 - HOSE - TURBOCHARGER TO CHARGE AIR COOLER - Connect charge air cooler hose to throttle body (1). See Fig 9. Tighten hose clamp to 1.7 N.m (15 in. lbs.).
- Connect negative battery cable.
