2.4L DOHC Engine: Manifold-Exhaust: Removal

NOTE: The exhaust manifold on Turbocharged equipped vehicles is serviced as an assembly with the Turbocharger. (Refer to EXHAUST SYSTEM/TURBOCHARGER SYSTEM/TURBOCHARGER - REMOVAL) .

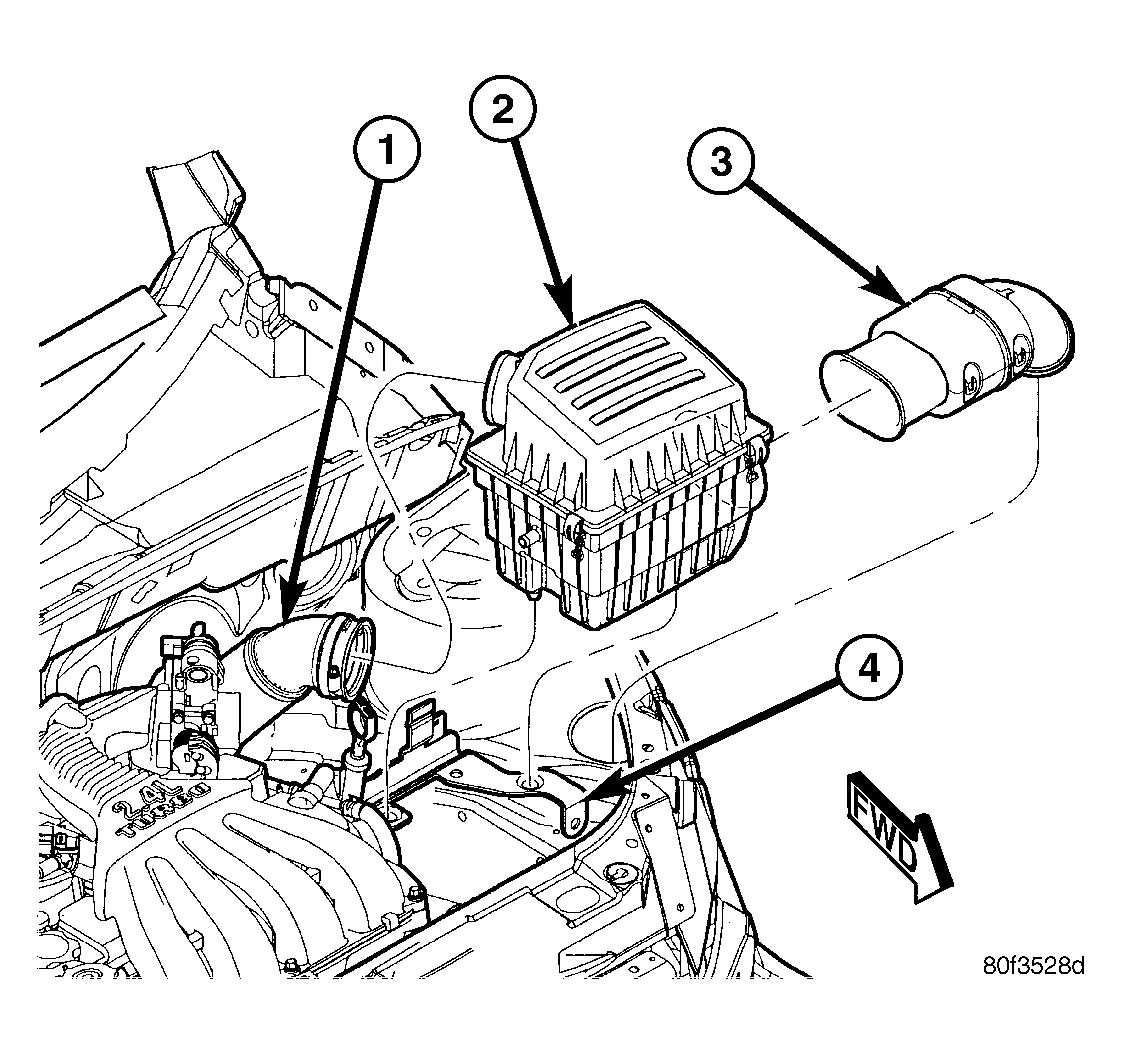

Fig 1: Air Inlet System - 2.4L Turbo

Courtesy of DAIMLERCHRYSLER CORP.

1 - CLEAN AIR HOSE

2 - AIR CLEANER HOUSING

3 - FRESH AIR INLET DUCT

4 - PDC MOUNTING BRACKET

1. Remove clean air hose (1) and air cleaner housing (2).
2. Disconnect negative cable from battery.

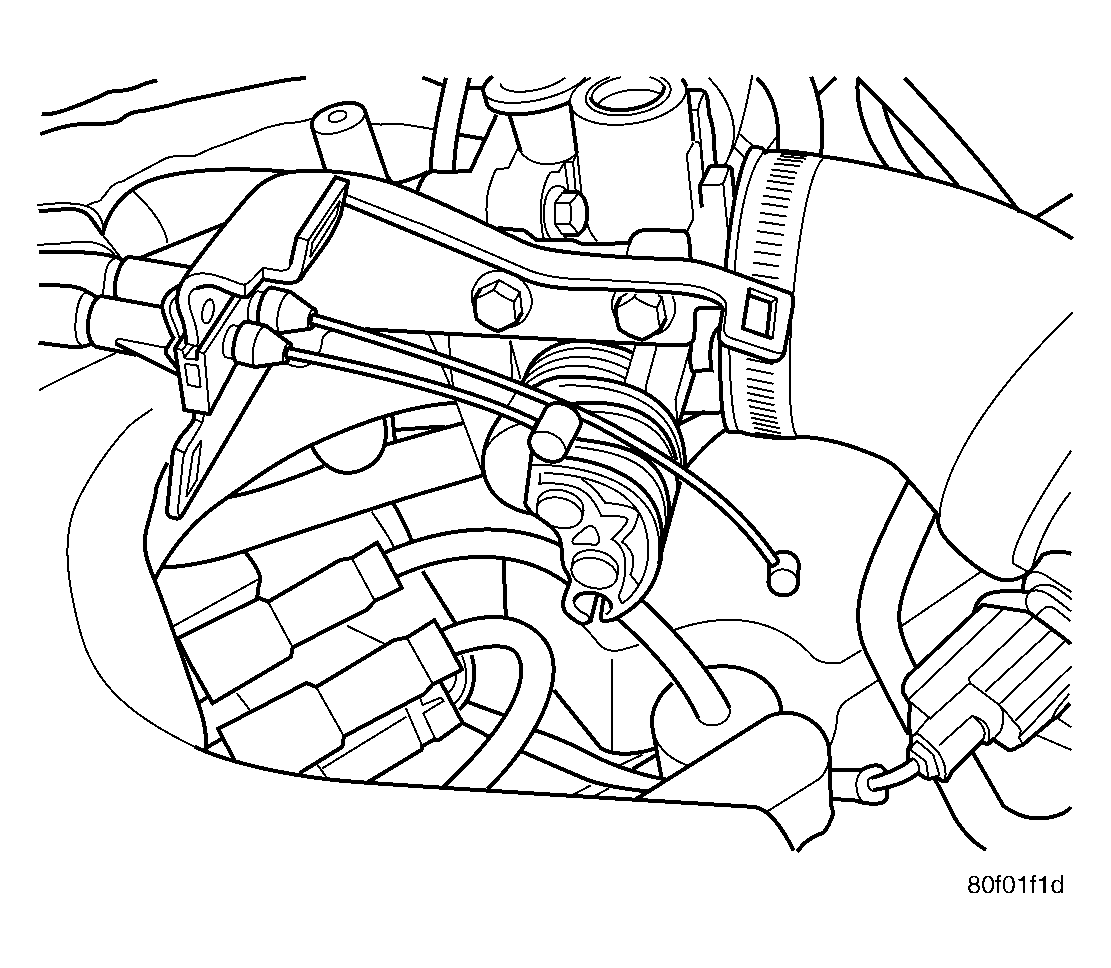

   Fig 2: Throttle Cables - 2.4L Turbo

   Courtesy of DAIMLERCHRYSLER CORP.
3. Disconnect throttle and speed control cables from the throttle lever and bracket.

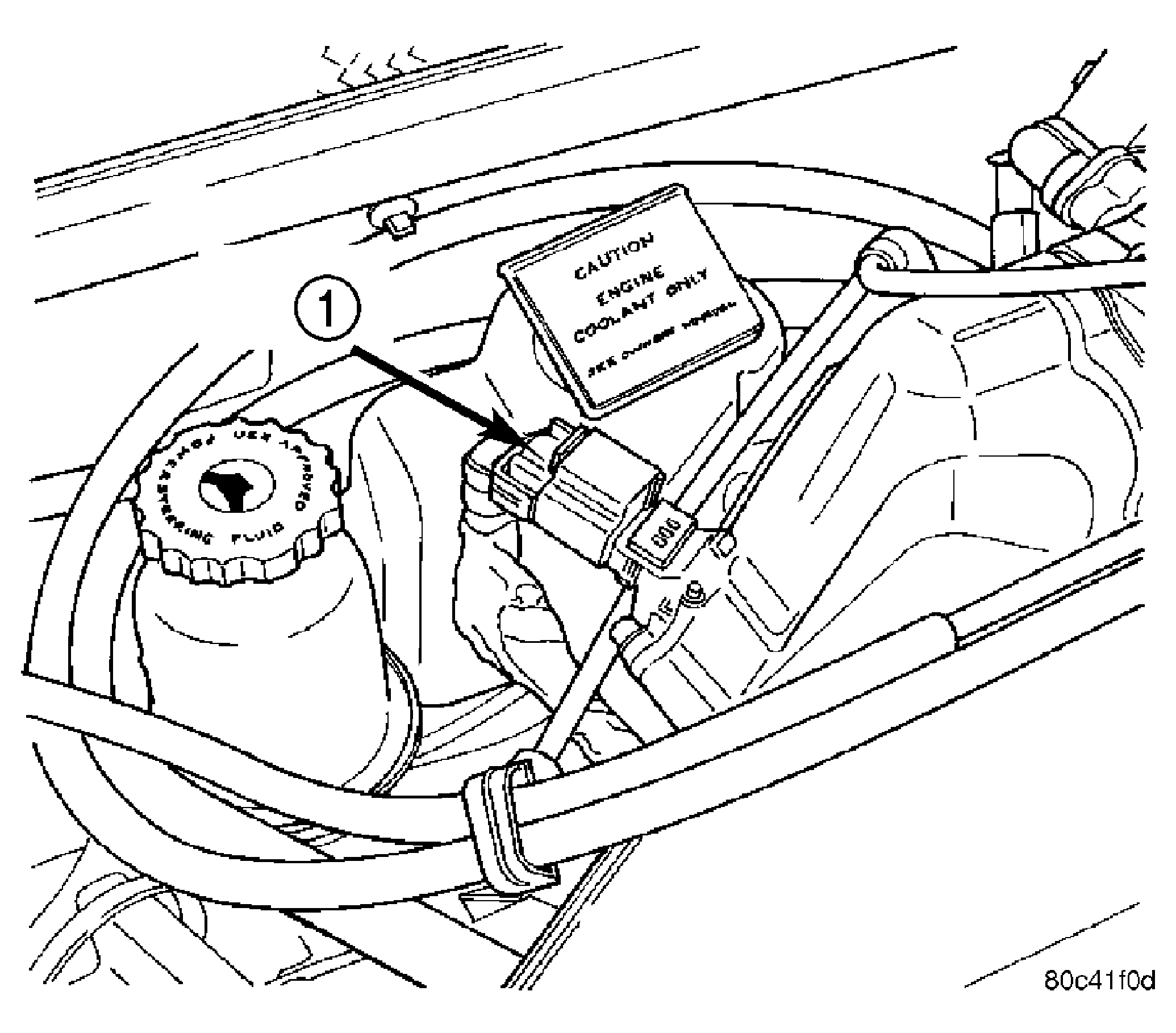

   Fig 3: MAP Sensor

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - MAP SENSOR

4. Disconnect MAP sensor (1) electrical connector.

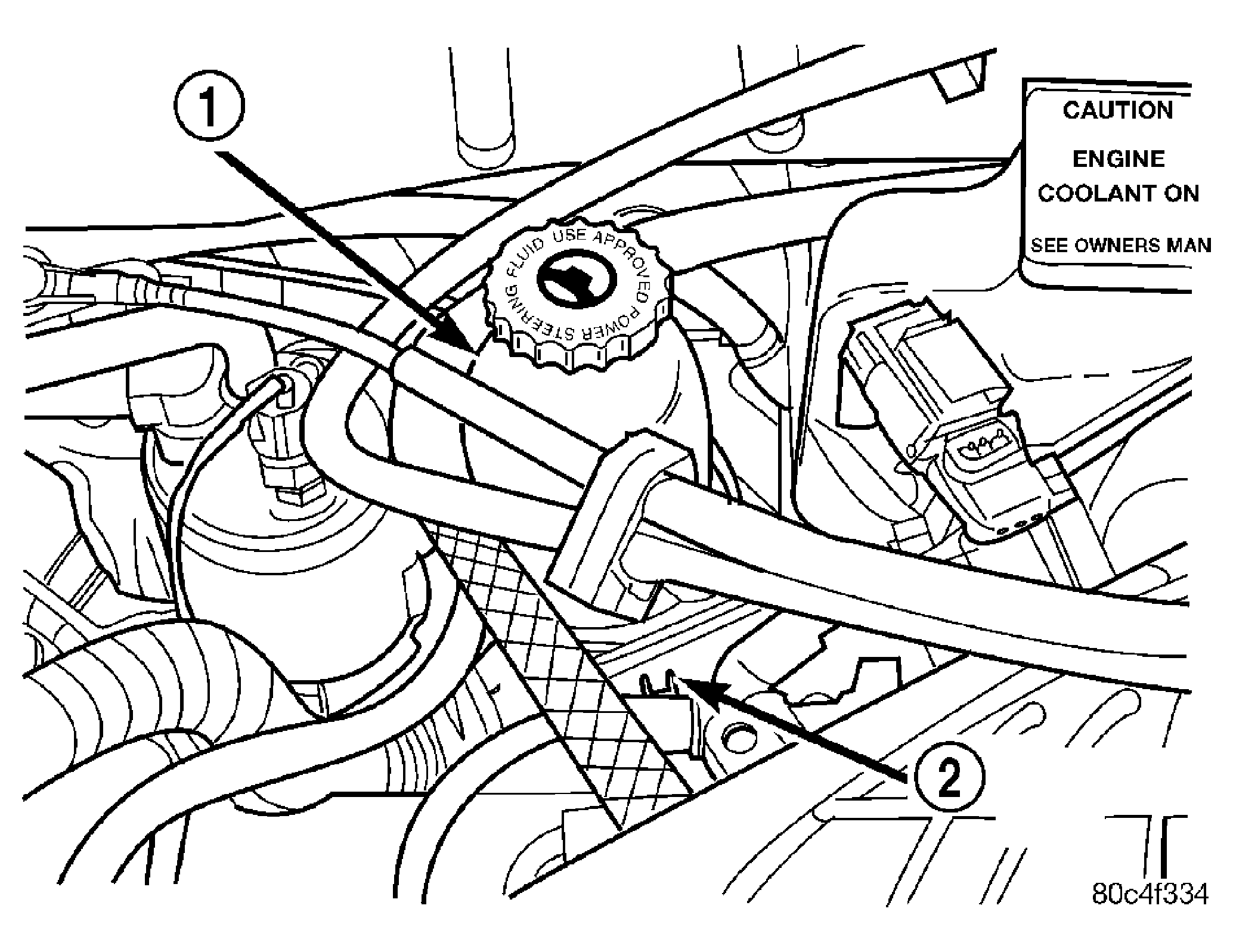

   Fig 4: Power Steering Fluid Reservoir

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - POWER STEERING FLUID RESERVOIR

   2 - RETAINING TAB

5. Remove fasteners securing power steering fluid reservoir (1) to cylinder head.
6. Remove coolant recovery container (Refer to COOLING/ENGINE/COOLANT RECOVERY CONTAINER - REMOVAL) .

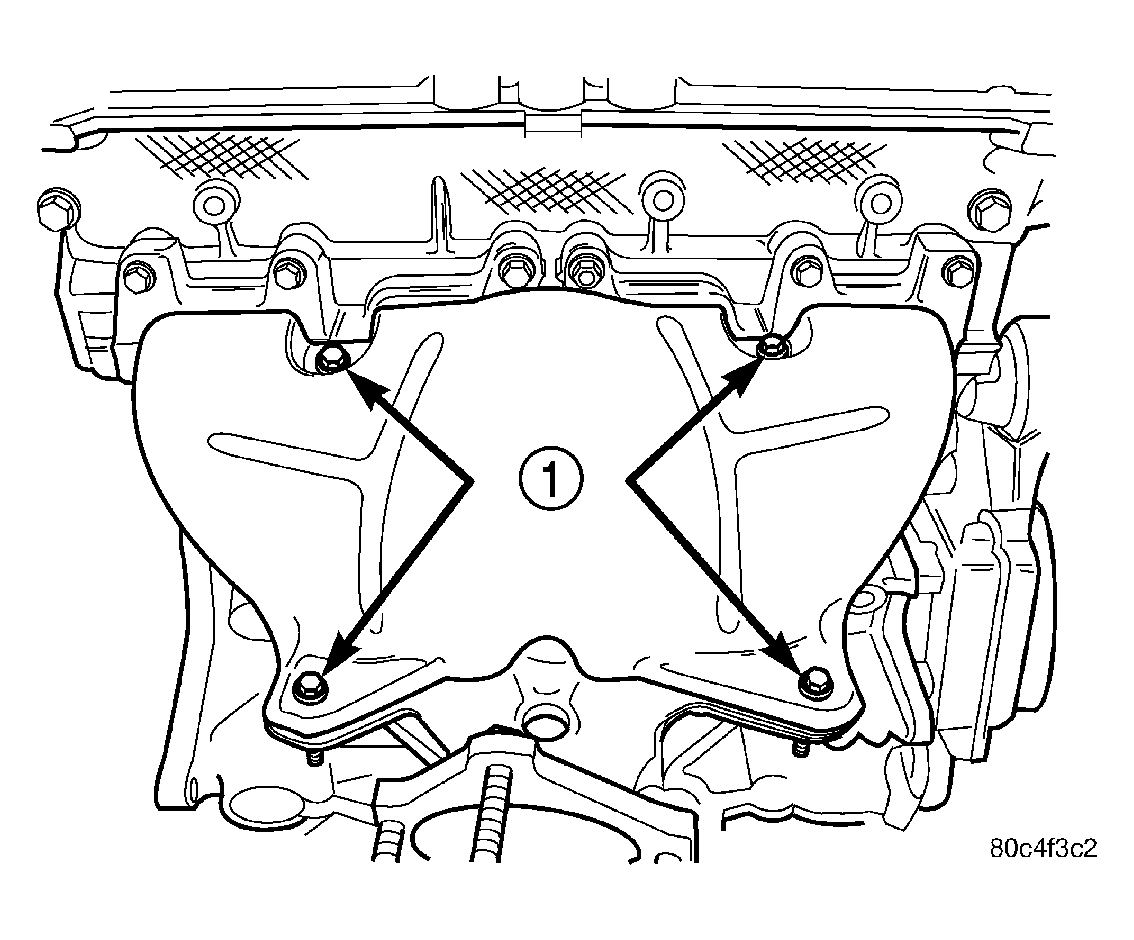

   Fig 5: Exhaust Manifold Heat Shield Bolts

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - BOLTS

7. Remove bolts (1) attaching upper heat shield. See Fig 5.
8. Remove upper heat shield.
9. Raise vehicle.
   Fig 6: Exhaust System To Manifold Connection

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - GASKET

   2 - CATALYTIC CONVERTER

   3 - NUT

10. Disconnect exhaust pipe from manifold. See Fig 6.
    Fig 7: Heat Shield - Engine Wiring

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - HEAT SHIELD

    2 - NUT

    3 - NUT

11. Remove engine wiring heat shield (1). See Fig 7.

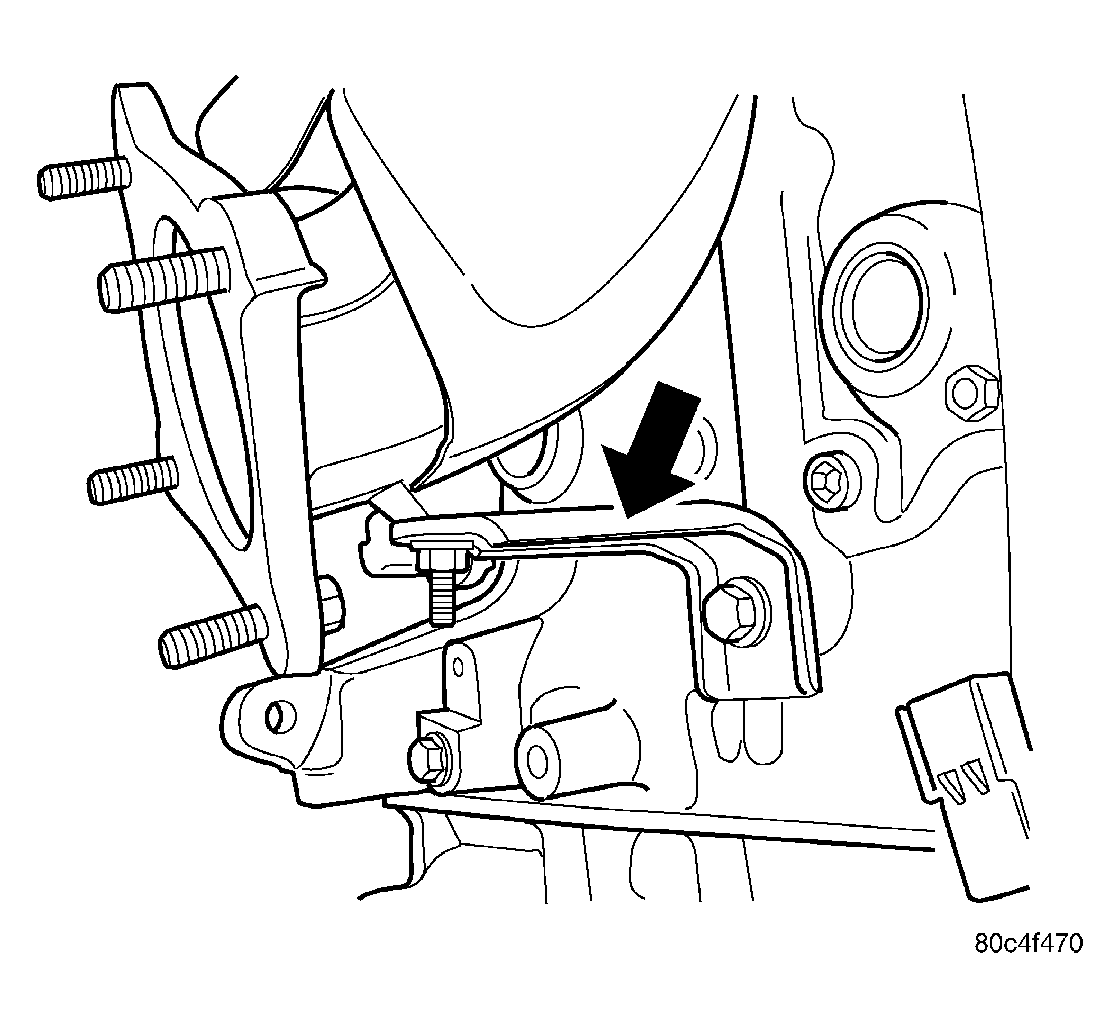

    Fig 8: Exhaust Manifold Support Bracket

    Courtesy of DAIMLERCHRYSLER CORP.
12. Remove manifold support bracket. See Fig 8.

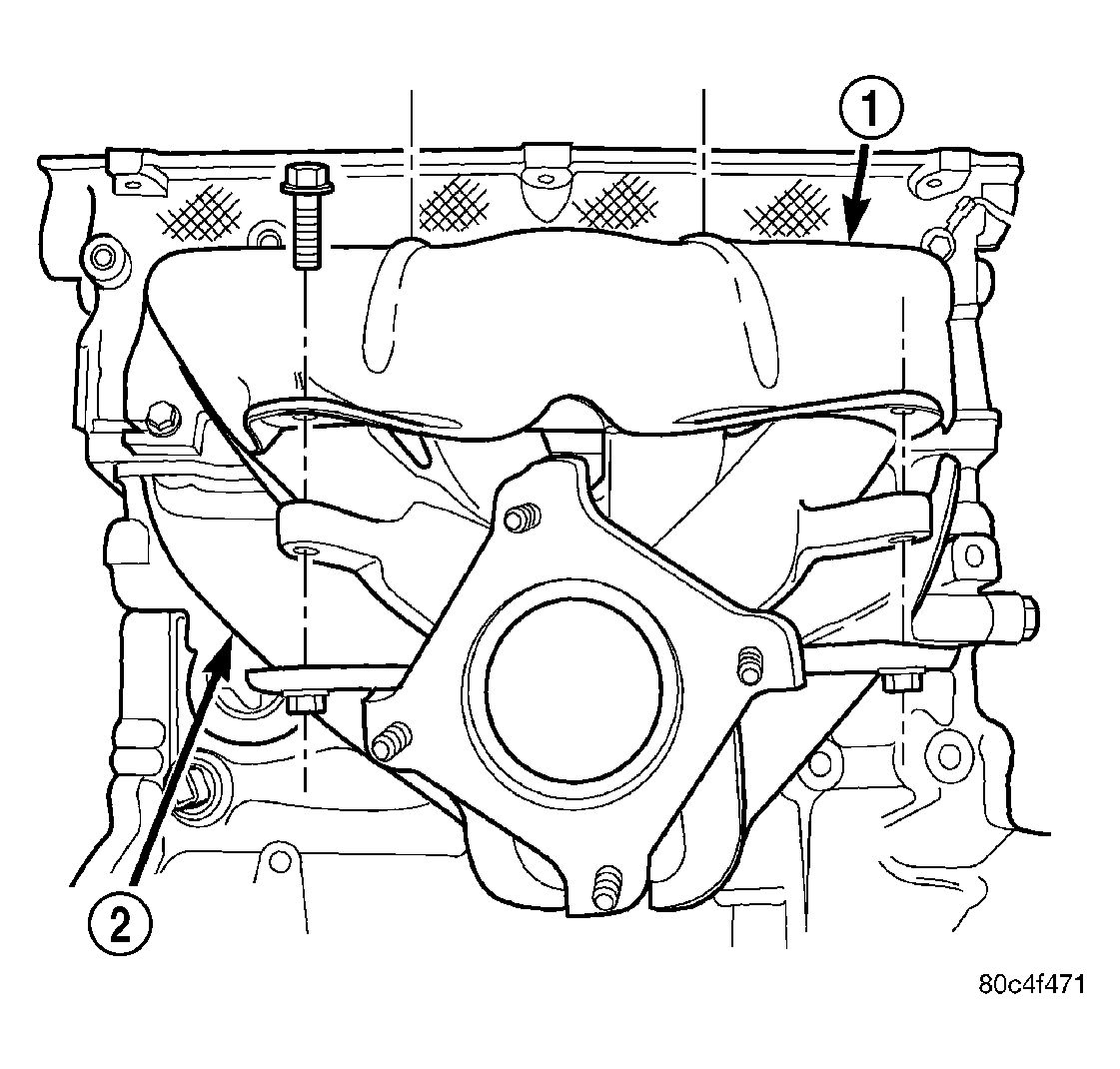

    Fig 9: Exhaust Manifold Heat Shields

    Courtesy of DAIMLERCHRYSLER CORP.

    1 - UPPER HEAT SHIELD

    2 - LOWER HEAT SHIELD

13. Remove lower exhaust manifold heat shield (2). See Fig 9.
14. Disconnect oxygen sensor electrical connector.
    Fig 10: Exhaust Manifold - Loosening & Tightening Sequence

    Courtesy of DAIMLERCHRYSLER CORP.
15. Remove exhaust manifold lower retaining fasteners. See Fig 10.
16. Lower vehicle and remove the upper exhaust manifold retaining fasteners.
17. Remove exhaust manifold from above/between the engine and cowl panel.
18. Remove and discard manifold gasket.
