Jet-Oil 2.4L Turbo: Removal

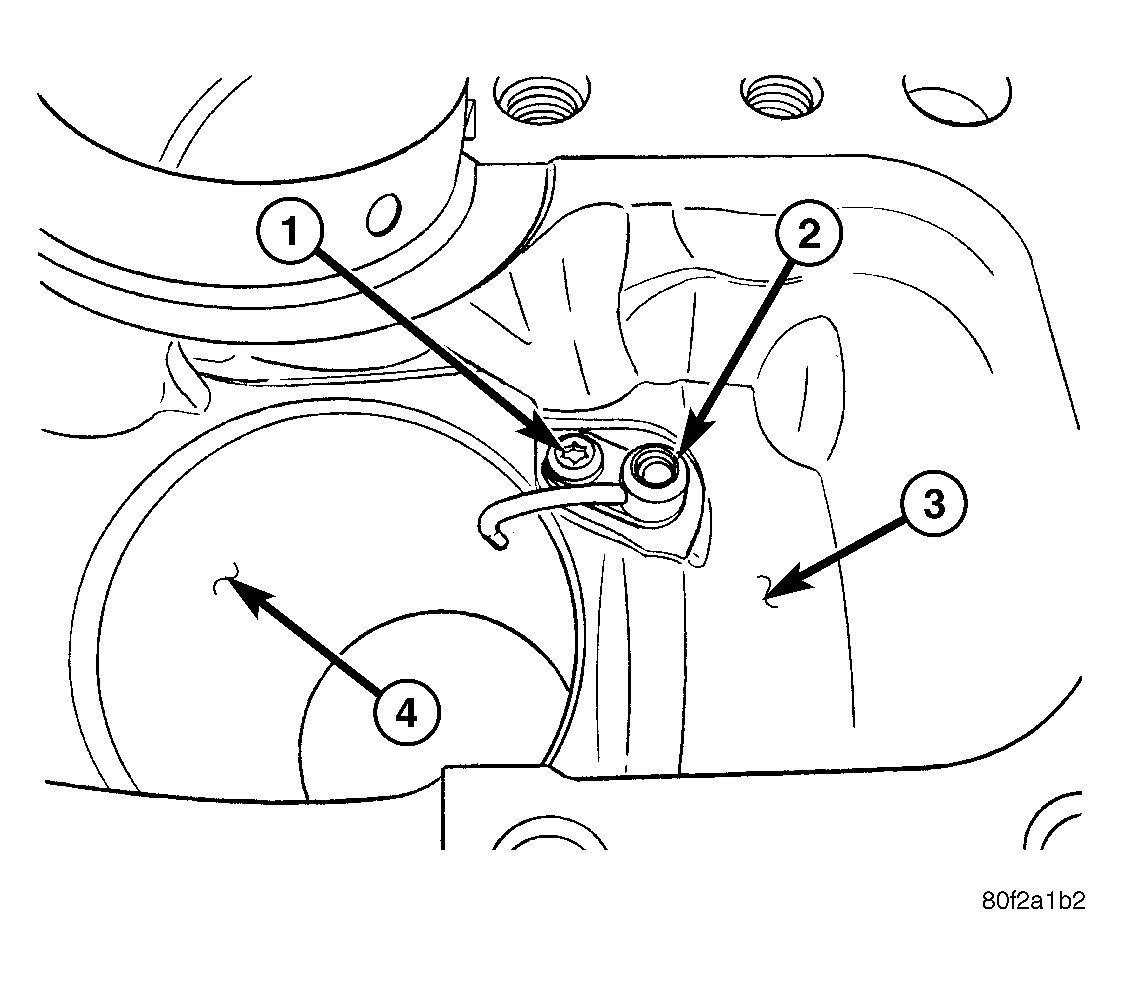

Fig 1: Oil Jet Fastener - 2.4L Turbo

GC0021225

Courtesy of DAIMLERCHRYSLER CORP.

1 - FASTENER - 12 N.m (105 in. lbs.)

2 - OIL JET

3 - ENGINE BLOCK

4 - CYLINDER WALL

Remove crankshaft (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT - REMOVAL) .
Remove oil jet fastener (1). See Fig 1.
CAUTION: Do Not Pull on Oil Jet Tube
Using pliers or other similar tool, pull oil jet (2) from engine block (3).
