Housing-Air Cleaner: Removal

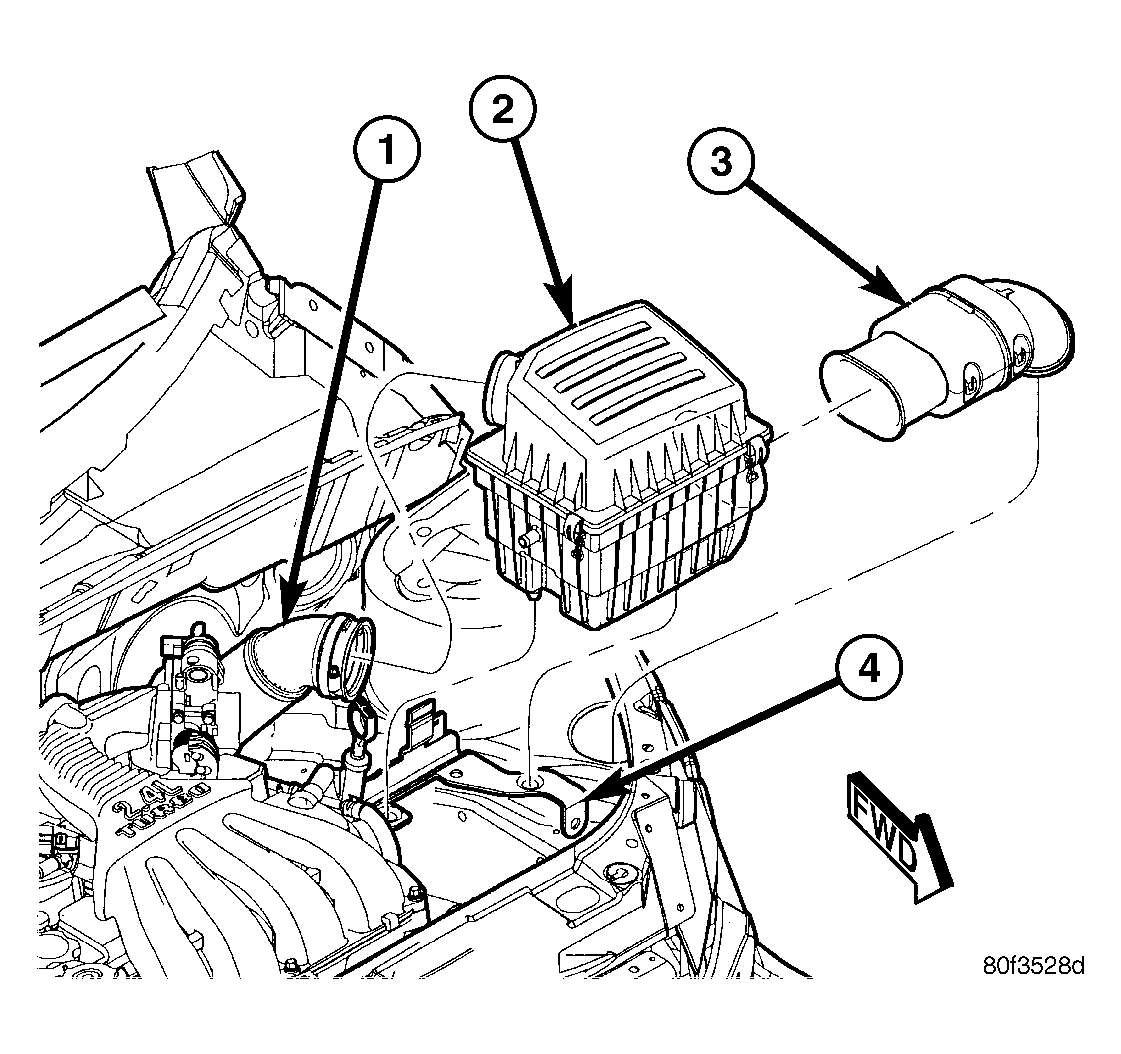

Fig 1: Air Inlet System - 2.4L Turbo
GC0021571Courtesy of DAIMLERCHRYSLER CORP.
1 - CLEAN AIR HOSE
2 - AIR CLEANER HOUSING
3 - FRESH AIR INLET DUCT
4 - PDC MOUNTING BRACKET
  1. Disconnect the throttle body air inlet hose/clean air hose (1) from the air cleaner housing (2). See Fig 1.
  2. Pull air cleaner housing (2) straight up to remove.
  3. Remove the inlet duct (3) from the air cleaner housing (2). See Fig 1.
