Engine Mounts: Description

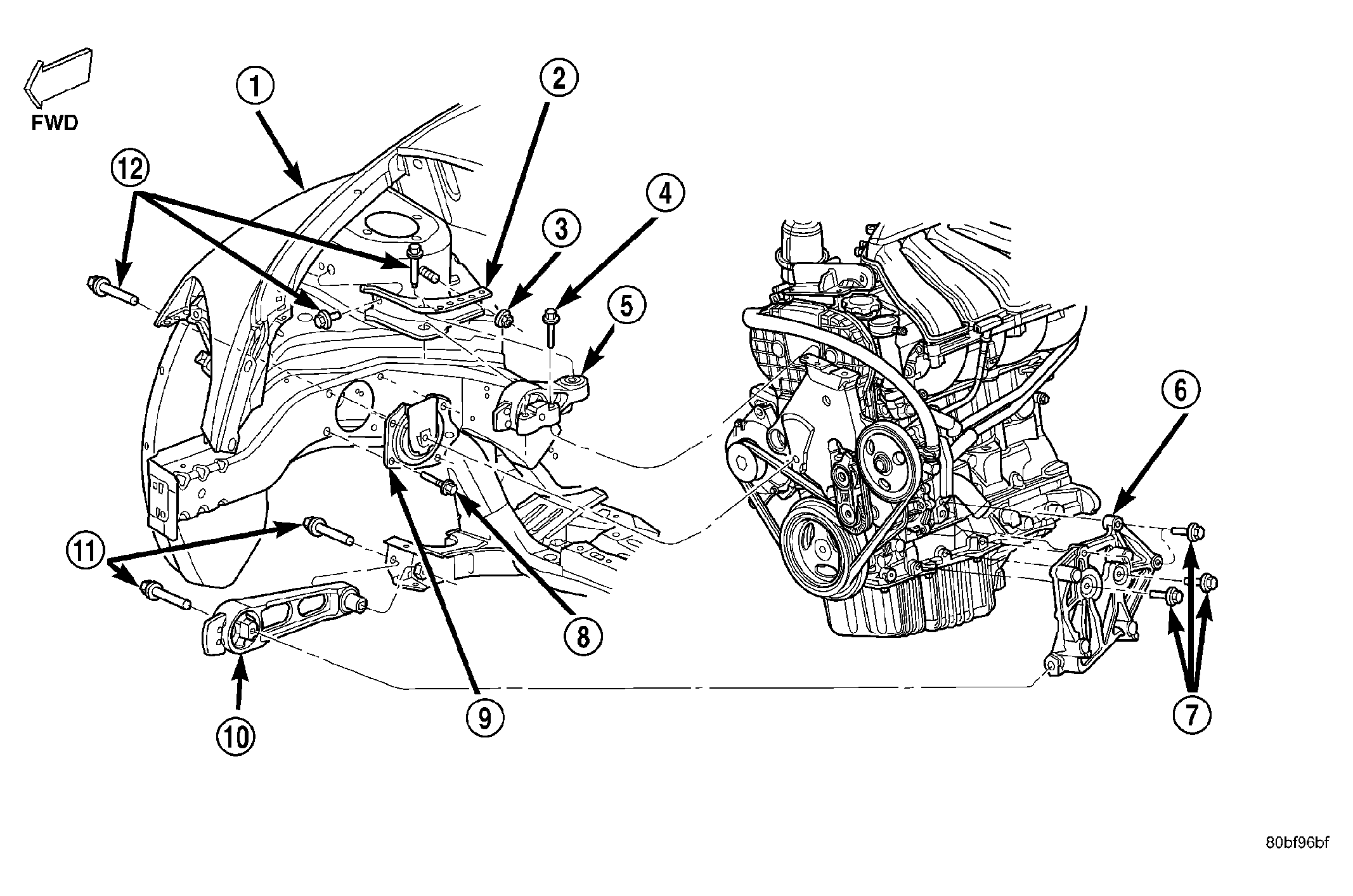

| 1 - RIGHT FENDER |
| 2 - UPPER TORQUE STRUT BRACKET |
| 3 - NUT |
| 4 - BOLT |
| 5 - UPPER TORQUE STRUT |
| 6 - LOWER TORQUE STRUT BRACKET |
| 7 - BOLTS |
| 8 - BOLTS |
| 9 - RIGHT ENGINE MOUNT |
| 10 - LOWER TORQUE STRUT |
| 11 - BOLTS |
| 12 - BOLTS |
| 13 - FWD |
The engine mounting system. See Fig 2. See Fig 1consists of a four-point system utilizing two load-carrying mounts and two torque struts. The load-carrying mounts are located on each frame rail. The right mount is a hydro-elastic mount (9).

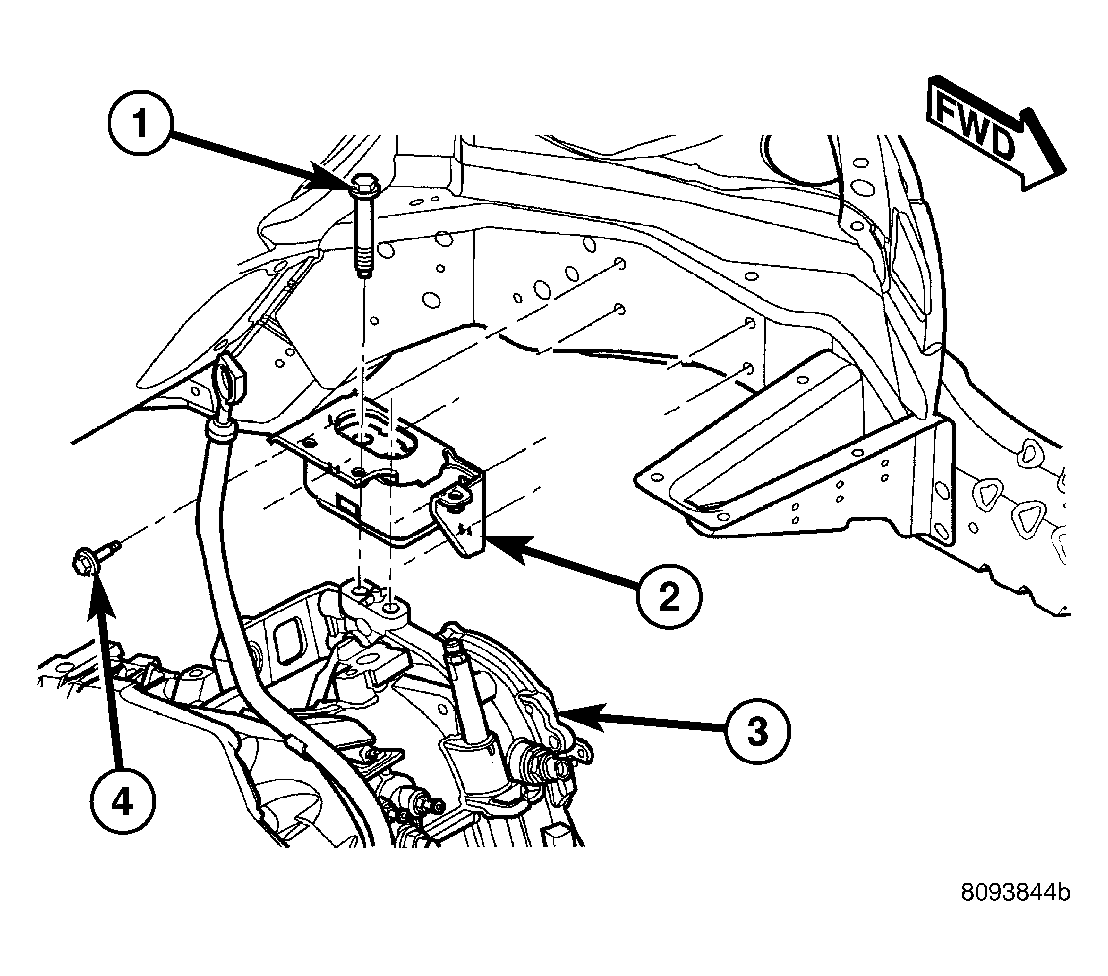

| 1 - BOLT |
| 2 - LEFT MOUNT |
| 3 - TRANSAXLE |
| 4 - BOLT |
The left mount is a conventional elastomeric isolator (2).
| 1 - RIGHT FENDER |
| 2 - UPPER TORQUE STRUT BRACKET |
| 3 - NUT |
| 4 - BOLT |
| 5 - UPPER TORQUE STRUT |
| 6 - LOWER TORQUE STRUT BRACKET |
| 7 - BOLTS |
| 8 - BOLTS |
| 9 - RIGHT ENGINE MOUNT |
| 10 - LOWER TORQUE STRUT |
| 11 - BOLTS |
| 12 - BOLTS |
| 13 - FWD |
The upper torque strut (5) and the lower torque strut (10) are attached at the front of the engine, straddling the right side load-carrying mount. The upper strut (10) connects to the suspension strut tower and the lower to the suspension crossmember.
