Engine Block: Description

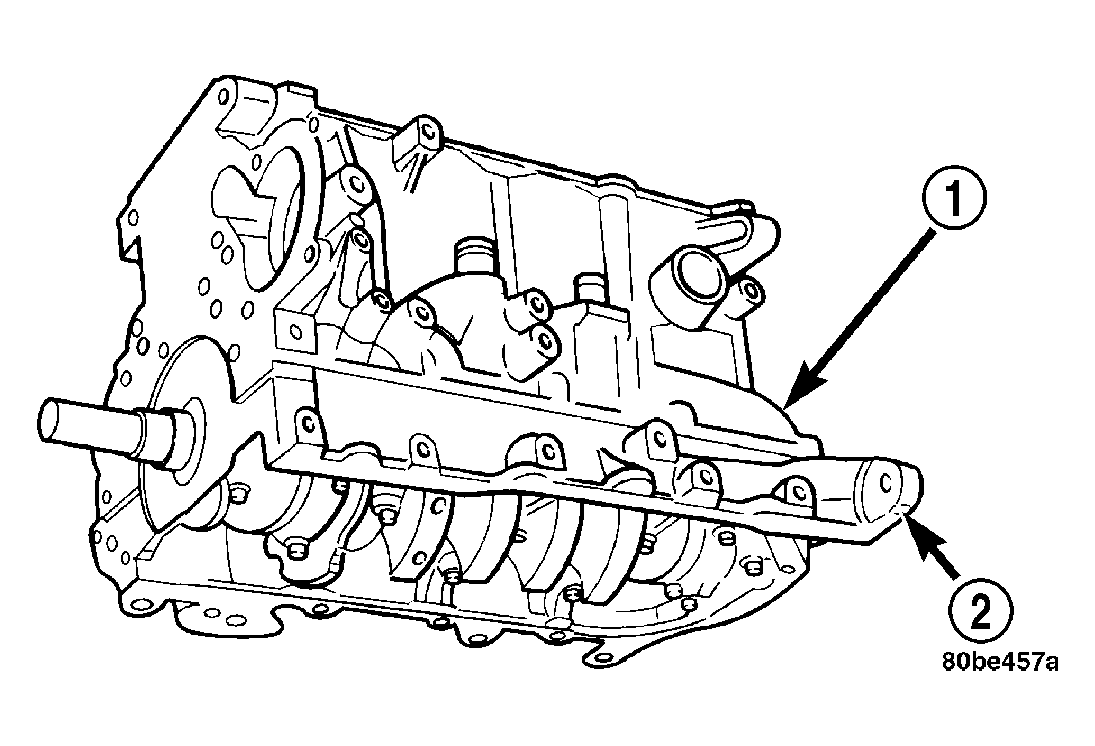

Fig 1: Cylinder Block and Bed plate

Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER BLOCK

2 - BED PLATE

The cast iron cylinder block is a two-piece assembly, consisting of the cylinder block (1) and bed plate (2). See Fig 1. The bed plate (2) incorporates the main bearing caps and bolts to the cylinder block (1). This design offers a much stronger lower end and increased cylinder block rigidity. The rear oil seal retainer is integral with the block. The bed plate and block are serviced as an assembly.
