Rear Cover

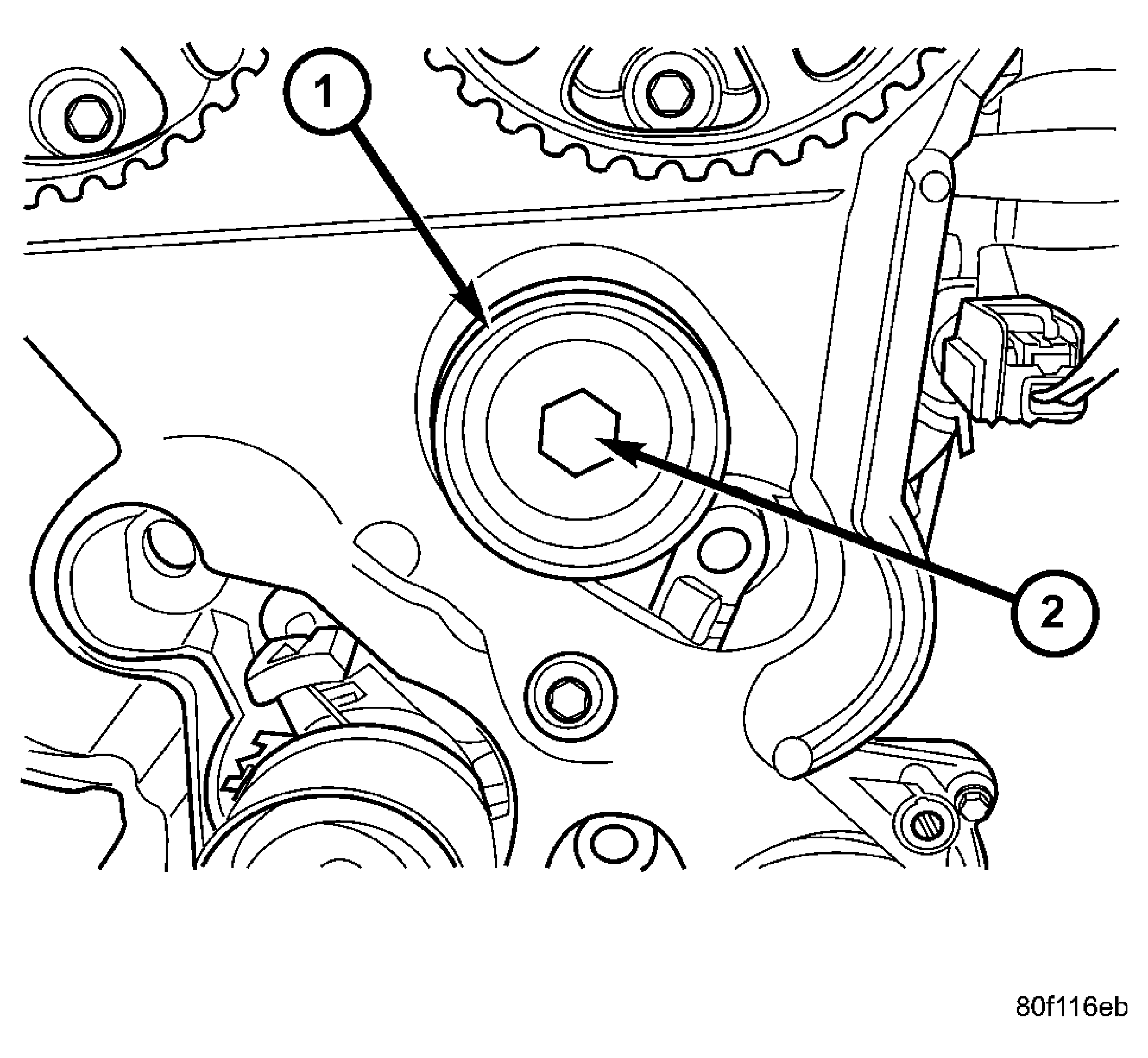

Fig 1: Timing Belt Idler Pulley

Courtesy of DAIMLERCHRYSLER CORP.

1 - IDLER PULLEY

2 - BOLT

Remove front timing belt covers. Refer to COVER(S)-TIMING BELT for procedure.
Remove timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - REMOVAL) .
Remove timing belt idler pulley (1). See Fig 1.

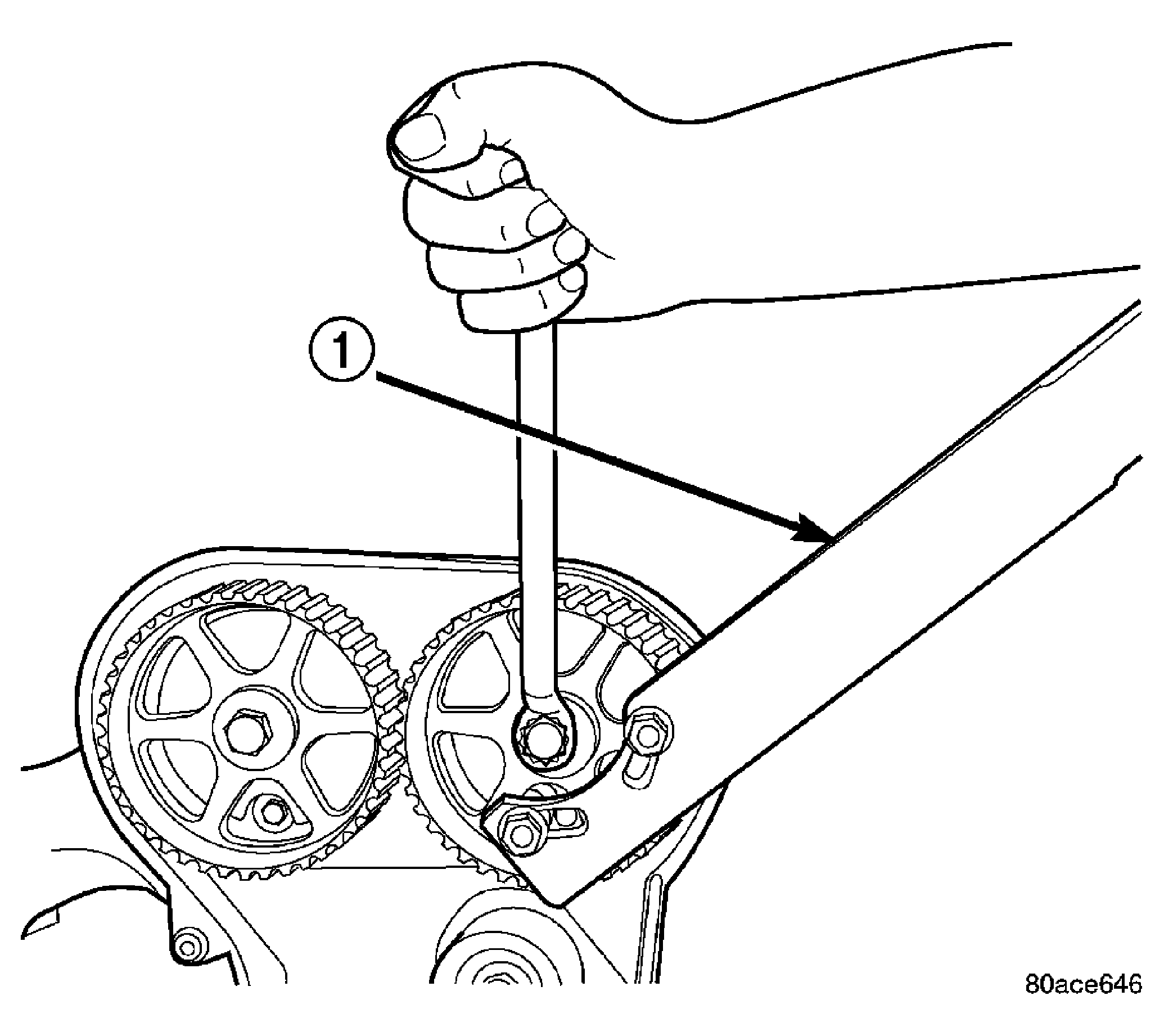

Fig 2: Camshaft Sprocket - Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.

1 - CAMSHAFT SPROCKET HOLDER 6847

Remove camshaft sprockets. Use Camshaft Sprocket Holder 6847 (1) to hold camshaft sprockets while removing the sprocket bolts. See Fig 2.

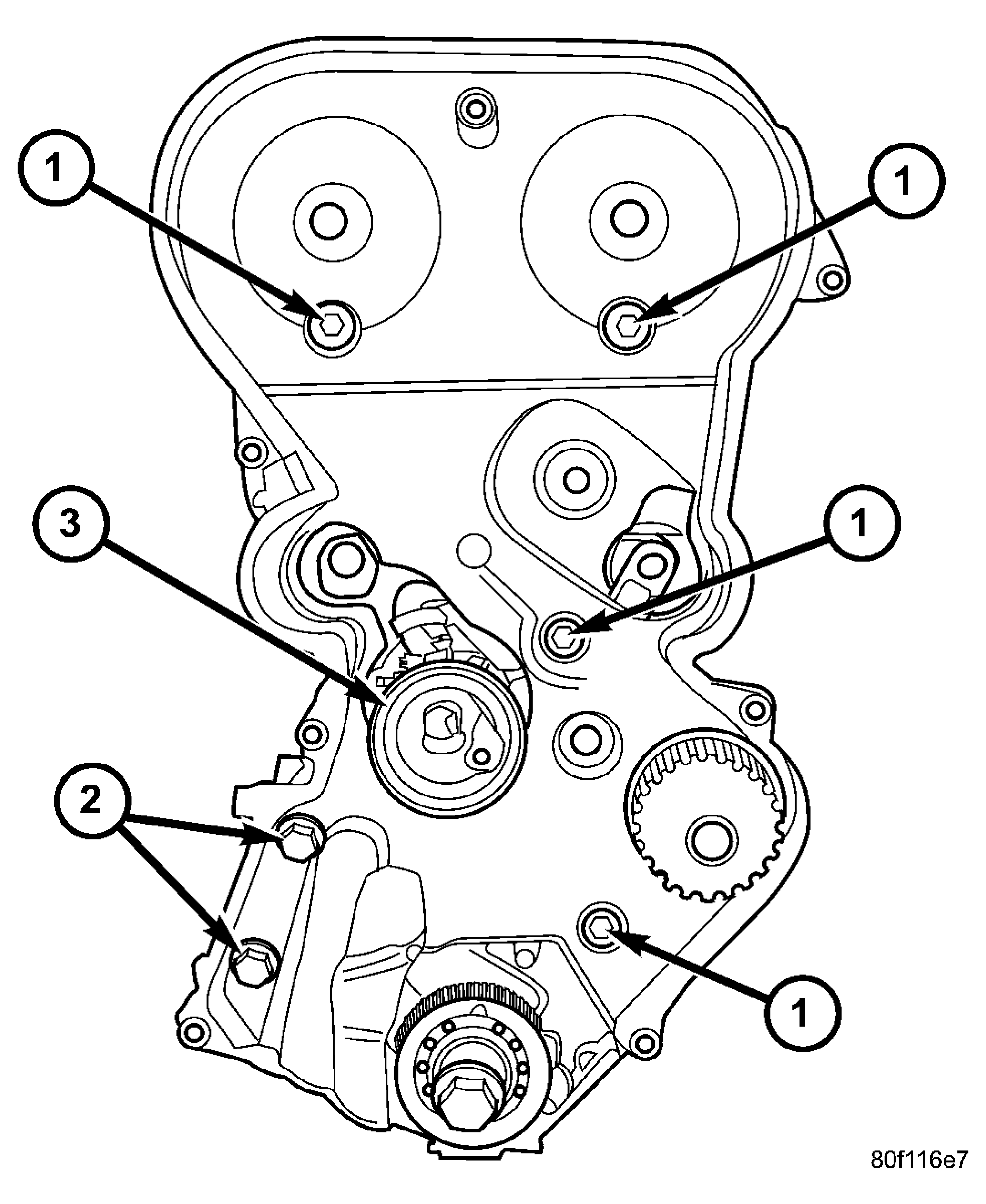

Fig 3: Rear Timing Belt Cover Fasteners

Courtesy of DAIMLERCHRYSLER CORP.

1 - M6 BOLTS - 12 N.m (105 in. lbs.)

2 - M8 BOLTS - 28 N.m (250 in. lbs.)

3 - TIMING BELT TENSIONER

Remove rear timing belt cover fasteners (1,2) and remove cover from engine. See Fig 3.
