Structural Collar - Manual Transaxle Equipped

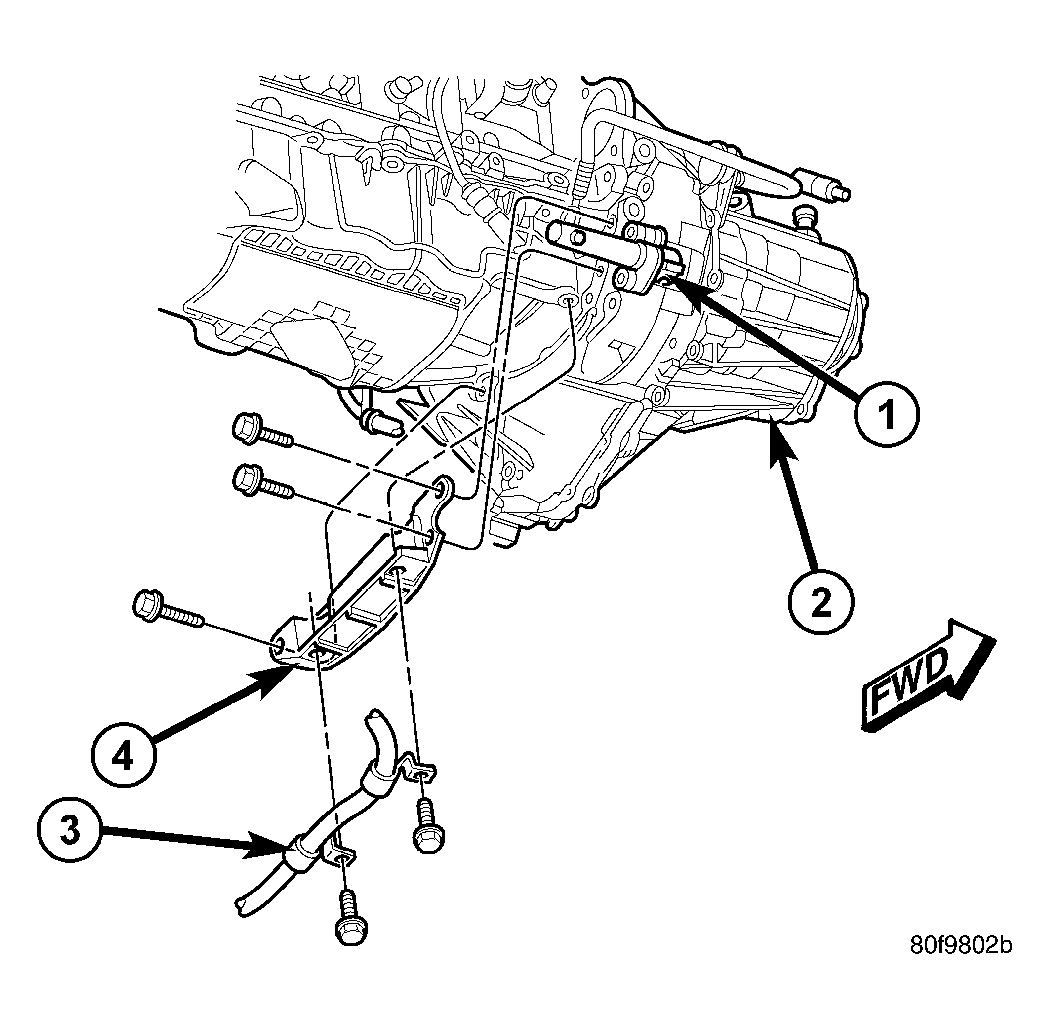

Fig 1: Structural Collar and Bending Strut - (Manual Transaxle Equipped)

Courtesy of DAIMLERCHRYSLER CORP.

1 - HYDRAULIC CLUTCH SLAVE CYLINDER

2 - TRANSAXLE

3 - POWER STEERING HOSE

4 - STRUCTURAL COLLAR

1. Raise vehicle on hoist.
2. Remove bolts attaching collar and clutch slave cylinder (1) to transaxle (2). See Fig 1.
3. Remove remaining bolts attaching structural collar (4) to oil pan and transaxle. See Fig 1. Remove structural collar (4).
