Crankshaft Sprocket

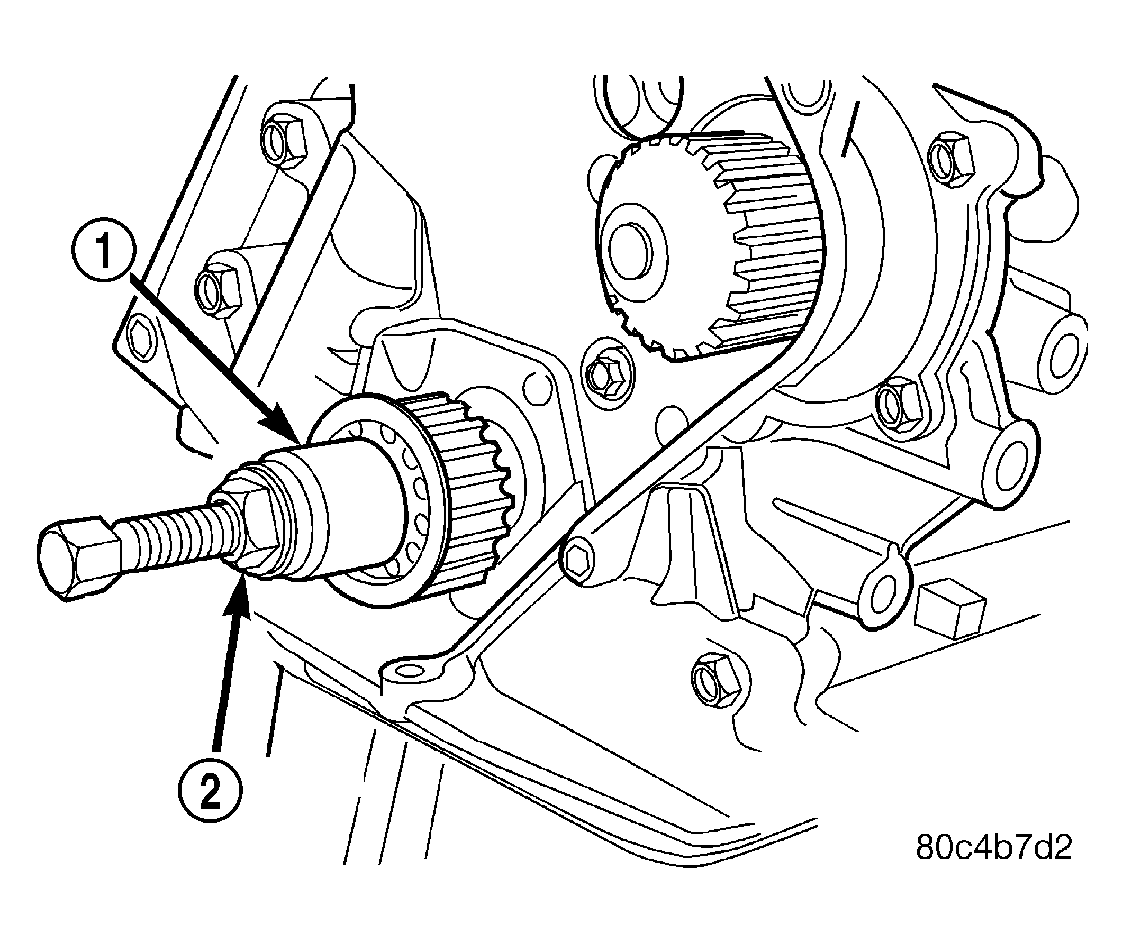

Fig 1: Crankshaft Sprocket - Installation
GC0021221Courtesy of DAIMLERCHRYSLER CORP.
1 - CRANKSHAFT DAMPER/SPROCKET INSTALLER 6792
2 - TIGHTEN NUT TO INSTALL
CAUTION: The crankshaft sprocket is set to a predetermined depth from the factory for correct timing belt tracking. If removed, use of Crankshaft Damper/Sprocket Installer 6792 is required to set the sprocket to original installation depth. An incorrectly installed sprocket will result in timing belt and engine damage.
  1. Install crankshaft sprocket using Crankshaft Damper/Sprocket Installer 6792 (1). See Fig 1.
  2. Install timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT - INSTALLATION)  .
  3. Install upper and lower front timing belt covers (Refer to ENGINE/VALVE TIMING/TIMING BELT COVER(S) - INSTALLATION  .
