Camshaft Sprocket(S)

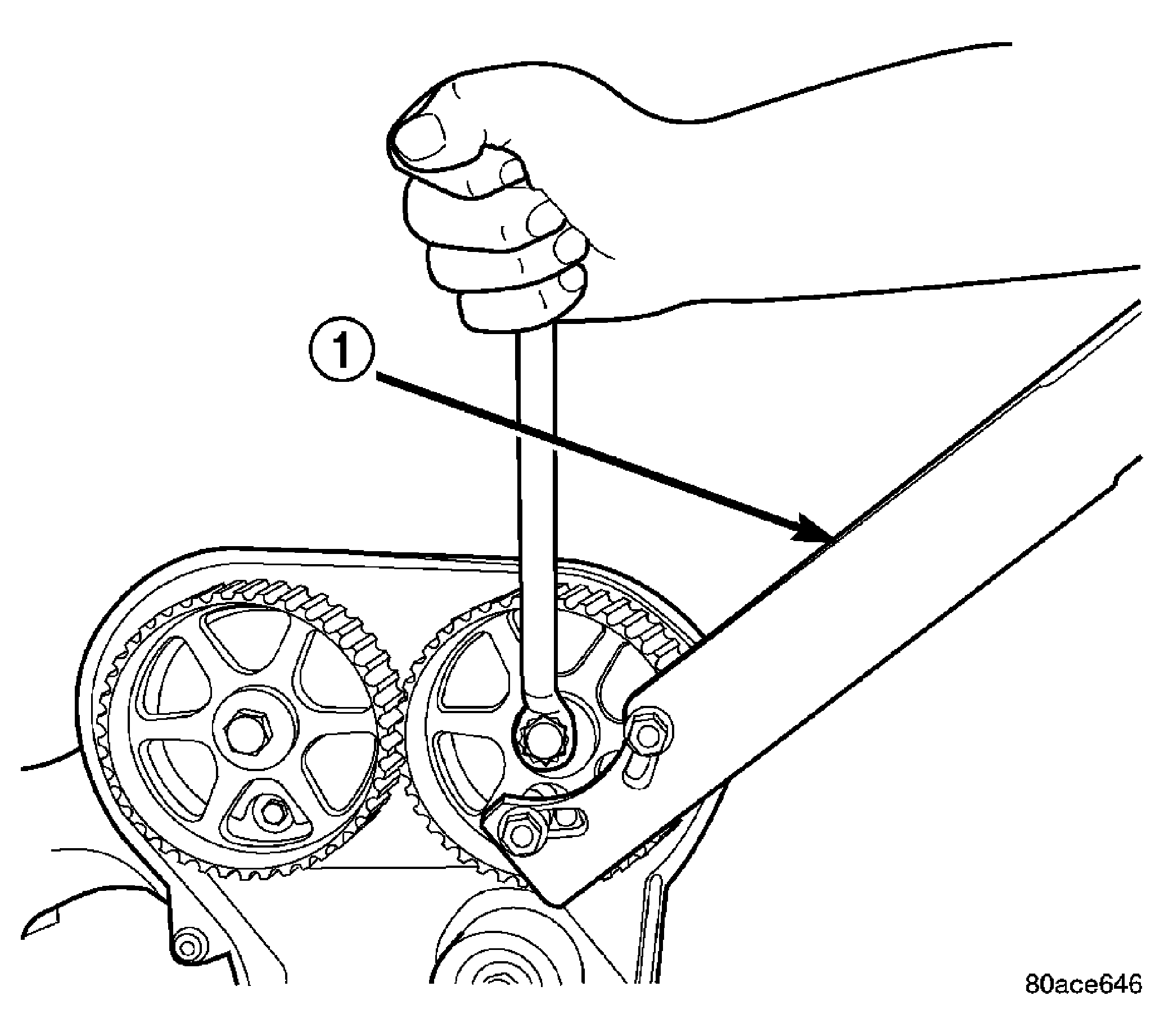

Fig 1: Camshaft Sprocket-Removal/Installation
GC0042918Courtesy of DAIMLERCHRYSLER CORP.
1 - CAMSHAFT SPROCKET HOLDER 6847
CAUTION: Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin may occur.
  1. Install camshaft sprockets. Hold sprockets with Camshaft Sprocket Holder 6847 (1) while tightening center bolt to 115 N.m (85 ft. lbs.). See Fig 1.
  2. Install timing belt (Refer to ENGINE/VALVE TIMING/TIMING BELT - INSTALLATION)  .
  3. Install upper and lower front timing belt covers (Refer to ENGINE/VALVE TIMING/TIMING BELT COVER(S) - INSTALLATION)  .
