Connecting Rod - Fitting

Fig 1: Connecting Rod Bearing Clearance - Typical
GC0042818Courtesy of DAIMLERCHRYSLER CORP.
  1. For measuring connecting rod bearing clearance procedure and use of Plastigage (Refer to ENGINE - STANDARD PROCEDURE) . For bearing clearance, (Refer to ENGINE - SPECIFICATIONS) .
    NOTE: The rod bearing bolts should not be reused.
  2. Before installing the NEW  bolts the threads should be oiled with clean engine oil.
  3. Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.
  4. Tighten the connecting rod bolts using the 2 step torque-turn method. Tighten according to the following values:
    CAUTION: Do not use a torque wrench for the second step.
    1. Tighten the bolts to 27 N.m (20 ft. lbs.).
    2. Tighten the connecting rod bolts an additional 1/4 TURN  .

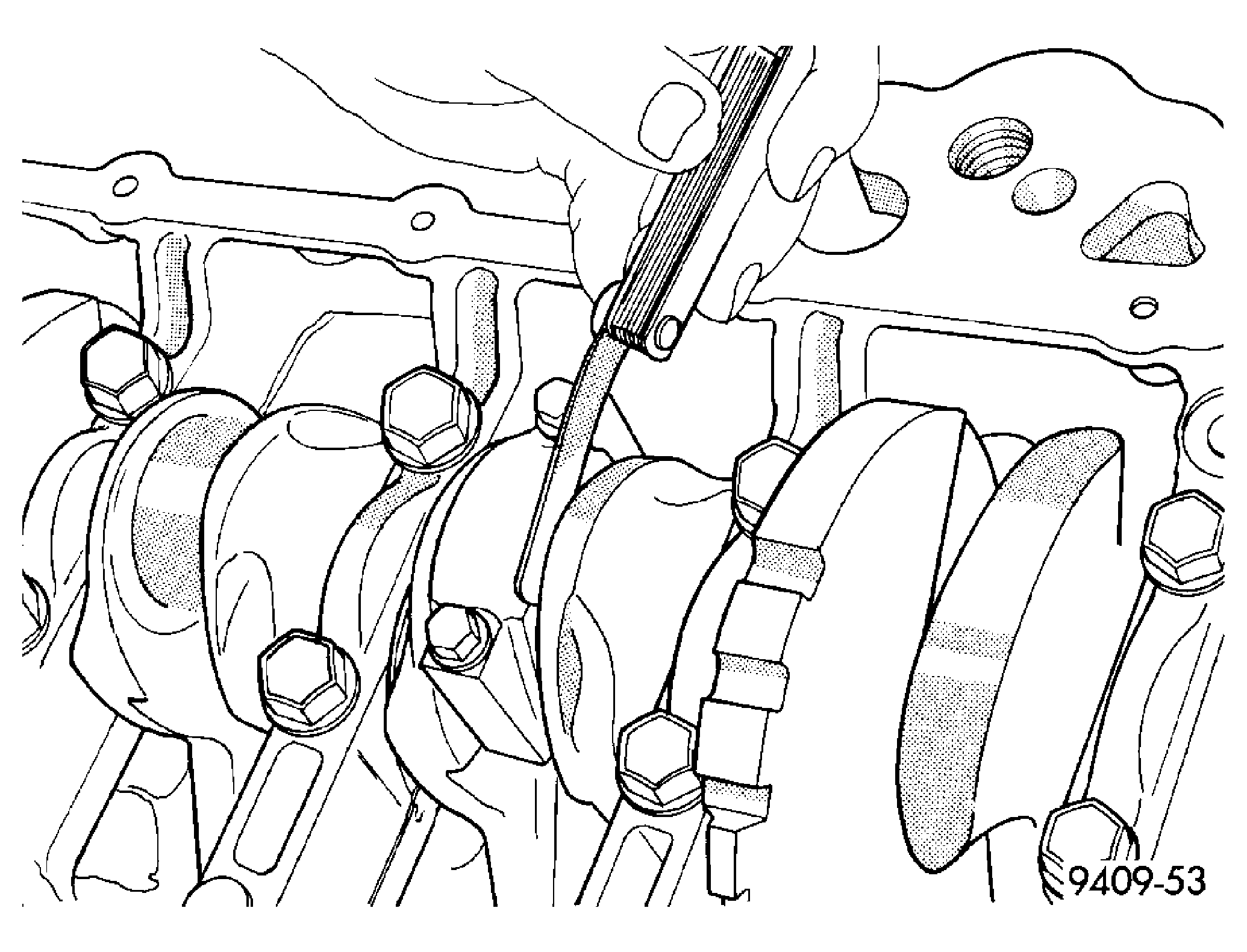

    Fig 2: Checking Connecting Rod Side Clearance - Typical
    GC0021091Courtesy of DAIMLERCHRYSLER CORP.
  5. Using a feeler gauge, check connecting rod side clearance. See Fig 2. Refer to clearance specifications, (Refer to ENGINE - SPECIFICATIONS)  .
