Lines-Oil Cooler: Description

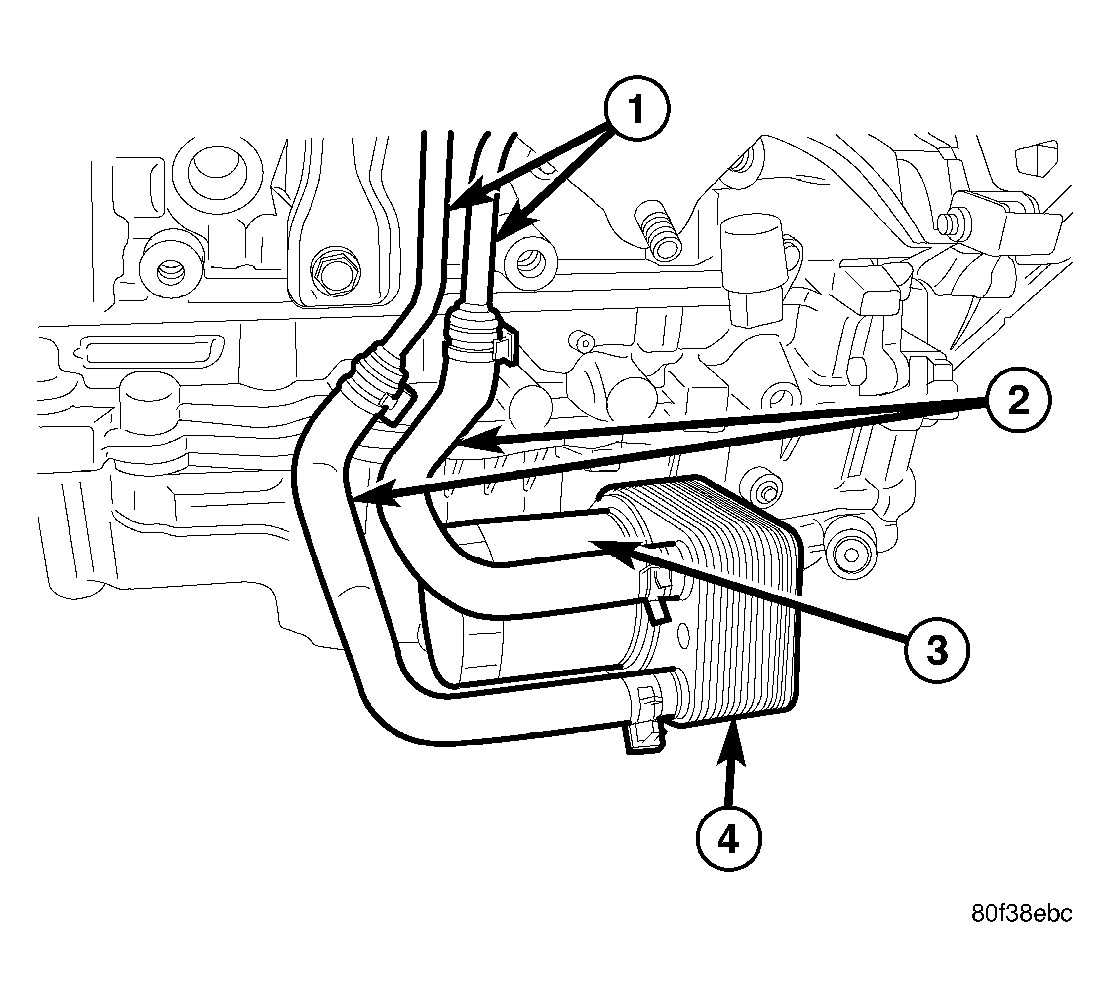

Fig 1: Oil Cooler and Lines
GC0042857Courtesy of DAIMLERCHRYSLER CORP.
1 - COOLANT TUBES
2 - COOLANT HOSES
3 - OIL FILTER
4 - OIL COOLER

An engine oil cooler (4) is used on the 2.4L Turbocharged engine. The cooler is a coolant-to-oil type and mounted between the oil filter and oil filter adapter. See Fig 1.
