Upper Torque Strut

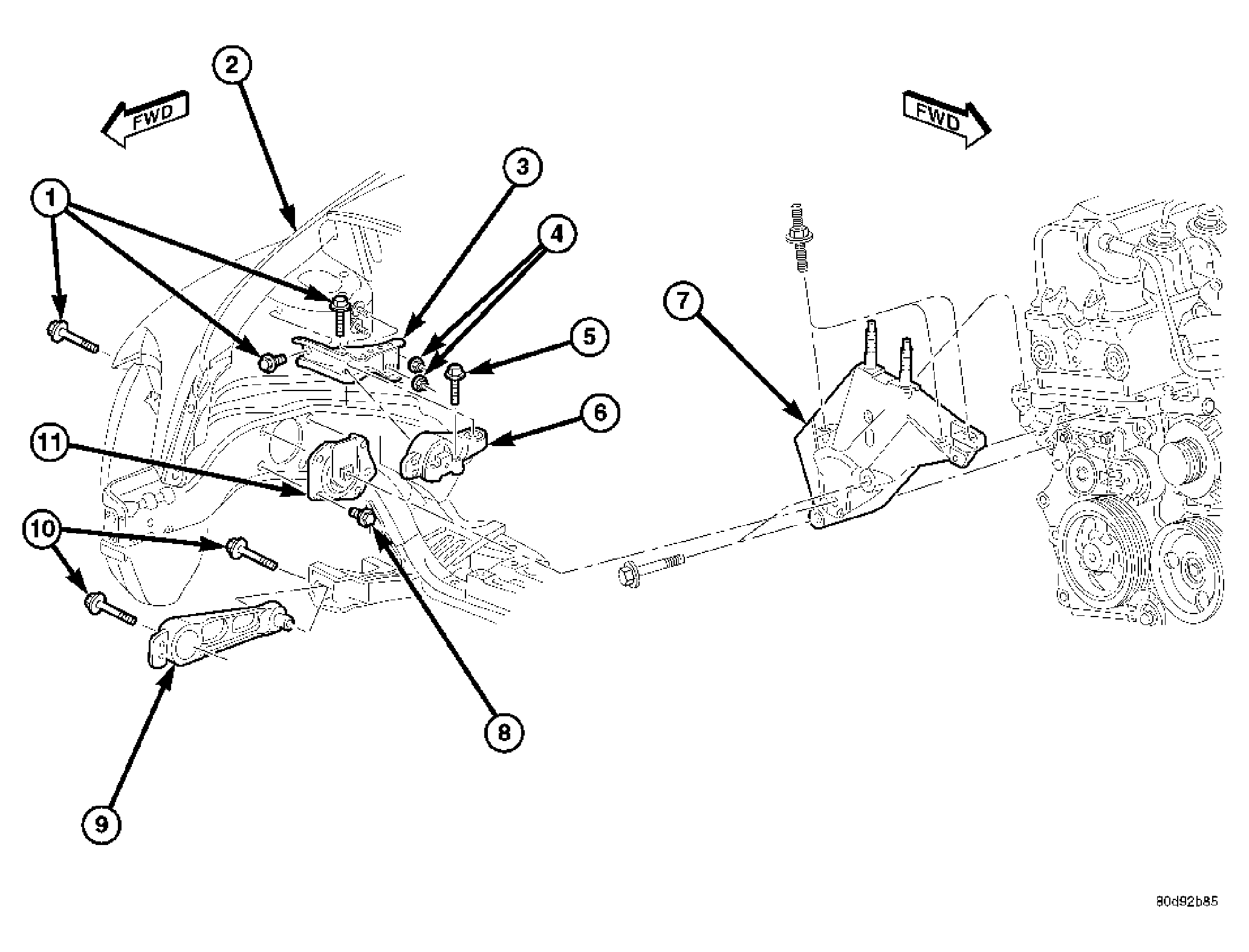

Fig 1: Engine Mounting - Right Side

Courtesy of DAIMLERCHRYSLER CORP.

1 - BOLTS

2 - RIGHT FENDER

3 - UPPER TORQUE STRUT BRACKET

4 - NUTS

5 - BOLT

6 - UPPER TORQUE STRUT

7 - ENGINE MOUNT BRACKET

8 - BOLT

9 - LOWER TORQUE STRUT

10 - BOLT

11 - RIGHT ENGINE MOUNT

Position the upper torque strut (6) into mounting locations. See Fig 1.
Install the mounting bolts.
Perform torque strut adjustment procedure (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - ADJUSTMENTS) .
