Seal-Spark Plug Tube: Installation

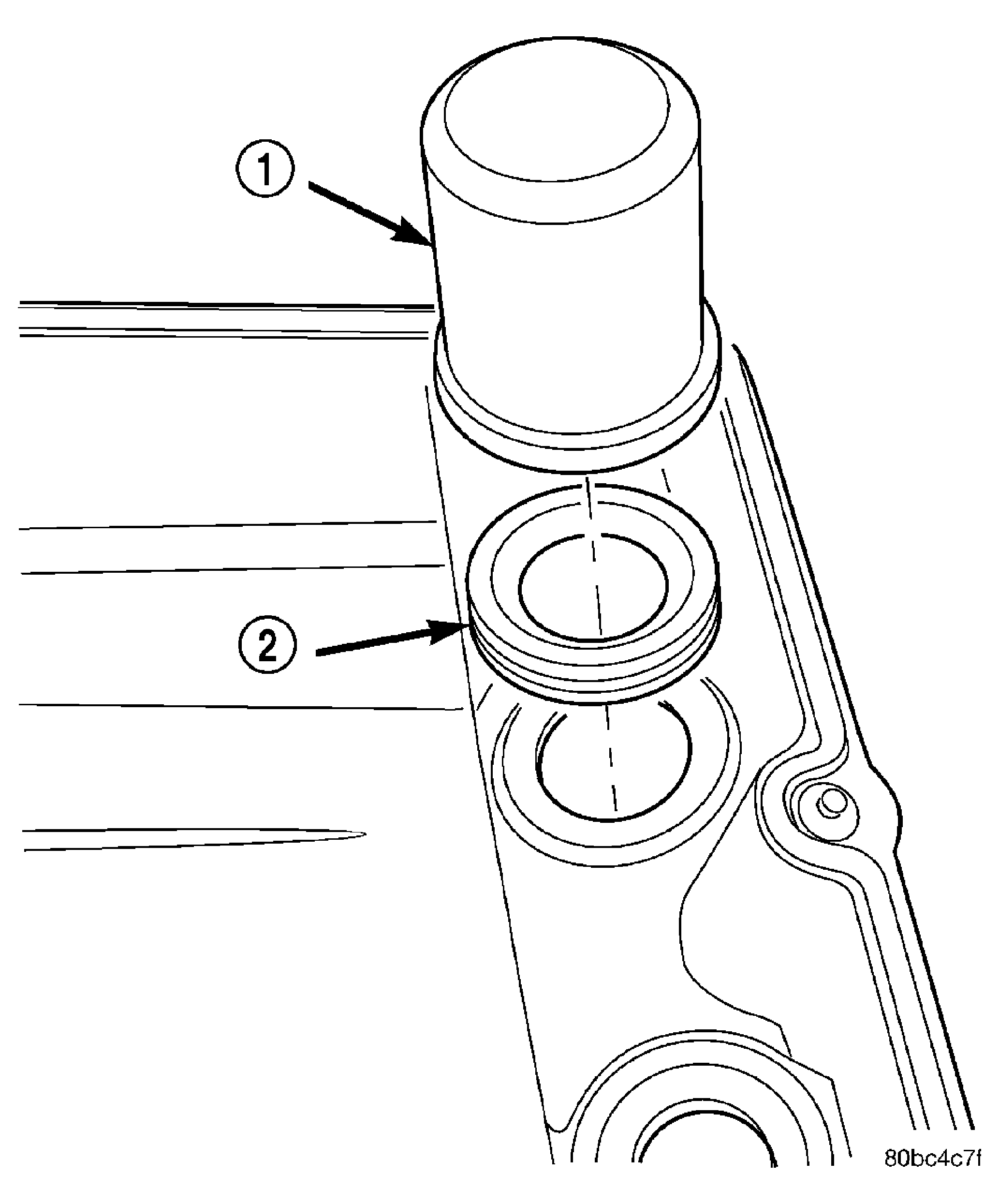

Fig 1: Spark Plug Tube Seal Installation
GC0021484Courtesy of DAIMLERCHRYSLER CORP.
1 - SPECIAL TOOL MD-998306
2 - SPARK PLUG TUBE SEAL
  1. Clean all sealing surfaces.
    NOTE: Position seal with the concave side facing the installation tool. See Fig 1.
  2. Install seals (2) using Special Tool MB-998306 (1). See Fig 1. Only hand pressure on tool is needed to install new seals.
  3. Install the cylinder head cover (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER - INSTALLATION)  .
