Seal-Crankshaft Oil Rear: Removal

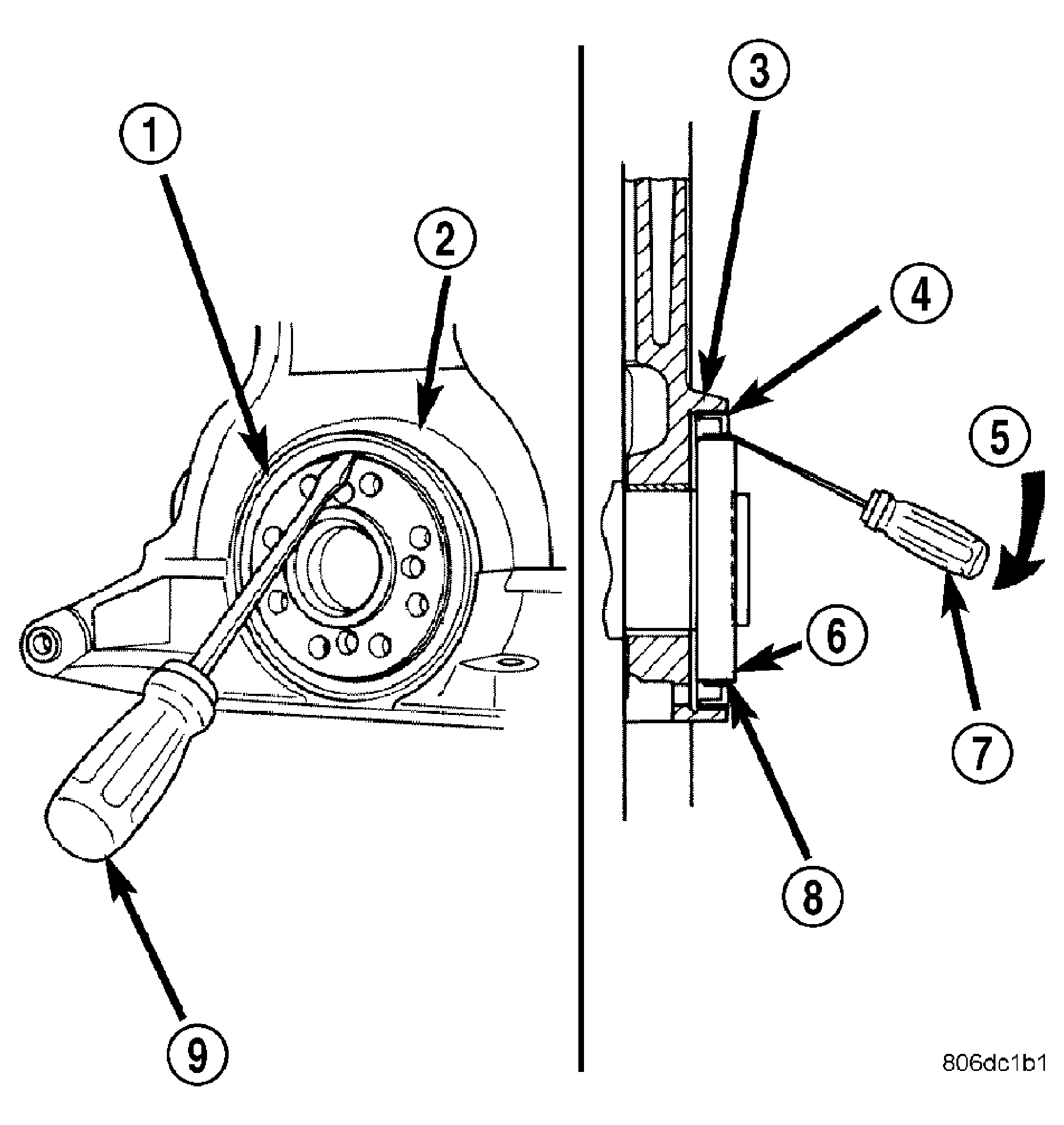

Fig 1: Crankshaft Rear Oil Seal - Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR CRANKSHAFT SEAL

2 - ENGINE BLOCK

3 - ENGINE BLOCK

4 - REAR CRANKSHAFT SEAL METAL CASE

5 - PRY IN THIS DIRECTION

6 - CRANKSHAFT

7 - SCREWDRIVER

8 - REAR CRANKSHAFT SEAL DUST LIP

9 - SCREWDRIVER

Remove transaxle (Refer to TRANSMISSION/TRANSAXLE/MANUAL - REMOVAL) .
Remove clutch and pressure plate.
Remove flywheel.
Insert a 3/16 flat bladed screwdriver between the dust lip and the metal case of the crankshaft seal. Angle the screwdriver through the dust lip against metal case of the seal. Pry out seal. See Fig 1.

CAUTION: Do not permit the screwdriver blade to contact crankshaft seal surface. Contact of the screwdriver blade against crankshaft edge (chamfer) is permitted.
