1.6L SOHC Engine: Pump-Oil: Removal

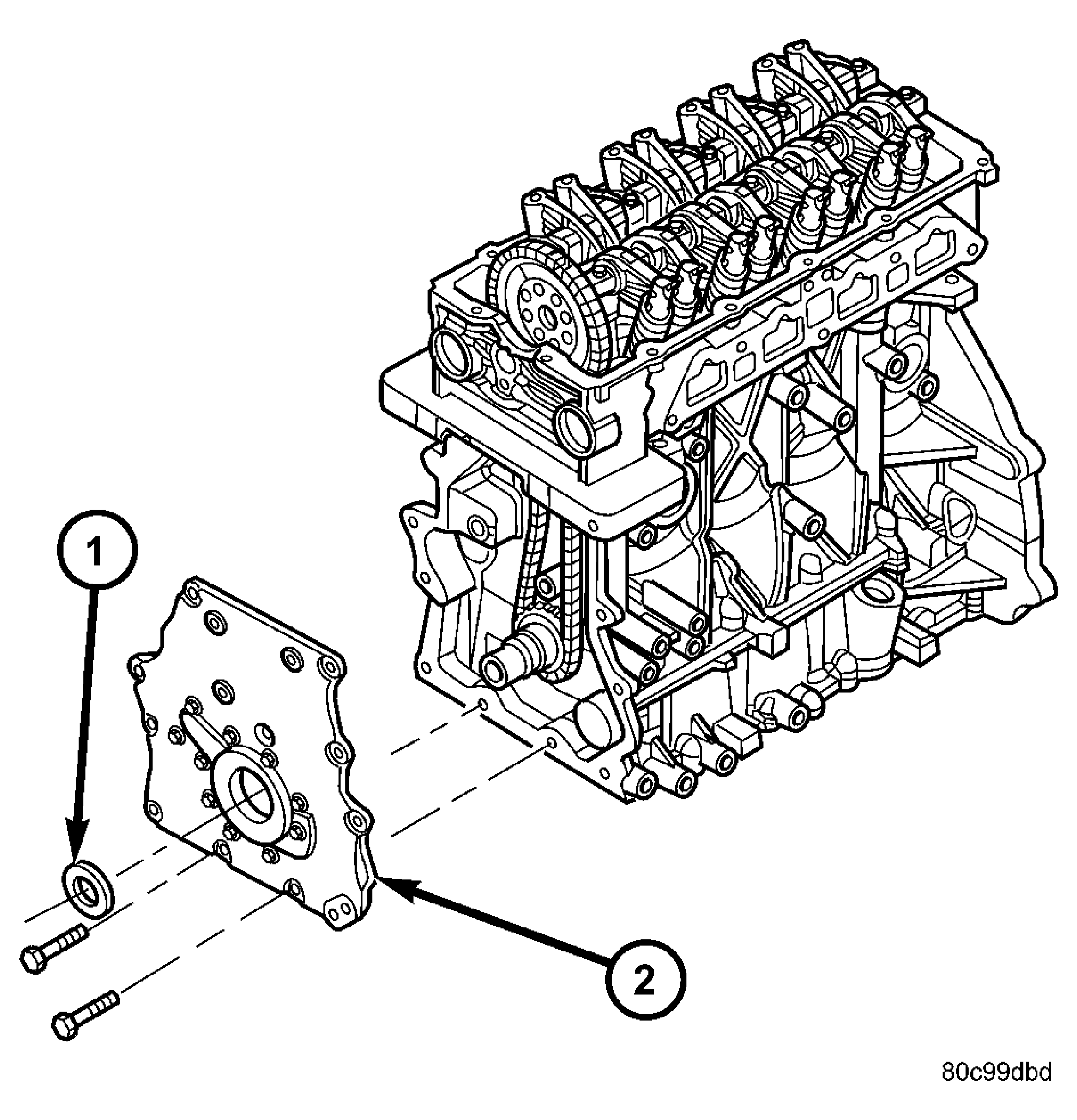

Fig 1: Timing Chain Cover
GC0021562Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT CRANKSHAFT OIL SEAL
2 - TIMING CHAIN COVER
  1. Remove timing chain cover (2) (Refer to ENGINE/VALVE TIMING/TIMING CHAIN COVER - REMOVAL)  .

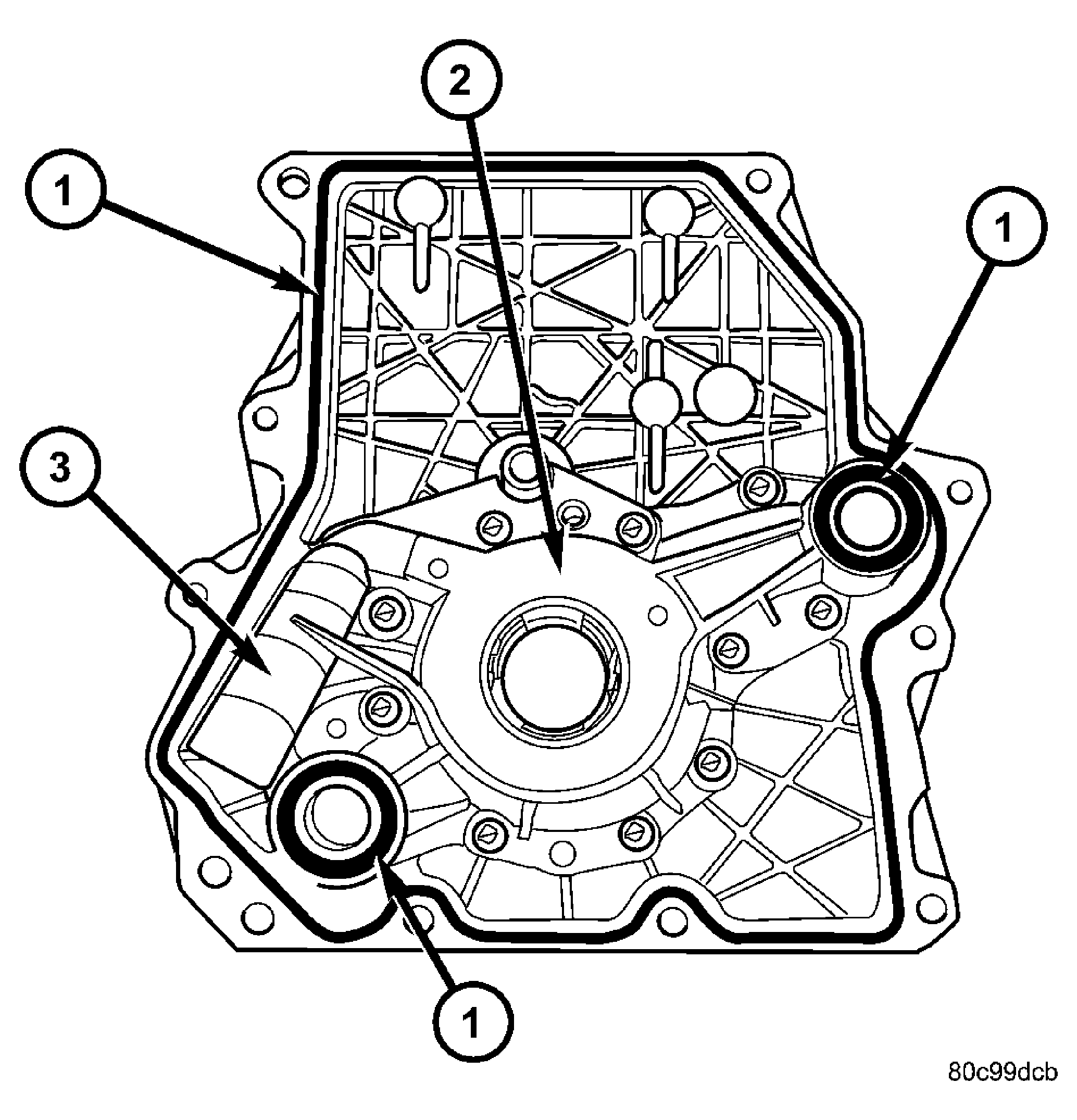

    Fig 2: Locating Timing Chain Cover Seals & Oil Pump
    GC0021544Courtesy of DAIMLERCHRYSLER CORP.
    1 - TIMING CHAIN COVER SEALS
    2 - OIL PUMP
    3 - PRESSURE RELIEF VALVE
  2. Remove oil pump assembly (2). See Fig 2.
