Upper Intake Manifold

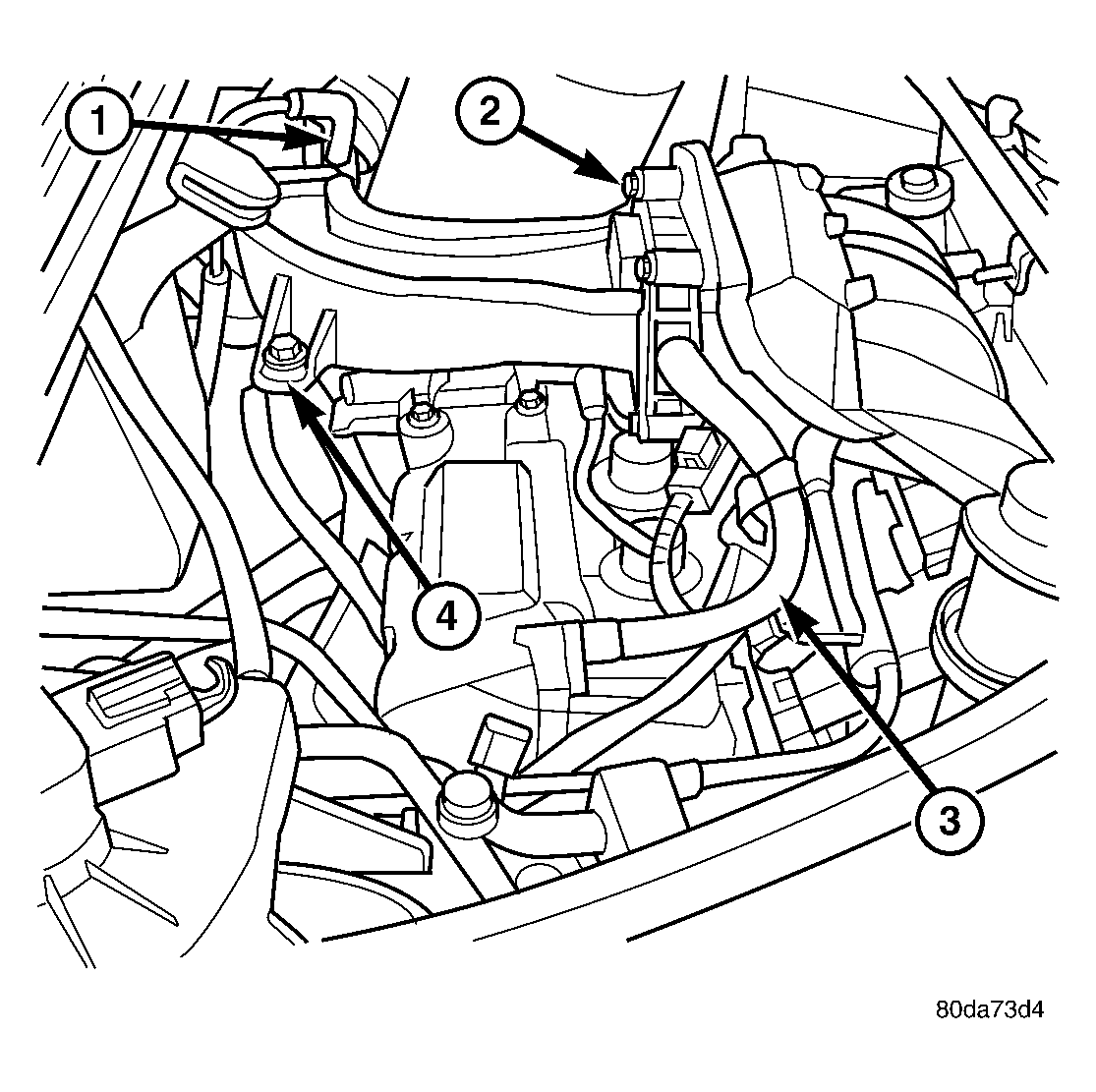

Fig 1: Upper Intake Manifold
GC0021555Courtesy of DAIMLERCHRYSLER CORP.
1 - PURGE SOLENOID VACUUM HOSE
2 - UPPER INTAKE FASTENERS
3 - PCV HOSE
4 - MANIFOLD SUPPORT BRACKET FASTENERS
  1. Position the upper intake manifold and gasket.
  2. Install upper intake manifold fasteners (2). Tighten to 12 N.m (105 in. lbs.).
  3. Install upper intake manifold support bracket fasteners (4). See Fig 1. Tighten M6 fasteners to 19 N.m (165 in. lbs.) and M8 fasteners to 28 N.m (250 in. lbs.).
  4. Connect PCV hose (3) to upper intake manifold. See Fig 1.
  5. Connect brake booster vacuum hose.
  6. Connect electronic throttle control motor electrical connector.
  7. Connect throttle body air inlet hose and purge solenoid vacuum hose (1) to throttle body. See Fig 1.
  8. Connect negative battery cable.
