1.6L SOHC Engine: Manifold-Exhaust: Removal

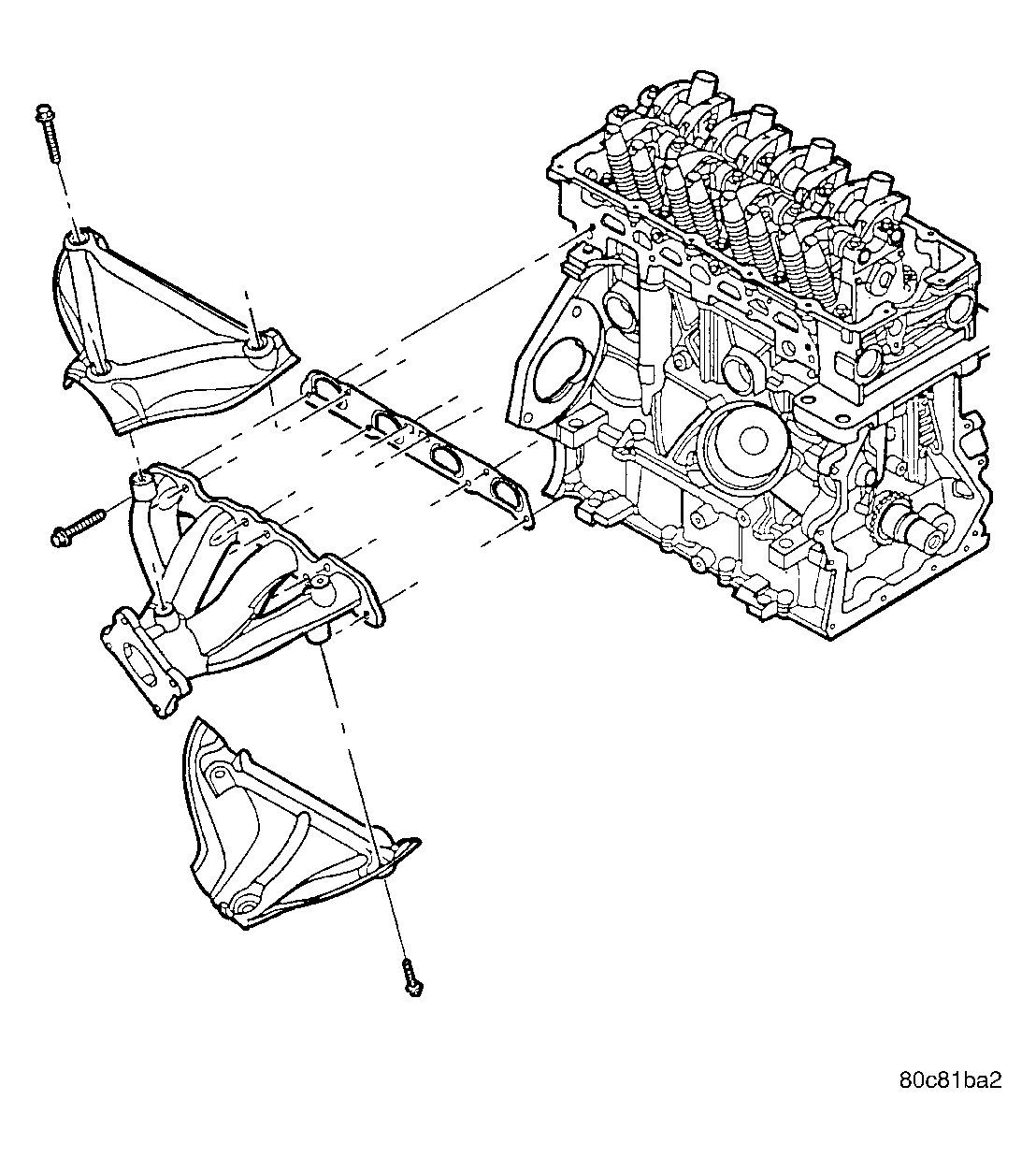

Fig 1: Exhaust Manifold, Heat Shield & Gasket

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect negative battery cable.
2. Disconnect ignition coil and capacitor electrical connectors.
3. Remove ignition coil and plug wires (Refer to ELECTRICAL/IGNITION CONTROL/IGNITION COIL - REMOVAL) .
4. Raise vehicle on hoist.
5. Disconnect exhaust pipe from exhaust manifold.

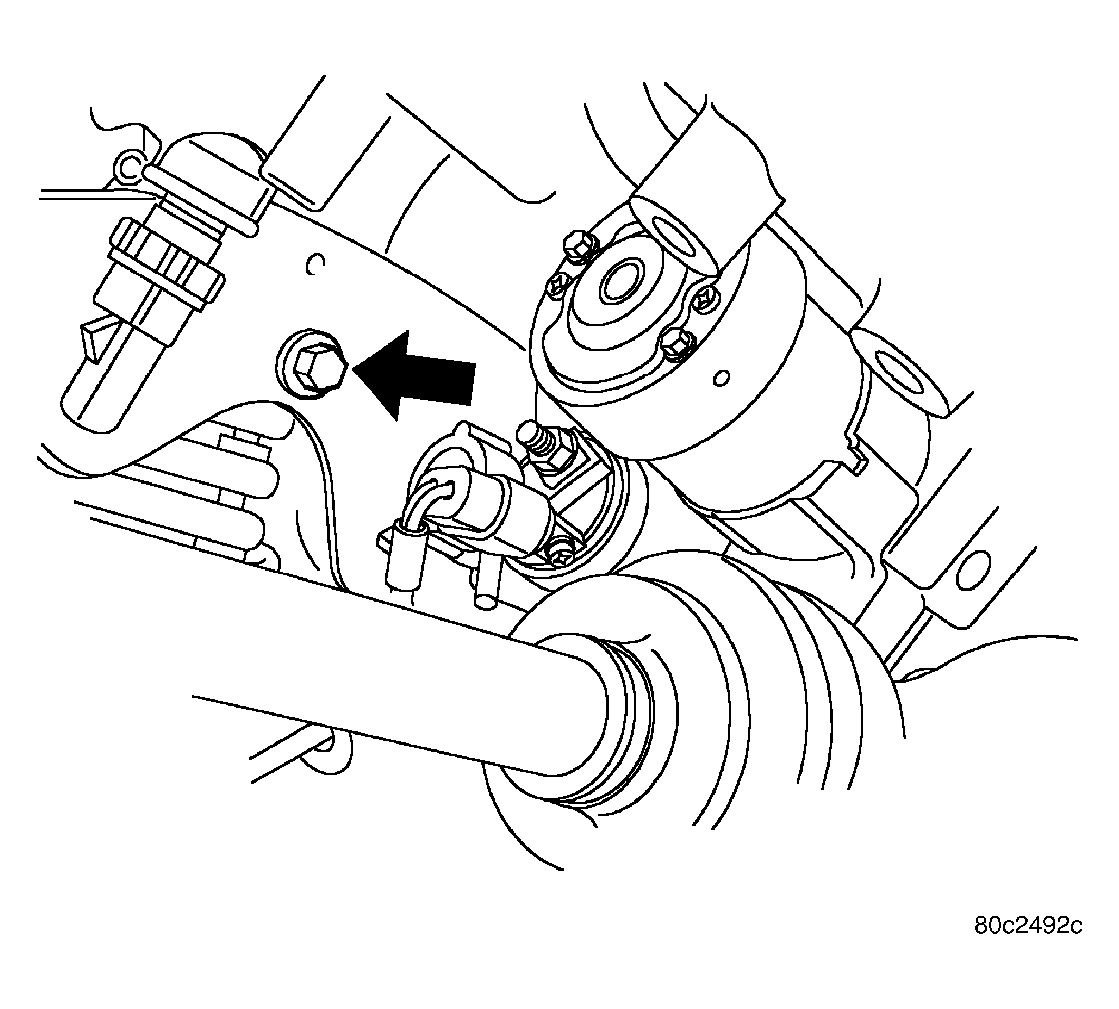

   Fig 2: Heat Shield Bolt

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove starter heat shield bolt. See Fig 2.
7. Lower vehicle.
   Fig 3: Exhaust Manifold, Heat Shield, and Gasket

   Courtesy of DAIMLERCHRYSLER CORP.
8. Remove exhaust manifold upper heat shield bolts and remove heat shield.
9. Remove exhaust manifold bolts and remove manifold.
