Housing-Air Cleaner: Installation

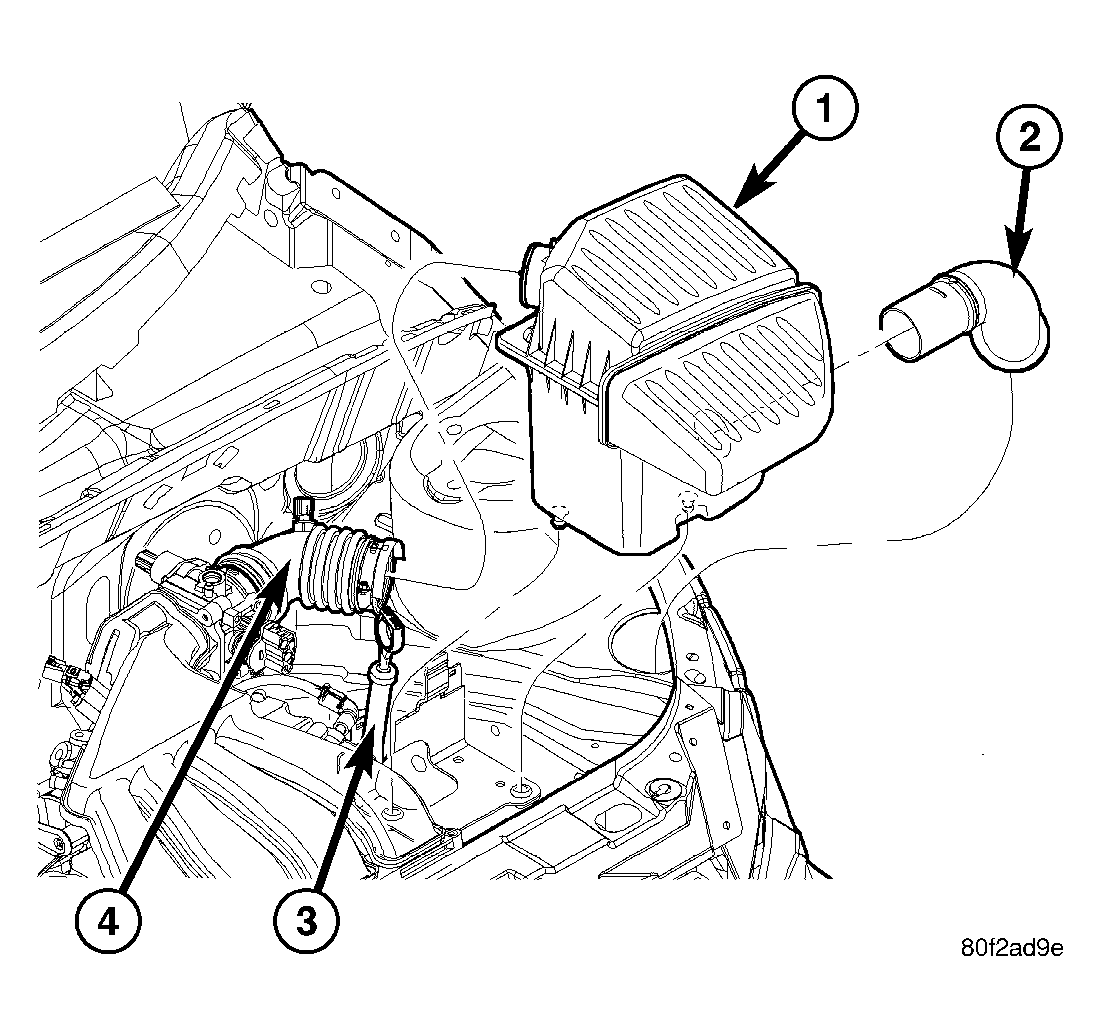

Fig 1: Air Cleaner Housing
GC0021466Courtesy of DAIMLERCHRYSLER CORP.
  1. Install air cleaner housing (1) onto the locating pins.
    Fig 2: Identifying Air Cleaner Housing Cover & Element
    GC0021465Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the air cleaner element (2).
  3. Install the inlet tube onto the throttle body.
  4. Install cover (1) to the air cleaner housing.
  5. Latch the 2 spring clips.
  6. Connect the electrical connector to the inlet air temperature sensor.
