Cylinder Head: Inspection

Fig 1: Checking Cylinder Head Flatness

Courtesy of DAIMLERCHRYSLER CORP.

1 - FEELER GAUGE

2 - STRAIGHT EDGE

Cylinder head must be flat within 0.1 mm (0.004 in.). Check in several places using a straight edge (2) and feeler gauges (1).

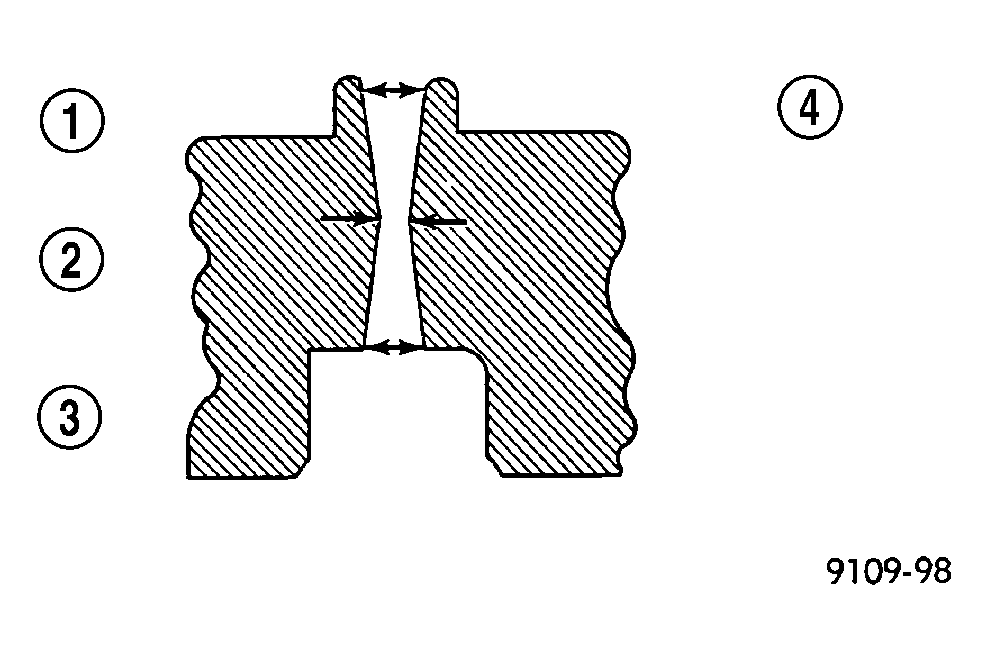

Fig 2: Checking Wear on Valve Guide-Typical
Courtesy of DAIMLERCHRYSLER CORP.
Inspect camshaft bearing journals for scoring.
Remove carbon and varnish deposits from inside of valve guides with a reliable guide cleaner.
Using a small hole gauge and a micrometer, measure valve guides in 3 places top (1), middle (2) and bottom (3). (Refer to ENGINE - SPECIFICATIONS) . Replace cylinder head if they are not within specification.
