1.6L SOHC Engine: Crankshaft: Notes

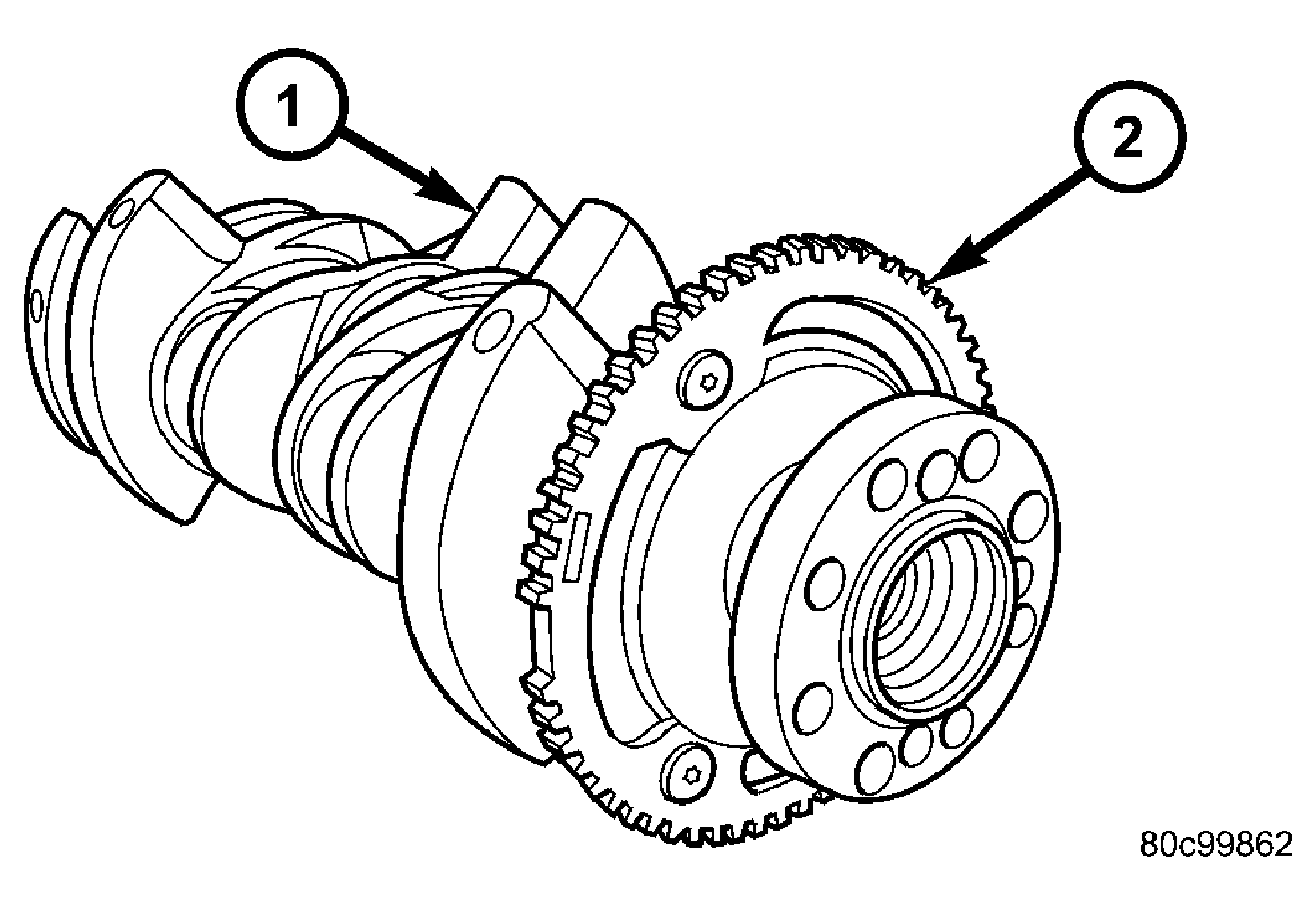

Fig 1: Crankshaft

Courtesy of DAIMLERCHRYSLER CORP.

The crankshaft (1) is made of nodular cast iron and includes five main bearing journals and four connecting rod journals. See Fig 1. The number three journal is the location for the thrust bearing. The crankshaft utilizes a replaceable tonewheel (2) for crankshaft position sensor function.
