Crankshaft Sprocket

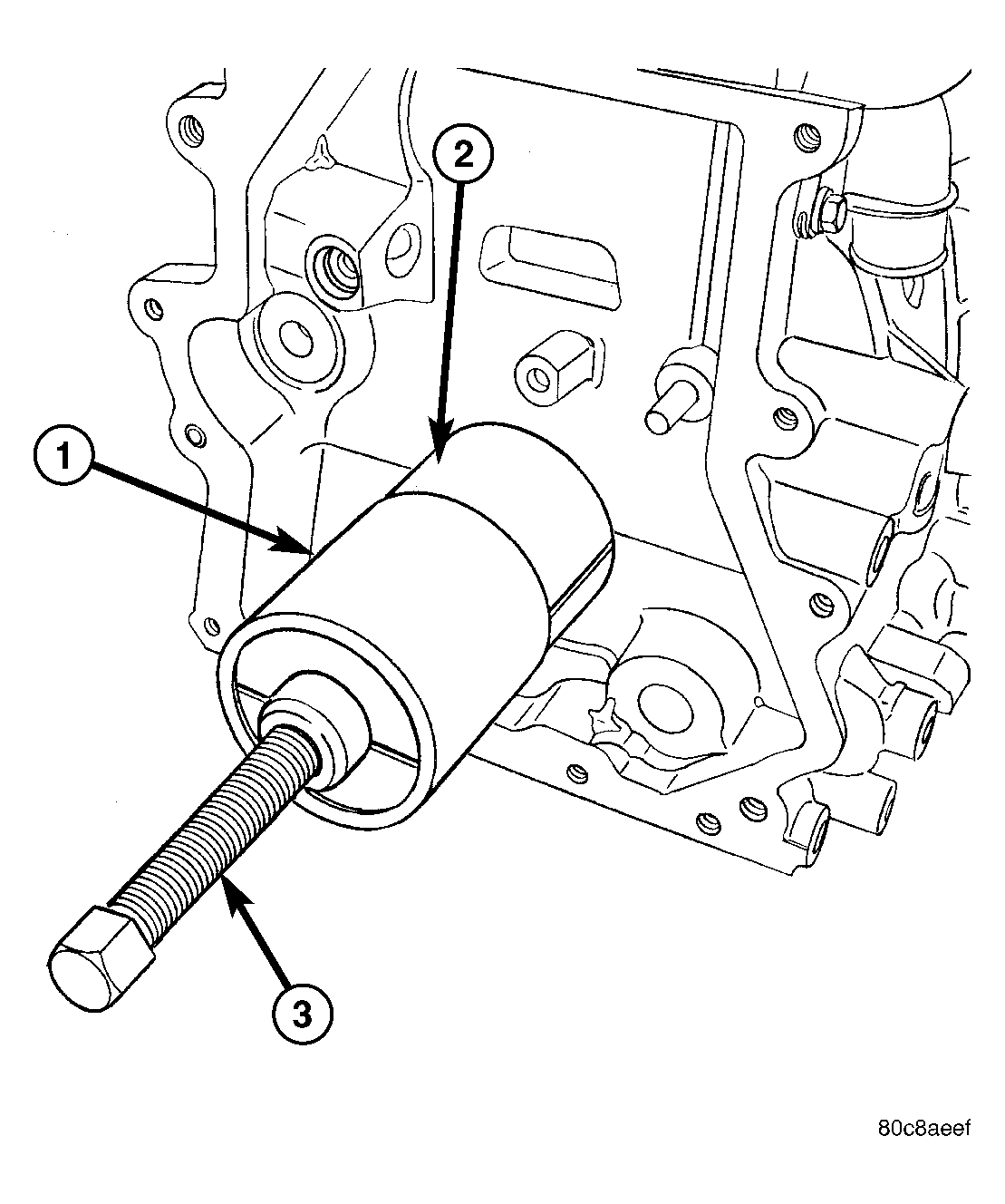

Fig 1: Crankshaft Sprocket Removal
GC0021566Courtesy of DAIMLERCHRYSLER CORP.
1 - PULLER 5048-6
2 - PULLER ADAPTER 8539
3 - PULLER 5048-1
  1. Remove timing chain (Refer to ENGINE/VALVE TIMING/TIMING CHAIN - REMOVAL)  .
  2. Remove crankshaft sprocket by first installing crankshaft vibration damper bolt. Apply grease or equivalent to damper bolt head and position Puller 5048-1 (3), 5048-6 (1), and Puller Adapter 8539 (2) on sprocket and crankshaft nose. See Fig 1.
  3. Remove sprocket using care not to rotate the crankshaft.
