Crankshaft Sprocket

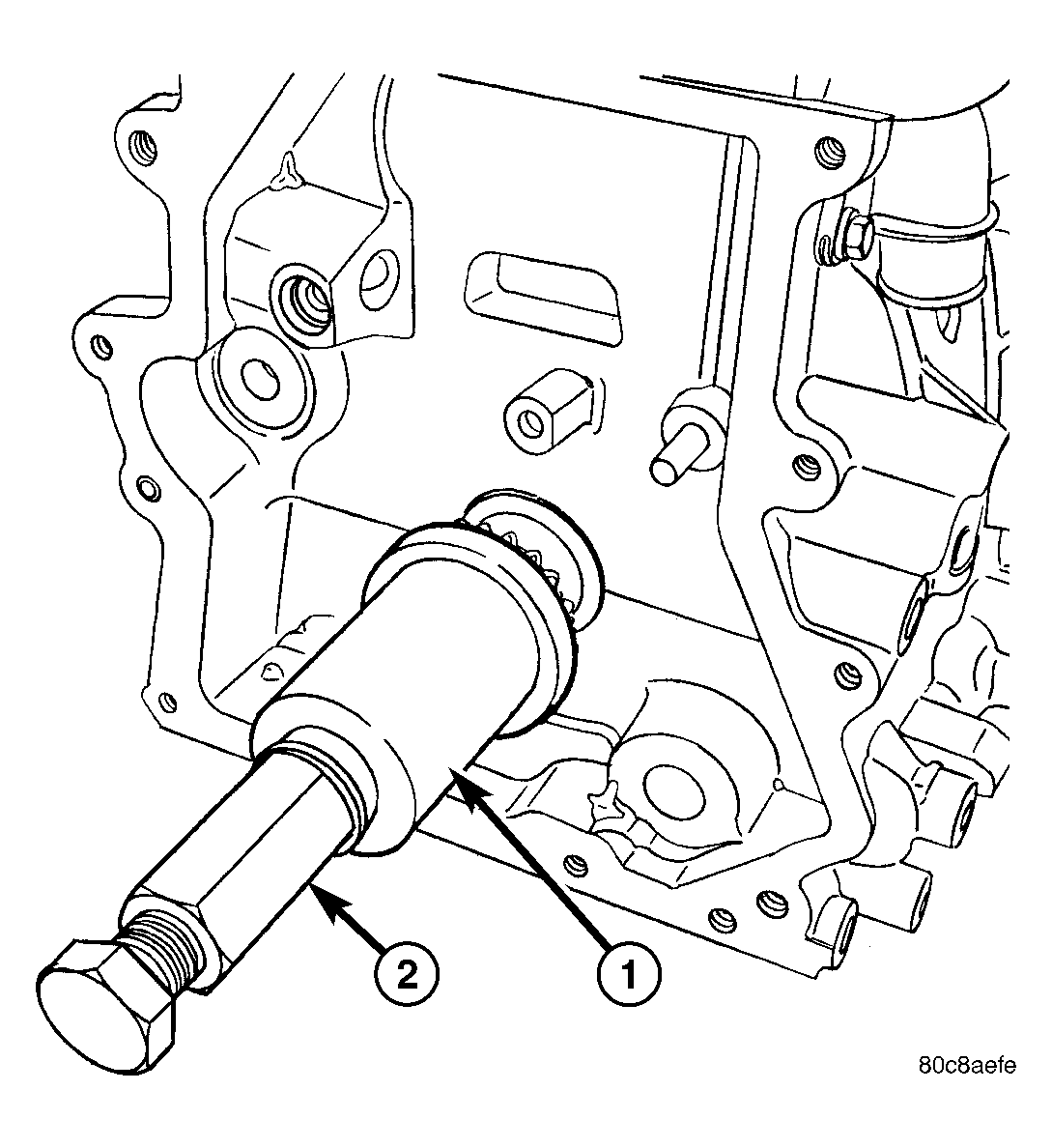

Fig 1: Crankshaft Sprocket Installation
GC0021567Courtesy of DAIMLERCHRYSLER CORP.
1 - CRANKSHAFT SPROCKET INSTALLER 8386
2 - CRANKSHAFT DAMPER/SPROCKET INSTALLER 8385
  1. Install crankshaft sprocket using Special Tools Crankshaft Damper/Sprocket Installer 8385 and Crankshaft Sprocket Installer 8386. See Fig 1.
  2. Install sprocket using care not to rotate the crankshaft.
