Exhaust System & Turbocharger: WASTEGATE: Description

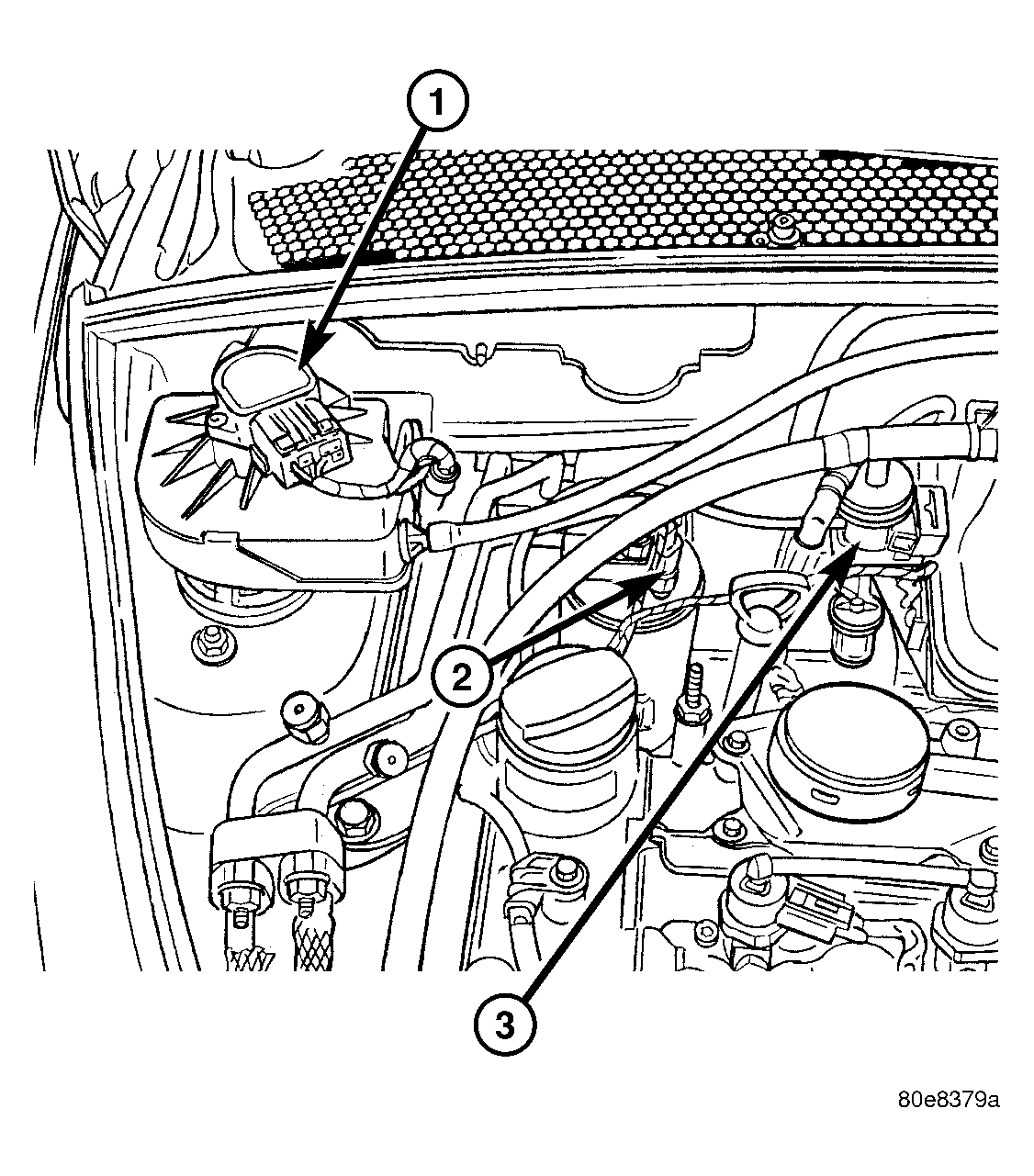

Fig 1: WASTEGATE SOLENOID LOCATION

Courtesy of DAIMLERCHRYSLER CORP.

1 - ACCELERATOR PEDAL POSITION SENSOR

2 - A/C PRESSURE SENSOR

3 - WASTEGATE SOLENOID

The wastegate solenoid (3) is used to send a vacuum signal which controls the wastegate actuator on the turbocharger. See Fig 1.
