Solenoids And Vacuum Harness: Removal

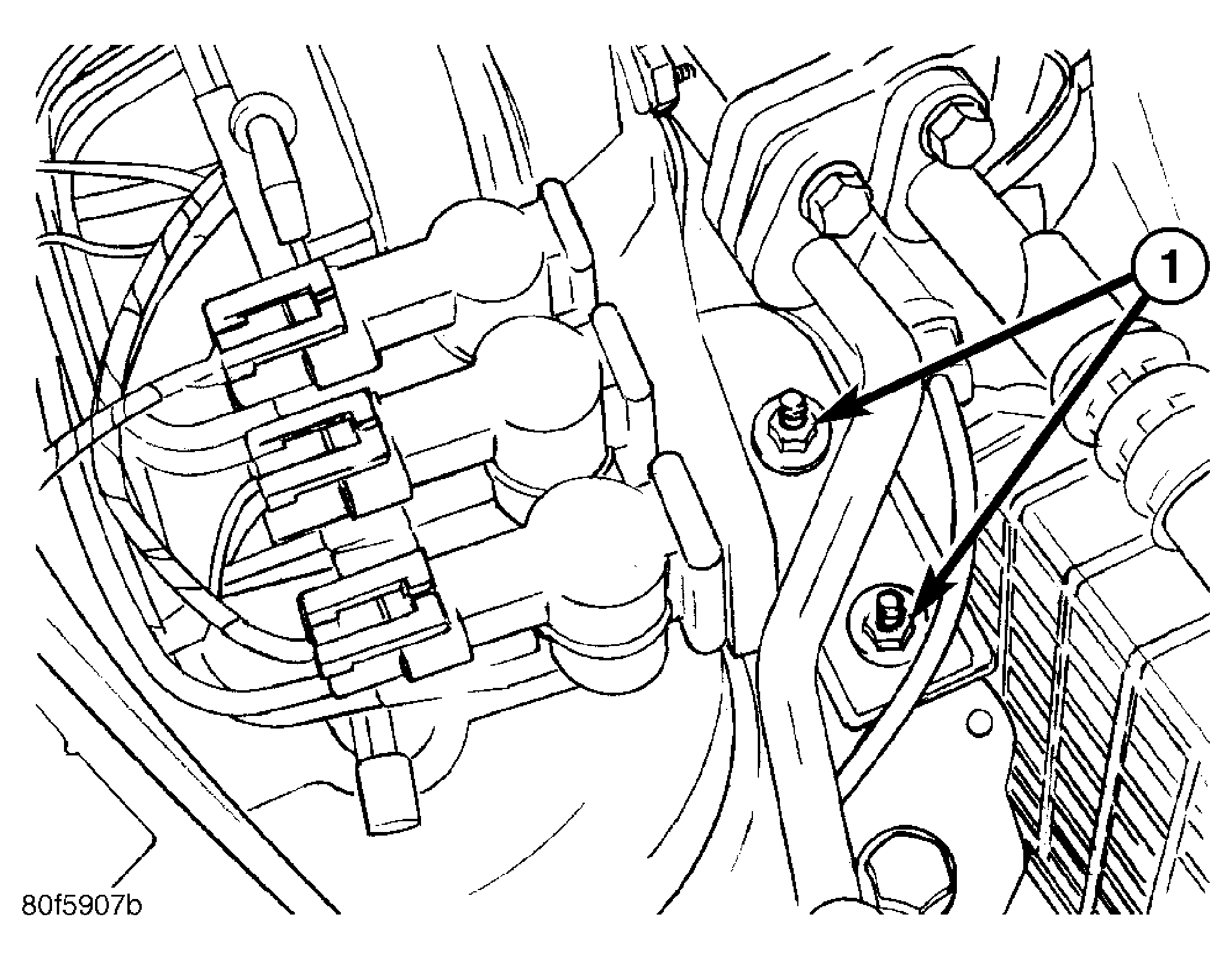

Fig 1: Solenoid Mounting Bracket

Courtesy of DAIMLERCHRYSLER CORP.

1 - NUTS

1. Remove nuts (1) securing solenoid mounting bracket to shock tower.
2. Disconnect solenoid electrical connector.
3. Disconnect vacuum harness connector from solenoid.

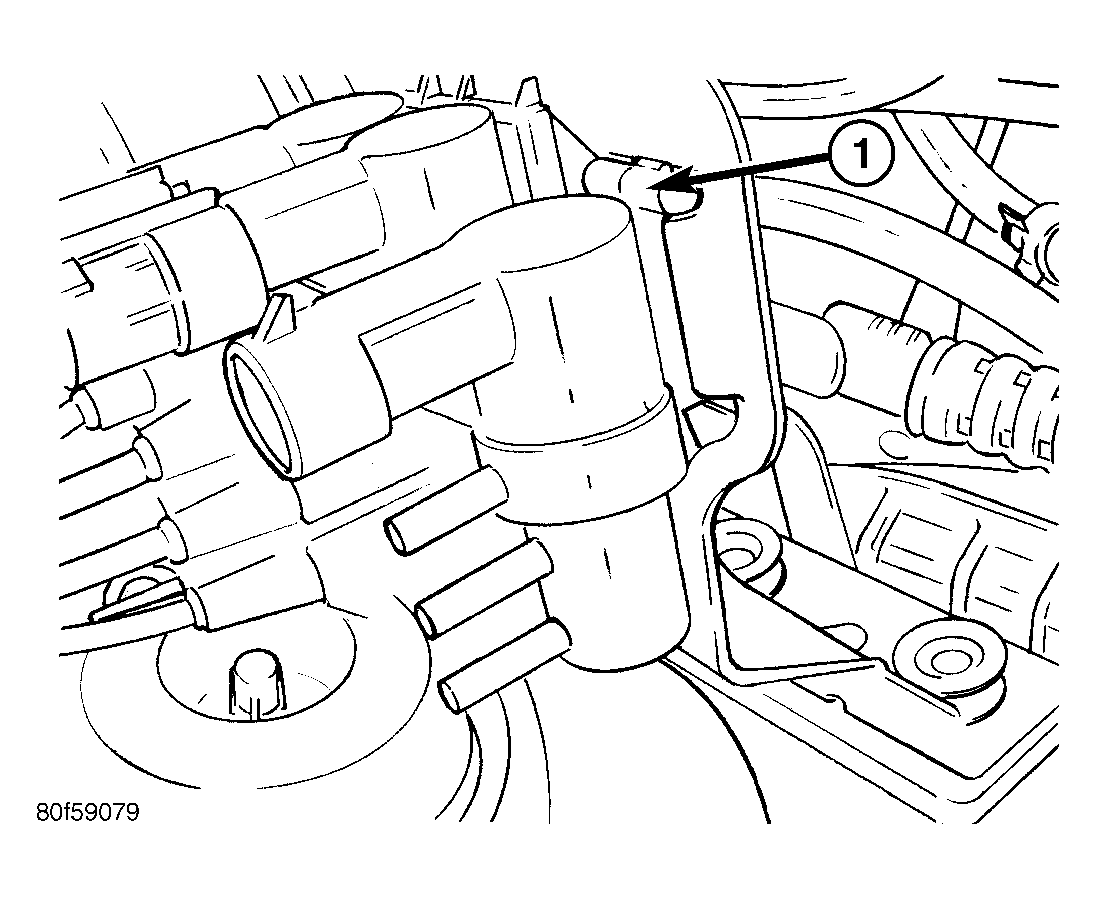

   Fig 2: Solenoid Lock Tab

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - LOCK TAB

4. Push on solenoid lock tab (1) and slide solenoid off bracket.
