Oil Supply Line

Fig 1: Turbocharger Brackets and Heat Shields
GC0019350Courtesy of DAIMLERCHRYSLER CORP.
1 - UPPER/LOWER HEAT SHIELDS
2 - TURBOCHARGER SUPPORT BRACKET
3 - ELBOW
4 - ELBOW SUPPORT BRACKET
  1. Raise vehicle on hoist.
  2. Remove elbow support bracket (4). See Fig 1.

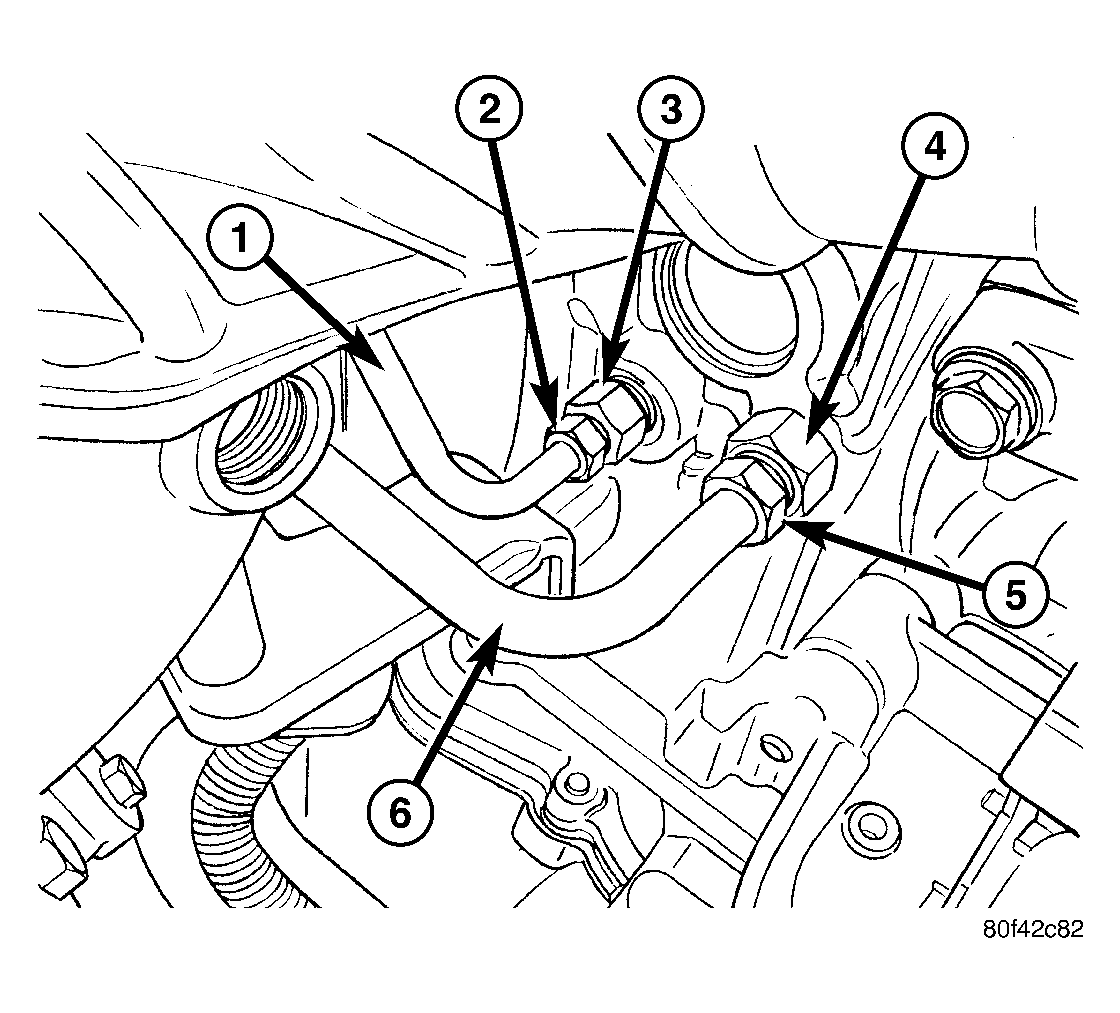

    Fig 2: Oil Supply Line - Engine Block Fitting
    GC0019369Courtesy of DAIMLERCHRYSLER CORP.
    1 - OIL SUPPLY LINE
    2 - FLARED FITTING - 31 N.m (23 ft. lbs.)
    3 - BRASS FITTING - 41 N.m (30 ft. lbs.)
    4 - BRASS FITTING - 41 N.m (30 ft. lbs.)
    5 - FLARED FITTING - 31 N.m (23 ft. lbs.)
    6 - OIL COOLER COOLANT LINE
  3. Disconnect oil supply line (1) flared fitting (2) from brass fitting (3) at engine block. See Fig 2.

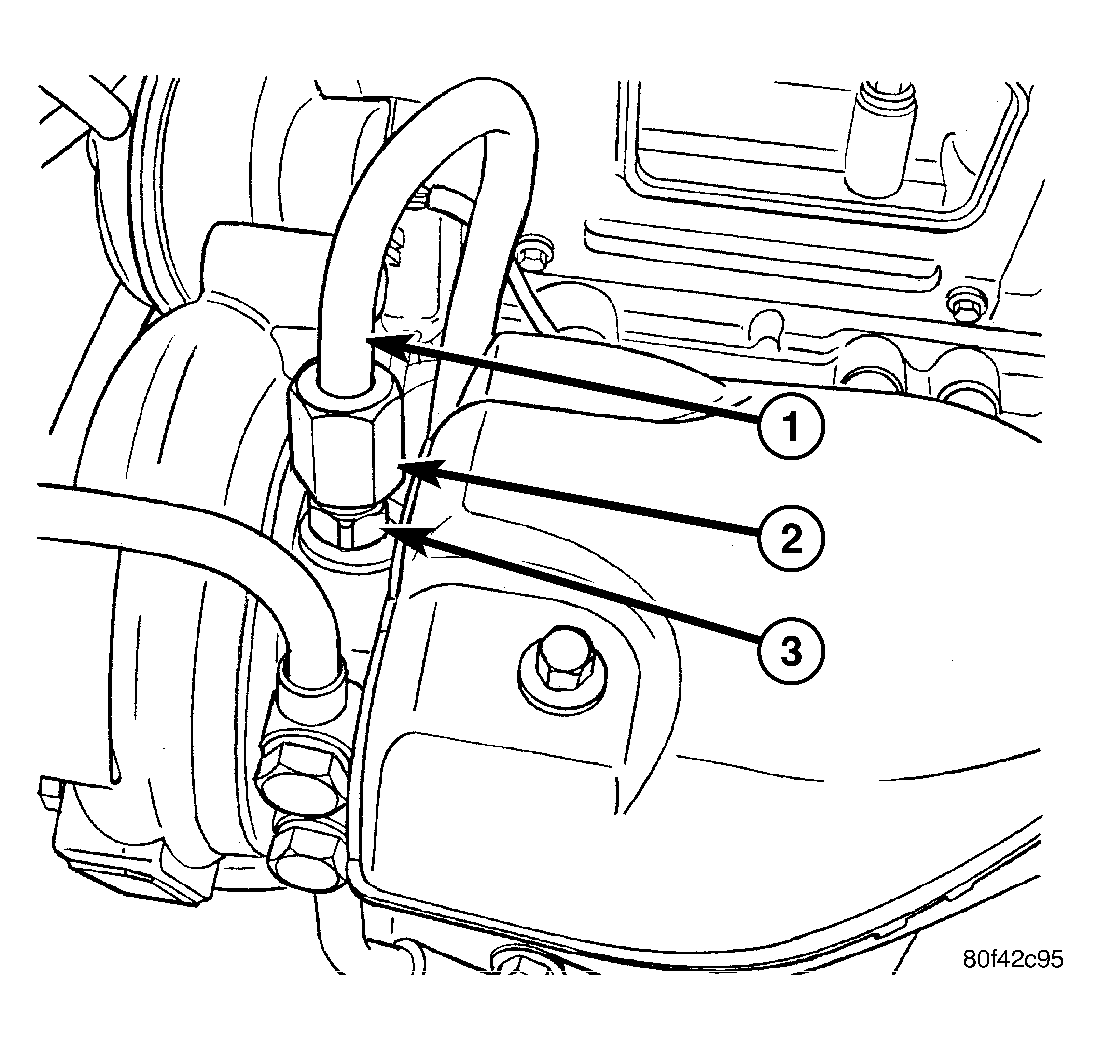

    Fig 3: Oil Supply Line - Turbocharger Fitting
    GC0019370Courtesy of DAIMLERCHRYSLER CORP.
    1 - OIL SUPPLY LINE
    2 - FLARED FITTING - 31 N.m (23 ft. lbs.)
    3 - BRASS FITTING - 41 N.m (30 ft. lbs.)
  4. Lower vehicle.
  5. Disconnect oil supply line (1) flared fitting (2) from brass fitting (3) at turbocharger. See Fig 3.
  6. Remove oil supply line.
