Lines And Hoses: Removal: Notes

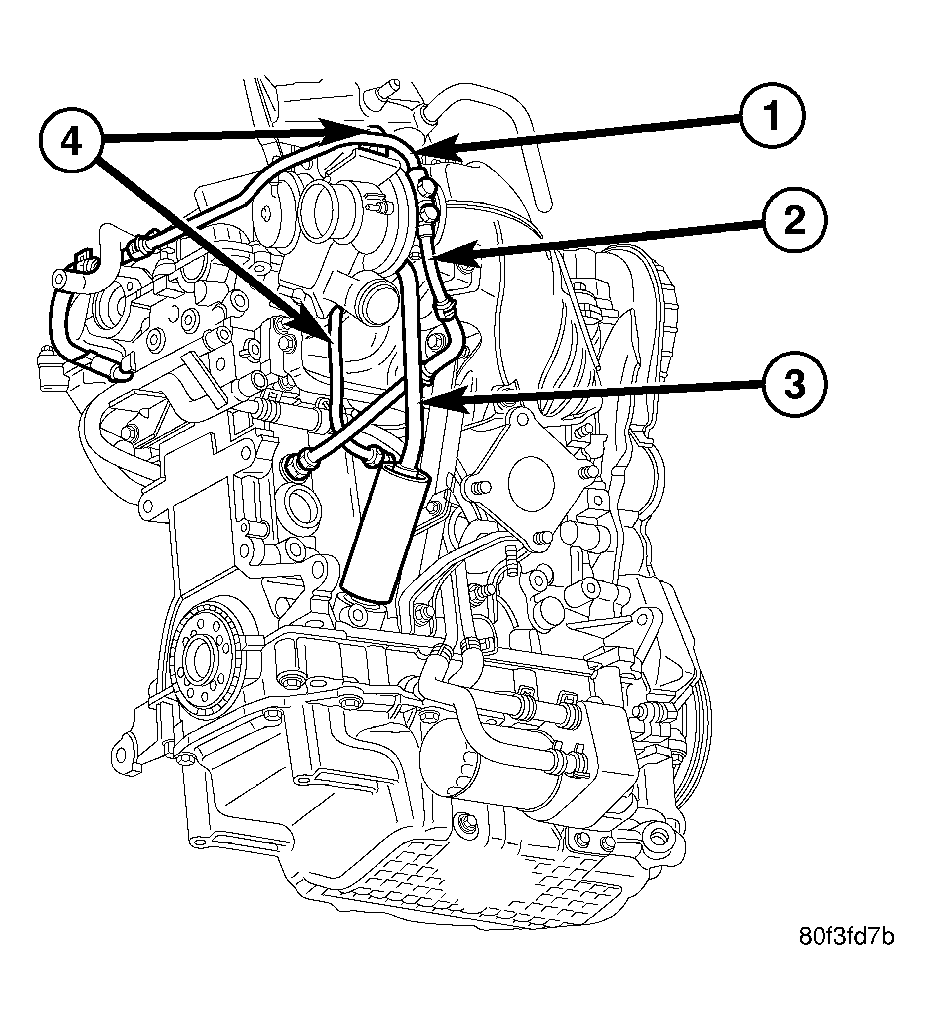

Fig 1: Turbocharger Lines and Hoses

GC0019349

Courtesy of DAIMLERCHRYSLER CORP.

1 - OIL SUPPLY LINE

2 - COOLANT RETURN LINE

3 - COOLANT SUPPLY LINE

4 - OIL RETURN TUBE
