Coolant Supply Line

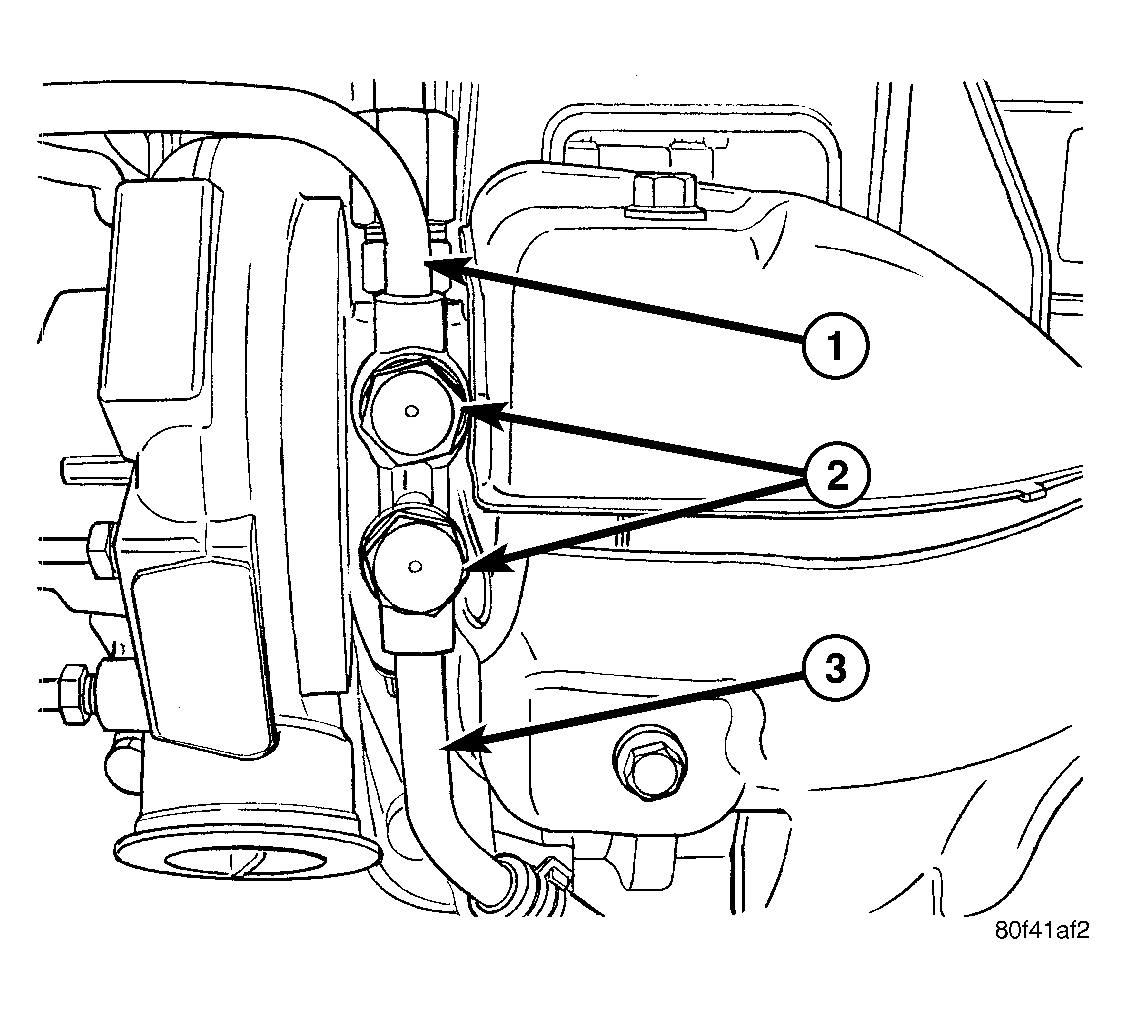

Fig 1: Coolant Lines - Banjo Fittings
GC0019368Courtesy of DAIMLERCHRYSLER CORP.
1 - COOLANT RETURN LINE
2 - BANJO BOLTS - 30 N.m (22 ft. lbs.)
3 - COOLANT SUPPLY LINE
  1. Raise vehicle on hoist.
  2. Drain cooling system, (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
  3. Remove banjo bolt (2) from coolant supply line (3) at turbocharger. See Fig 1.

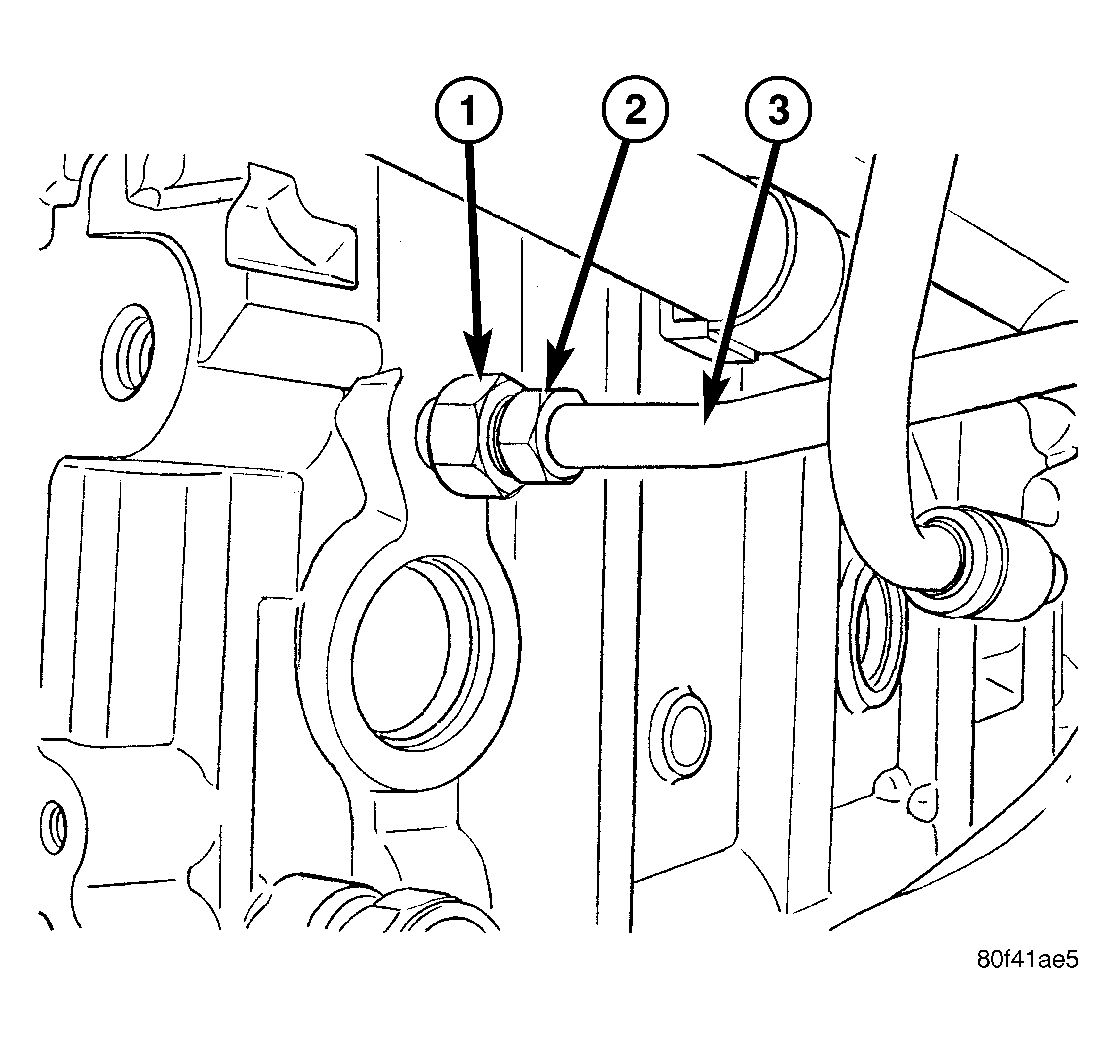

    Fig 2: Coolant Supply Line - Engine Block Fitting
    GC0019367Courtesy of DAIMLERCHRYSLER CORP.
    1 - BRASS FITTING - 41 N.m (30 ft. lbs.)
    2 - FLARED FITTING - 31 N.m (23 ft. lbs.)
    3 - COOLANT SUPPLY LINE
  4. Disconnect coolant supply line (3) flared fitting (2) from brass fitting (1) at engine block. See Fig 2.
  5. Remove coolant supply line.
