Description - Exhaust System

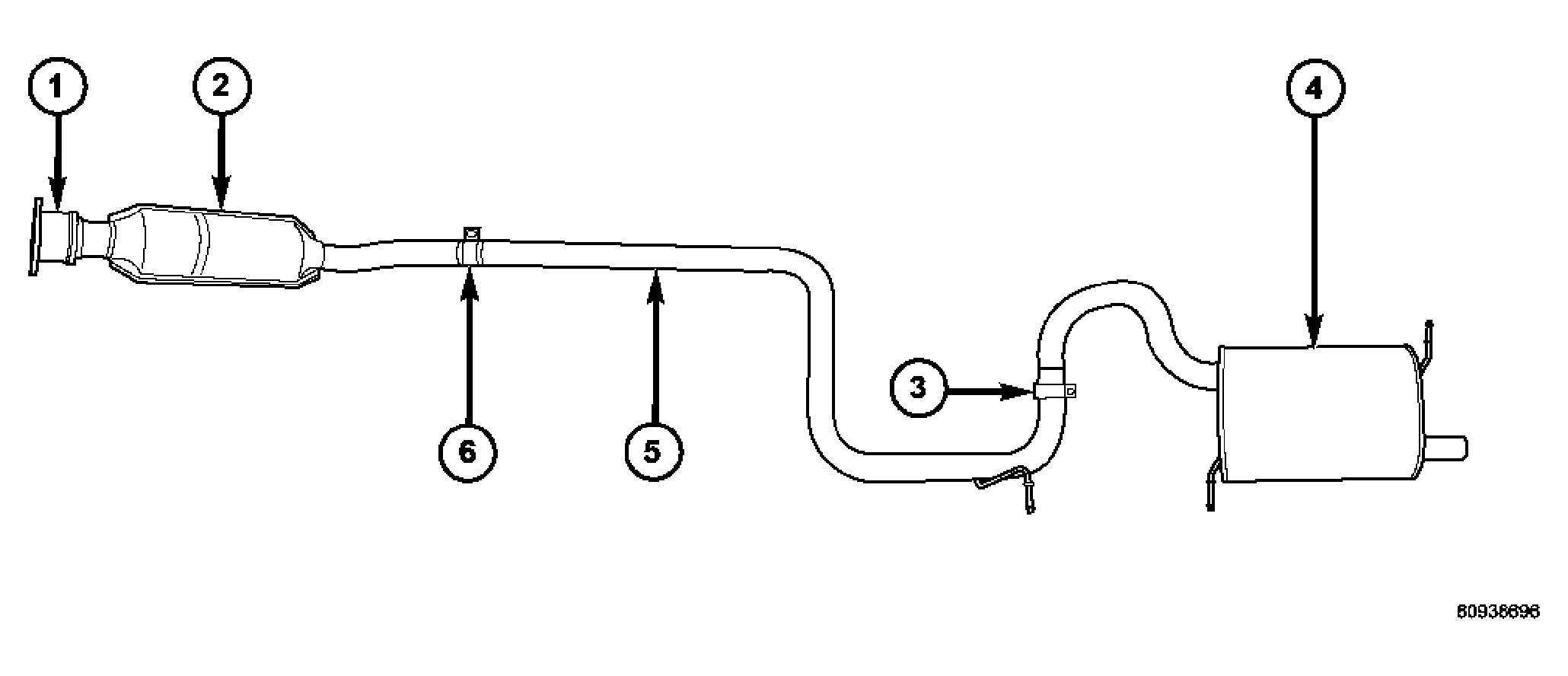

Fig 1: Exhaust System Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - FLEX PIPE

2 - CATALYTIC CONVERTER

3 - BAND CLAMP

4 - MUFFLER

5 - INTERMEDIATE PIPE

6 - BAND CLAMP

The exhaust system components consist of a flex pipe (1), catalytic converter (2), intermediate pipe (5), muffler (4), clamps (3,6) and support isolators. See Fig 1.
